Features and Benefits:
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall & Extra Wide
- 24" Extended Length
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Rubber Wheel Chocks Included (1 PR)
- Alignment Kit Included (Slip Plates, Ramps, Spacers)
- Heavy Duty Turntables Included
- Mounting Hardware Included
- 8,000 lb. Capacity of Jacks
- Jacks Air/Hydraulic Operated
- 4 Piece Truck Adapter Set Included w/ each Jack
- Capacity: 14,000 lbs.
- Lifting Height, Top Lock: 68 1/2" (5' 8 1/2")
- Overall Width (w/ Motor): 141 1/2" (11' 9 1/2")
- Overall Length (w/ Approach Ramps): 277" (23')
- Runway Length: 229" (19' 1")
- Length Between Columns: 213 3/4" (17' 9 3/4")
- Runway Width: 20"
- Width Between Runways: 42 1/2" - 46 1/2"
- Outside Runway to Outside Runway: 62 1/2" - 66 1/2"
- Width Between Columns: 114 3/4" (9' 6 3/4")
- Drive Thru: 100" (8' 4")
- Height of Columns: 89" (7' 5")
- Clearance Under Runways, Top Lock: 61 1/2" (5' 1 1/2")
- Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Electrical Requirement: 220V - Single (1) Phase.- 30 amp breaker recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Jack Minimum Width: 40"
- Jack Maximum Width: 66 1/2"
- Maximum Lifting Height (w/ Adapters): 30
- Adapter Heights: 2 Each 2.5", 5"
- Combined Shipping Weight 4600 lbs.

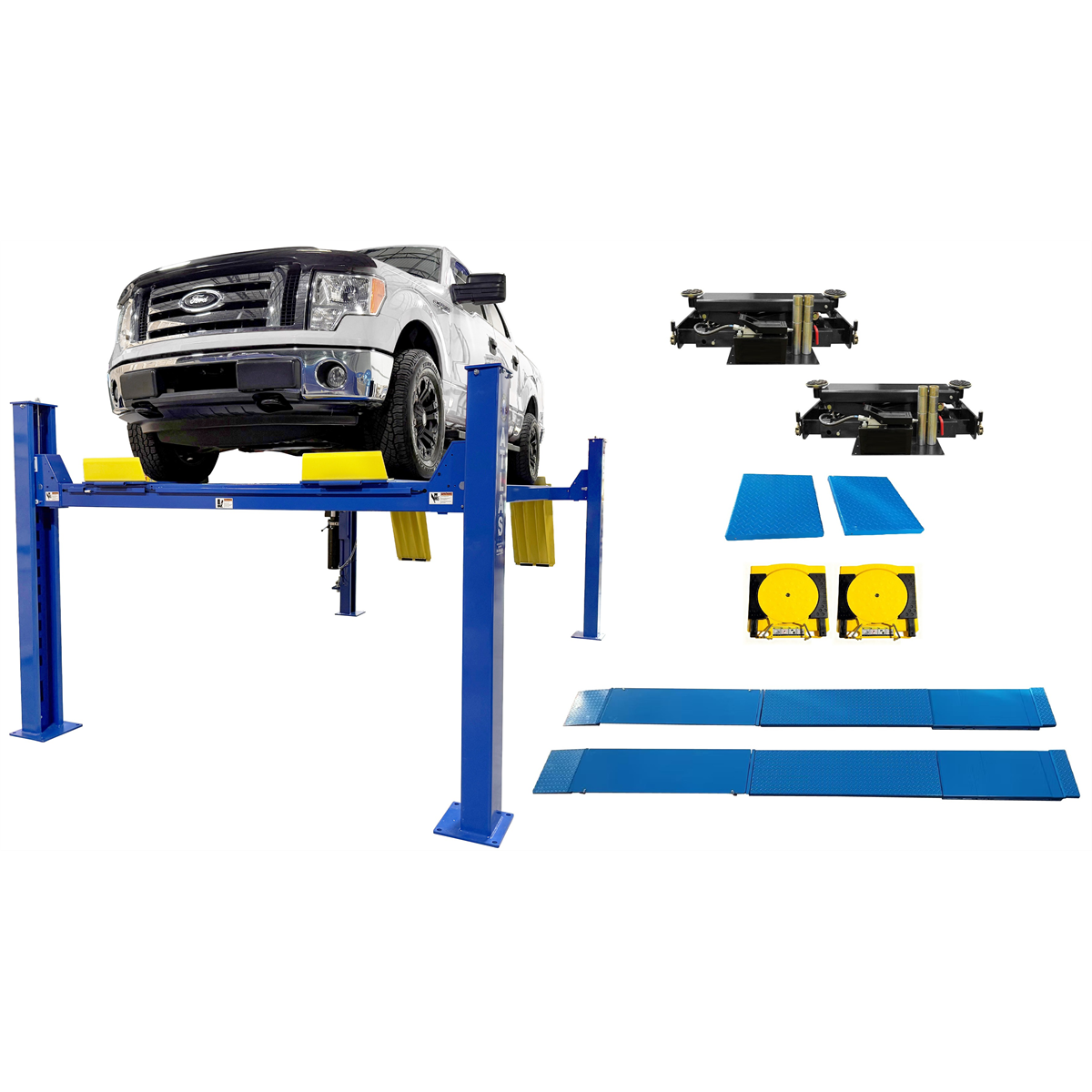

The Atlas® Pro14KCF-EXT Heavy Duty Commercial 4-Post lift incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. Also, this lift comes standard with extra long (an additional 2 foot) runways to handle even the longest vehicles.The Atlas® Pro14KCF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings".This combo includes the Atlas® Pro14KCF-EXT, a complete alignment kit (including slip plates and turntables, and two Atlas® RJ8A rolling bridge jacks.
