Features and Benefits:
- Color: Red/Black
- Product Type: Engine Crane
- Power Type: Hydraulic
- Operation Type: Manual
- Hydraulic Unit Type: Dual Pump Quick Lift
- Capacity: 3 Tons
- Base Width Rear: 32.8"
- Base Width Front When Retracted: 23"
- Base Length When Retracted: 59.4"
- Base Width Front When Extended: 38.7"
- Base Length When Extended: 90.9"
- Boom Length: 34" to 58.9"
- Boom Position 1 Length: 34.1"
- Boom Position 2 Length: 42.3"
- Boom Position 3 Length: 50.6"
- Boom Position 4 Length: 58.9"
- Boom Position 1 Minimum Height: 15.7"
- Boom Position 2 Minimum Height: 9.4"
- Boom Position 3 Minimum Height: 0"
- Boom Position 4 Minimum Height: 0"
- Boom Position 1 Maximum Height from Hook: 72.7"
- Boom Position 2 Maximum Height from Hook: 77.2"
- Boom Position 3 Maximum Height from Hook: 81.6"
- Boom Position 4 Maximum Height from Hook: 86.1"
- Boom Position 1 Weight Capacity: 3 Tons
- Boom Position 2 Weight Capacity: 2 Tons
- Boom Position 3 Weight Capacity: 1.5 Tons
- Boom Position 4 Weight Capacity: 1 Tons
- Weight: 364 bs.
- Special Features: Extendable Legs|Dual Pump Piston|360° Hook|6 Swivel Casters|Overload By-Pass

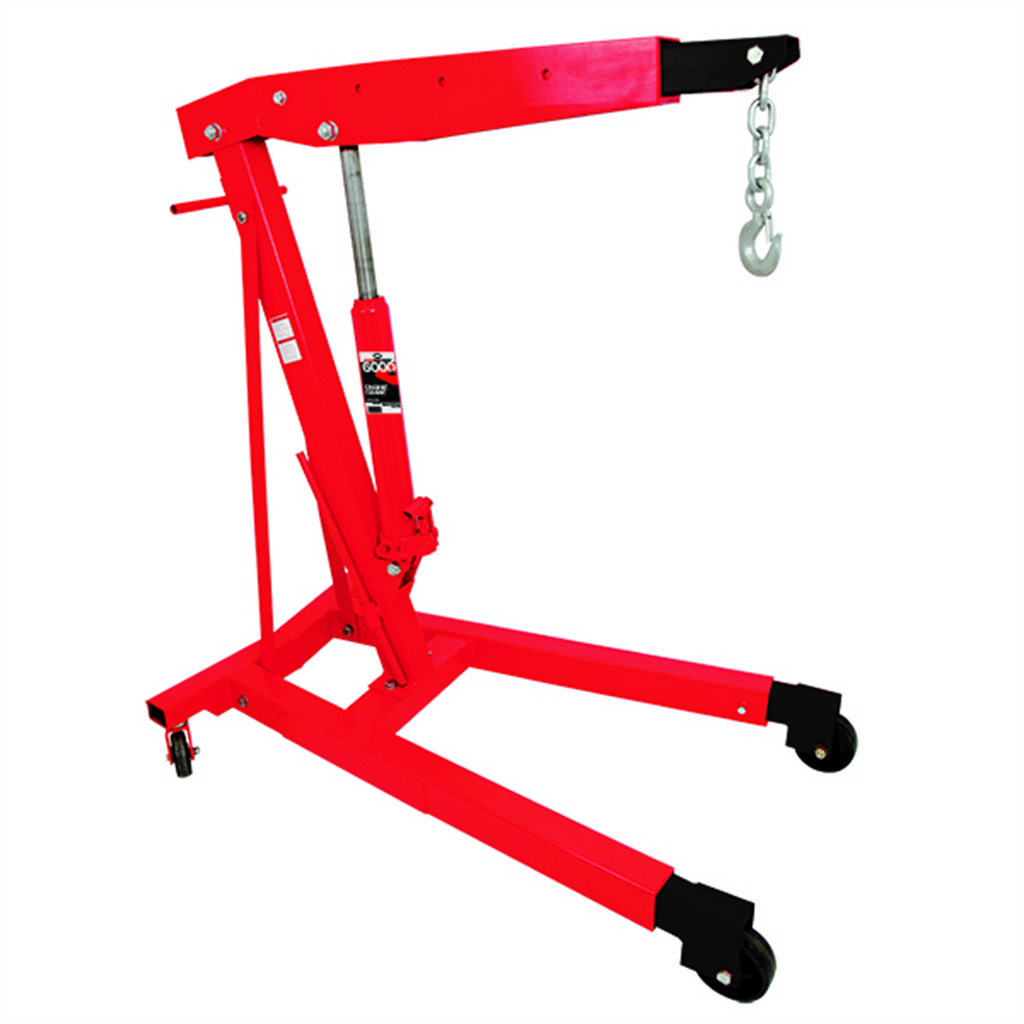

- Warranty: 1 YearAmerican Forge & Foundrys Engine Cranes are designed for easy and efficient removal and transport of vehicle engines. Each feature four position telescopic booms, wide stable bases, forged steel hooks with safety latches, and heavy-duty swivel casters. Stands are available to help position the engine for optimal work.
- Capacity: 6,000 Lbs.
- Designed to raise, lower, and transport engines, differentials, transmissions and other heavy loads with speed and ease
- Dual pump pistons increases lifting speed by up to 25% over traditional designs
- Heavy Duty engine crane with reinforced leg assemblies for added strength and durability.
- 4 different boom settings: 3 T, 2 T, 1.5T, 1T.
- Hydraulic ram has built in safety overload to protect the unit from being used beyond its rated capacity.
- Large 4.25” rear swivel casters and 6” fixed front wheels provide ease of mobility and positioning.
- Rear of crane stands 61.5” tall and 33” wide.
- Distance between front of legs, retracted - 23”, extended - 28.5”.
American Forge & Foundrys Engine Cranes are designed for easy and efficient removal and transport of vehicle engines. Each feature four position telescopic booms, wide stable bases, forged steel hooks with safety latches, and heavy-duty swivel casters. Stands are available to help position the engine for optimal work.American Forge & Foundrys Engine Cranes are designed for easy and efficient removal and transport of vehicle engines. Each feature four position telescopic booms, wide stable bases, forged steel hooks with safety latches, and heavy-duty swivel casters. Stands are available to help position the engine for optimal work.
