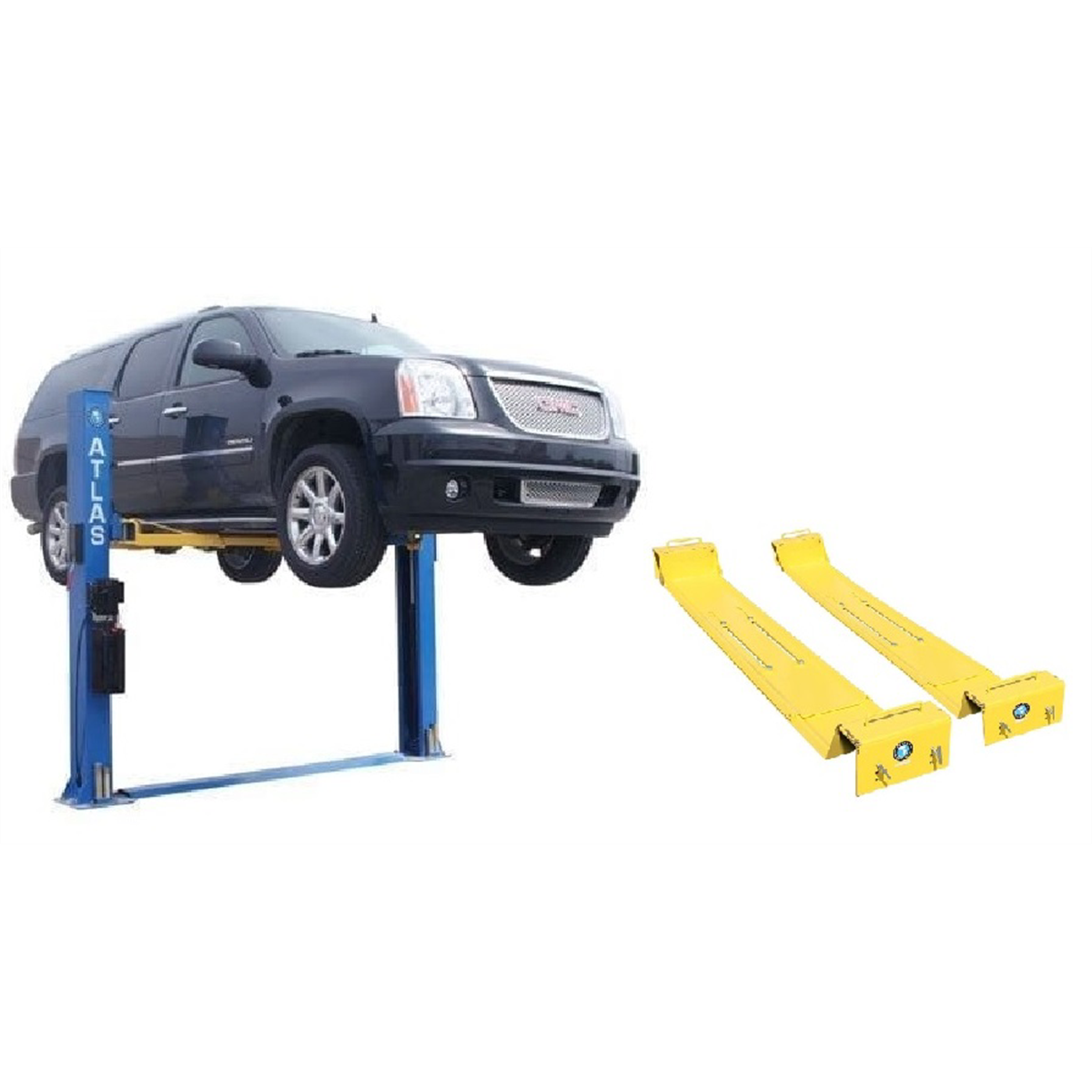

Atlas Automotive Equipment Atlas Equipment BP8000 2-Post Lift + Lawn Mower Adapter Combo (WILL CALL)
Roll over image to zoom in Click on image to zoom
Atlas Automotive Equipment Atlas Equipment BP8000 2-Post Lift + Lawn Mower Adapter Combo (WILL CALL)

Atlas Automotive Equipment Atlas Equipment BP8000 2-Post Lift + Lawn Mower Adapter Combo (WILL CALL)

Atlas Automotive EquipmentSKU: ATEATTD-BP8-COMBO

Features and Benefits:

  • Combo includes BP8 8,000 lb. capacity lift and Lawn Mower Adapter
  • Hobbyist Grade Lift ‐ Not intended for heavy commercial use
  • Baseplate, Open-Top Style Lift

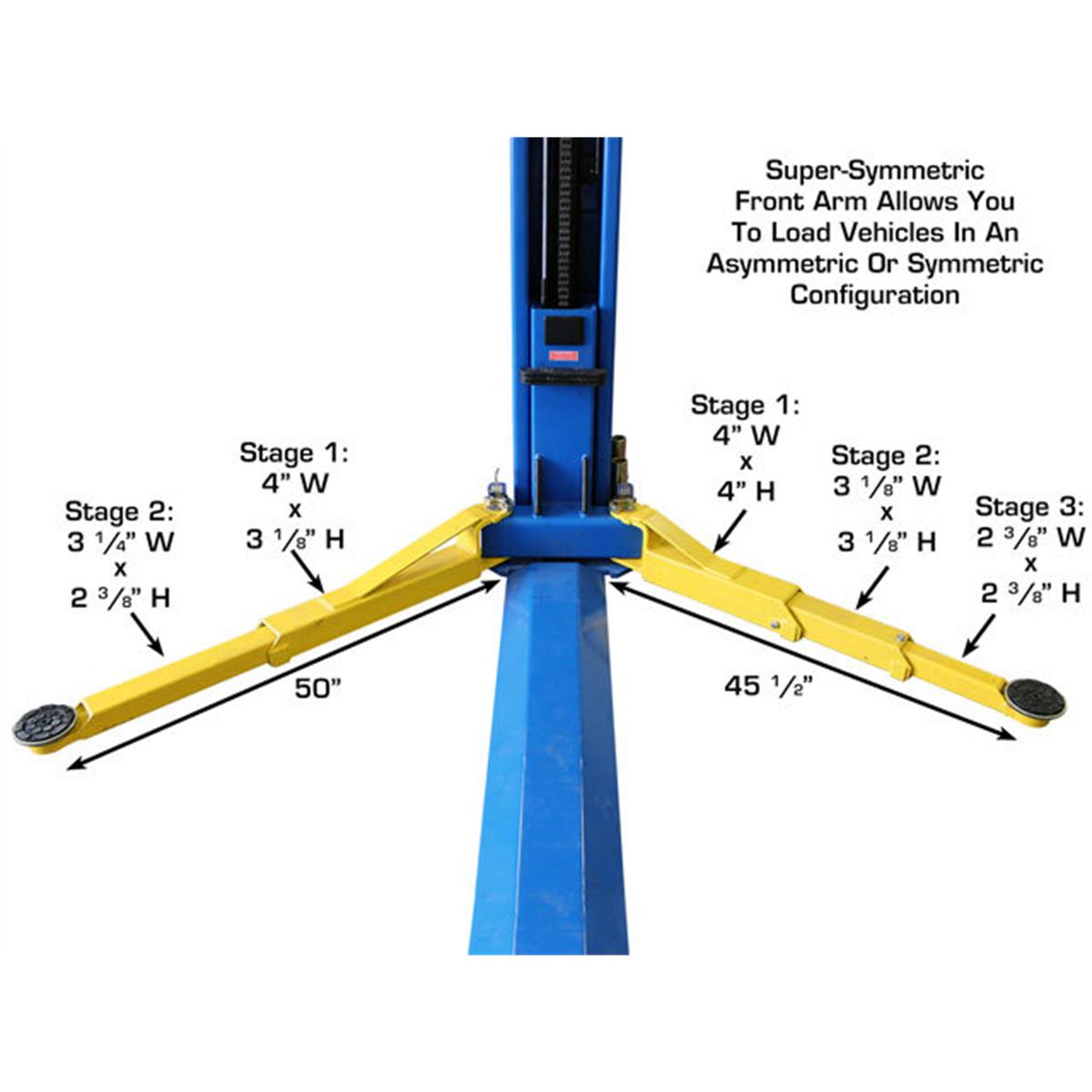

  • 3-Stage front arms/2-Stage rear arms

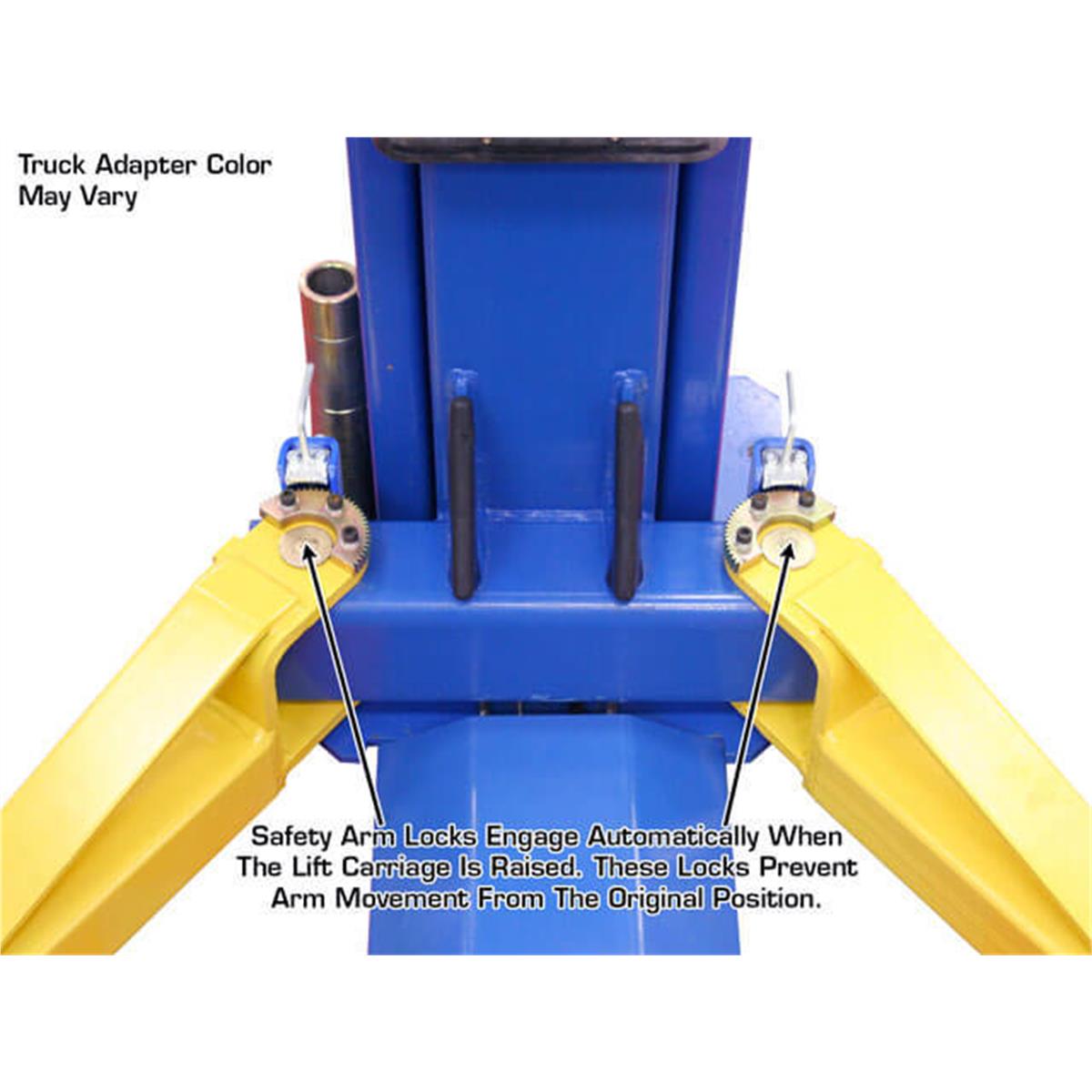

  • Automatic Arm Restraints

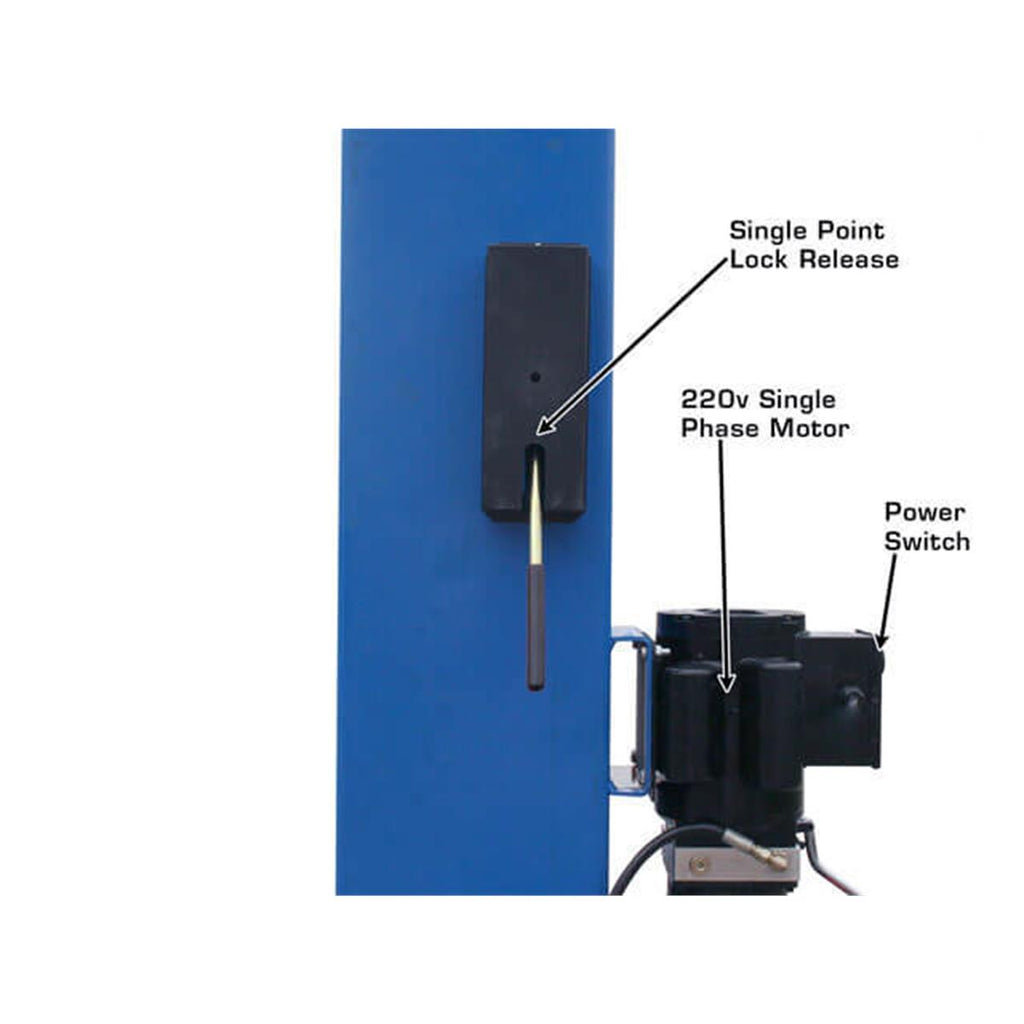

  • Single-Point Lock Release
  • Double Safety Lock System

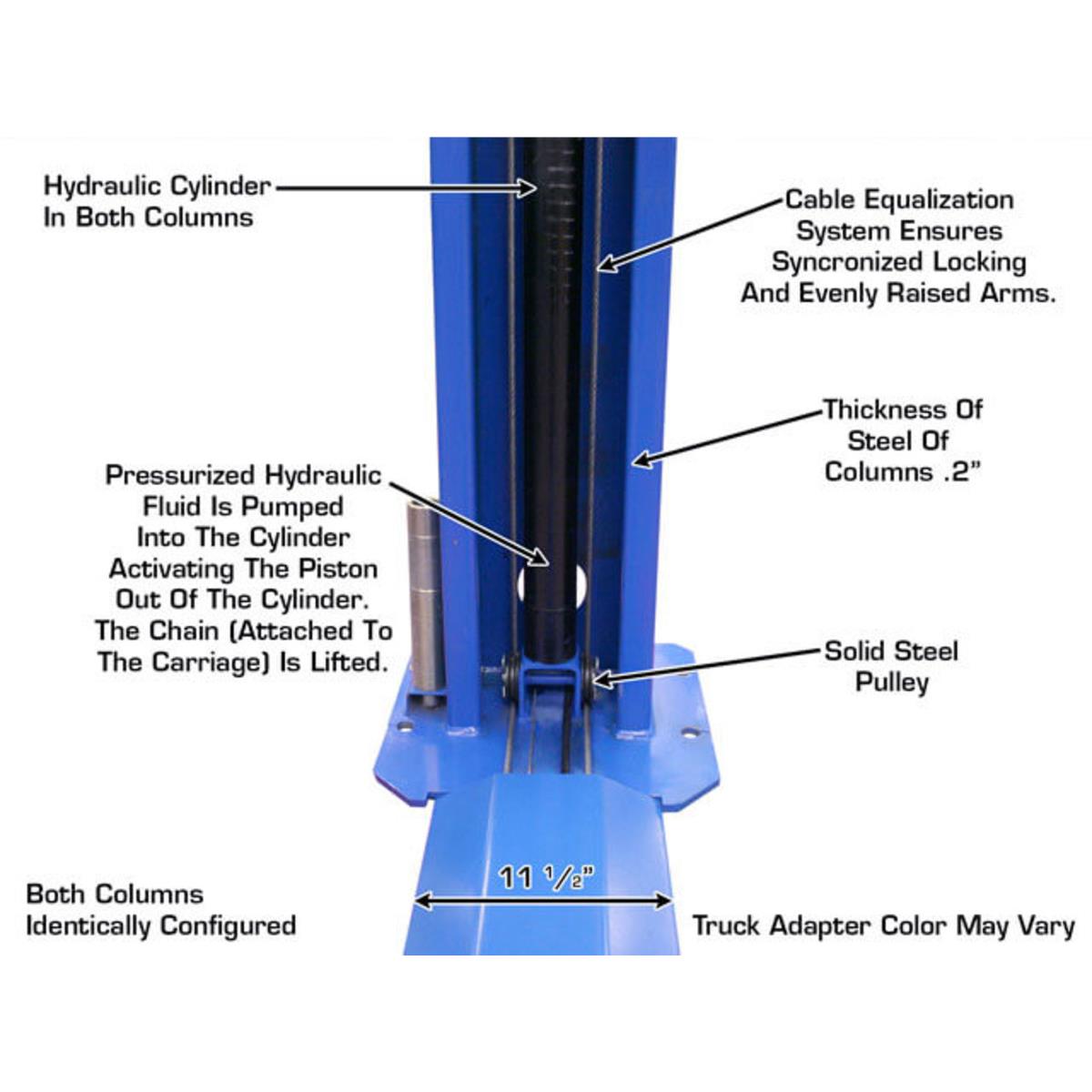

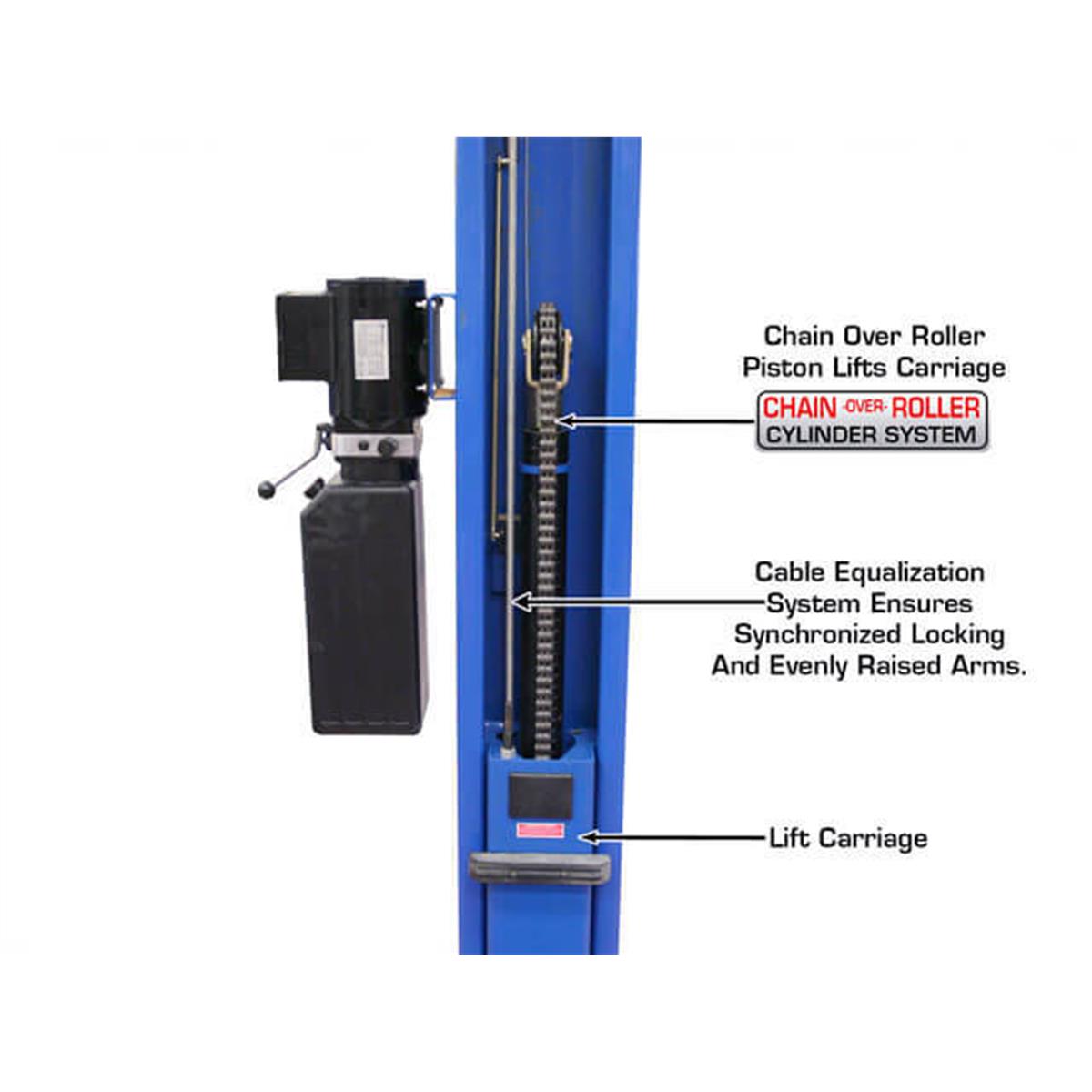

  • Dual Hydraulic Chain-Drive Cylinders

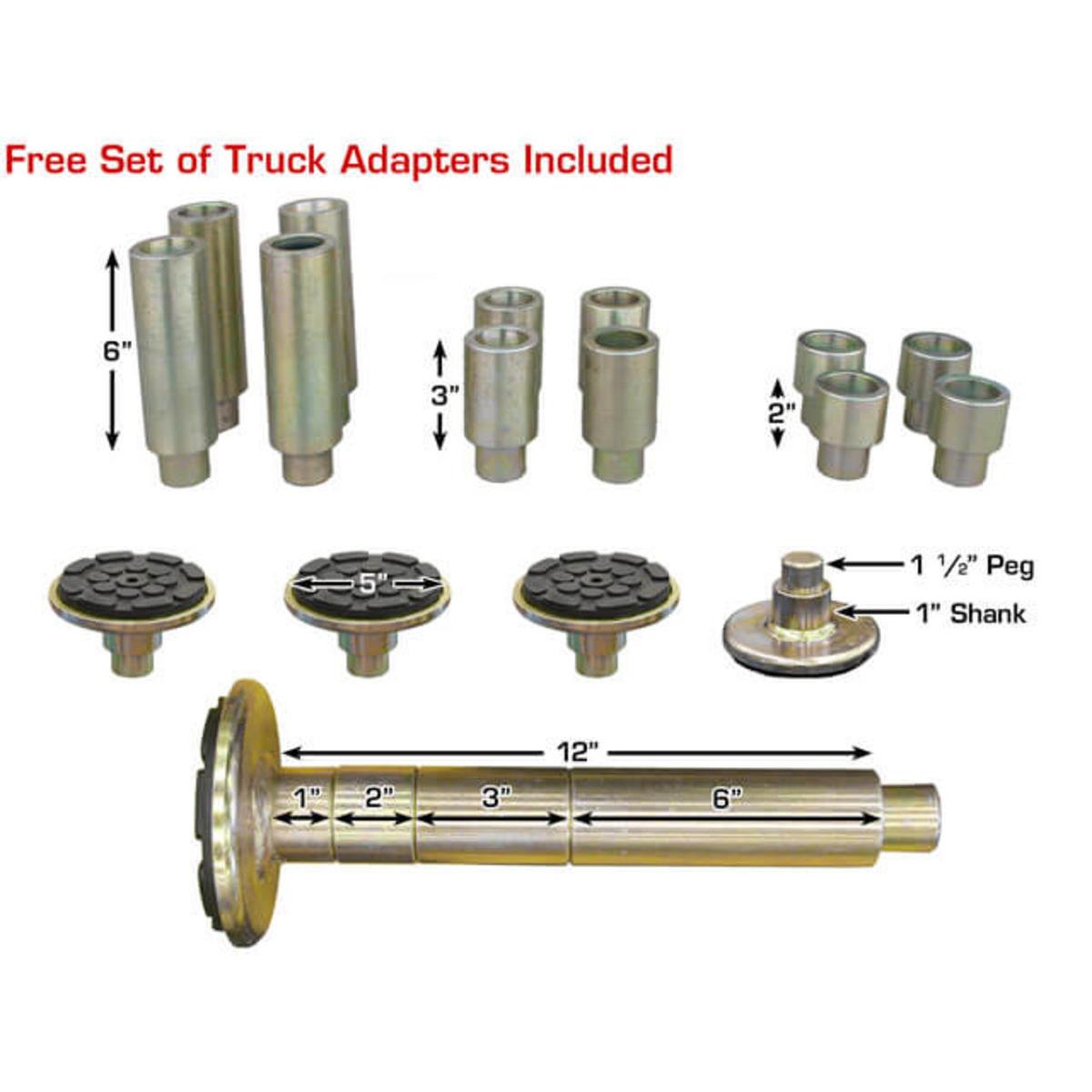

  • Free 12 Piece Truck Adapter Set
  • Mounting Hardware Included
  • This part number WILL CALL ONLY

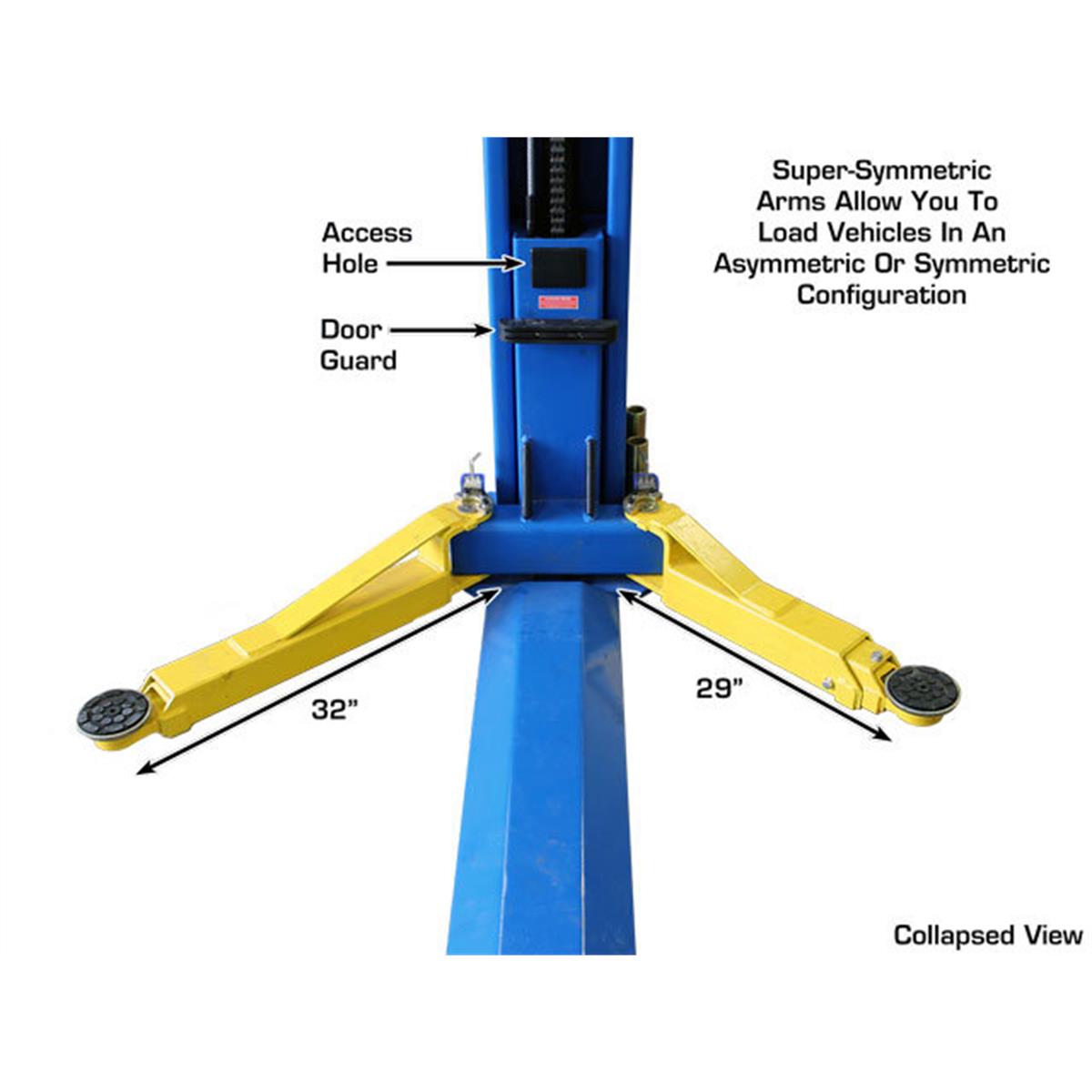

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.

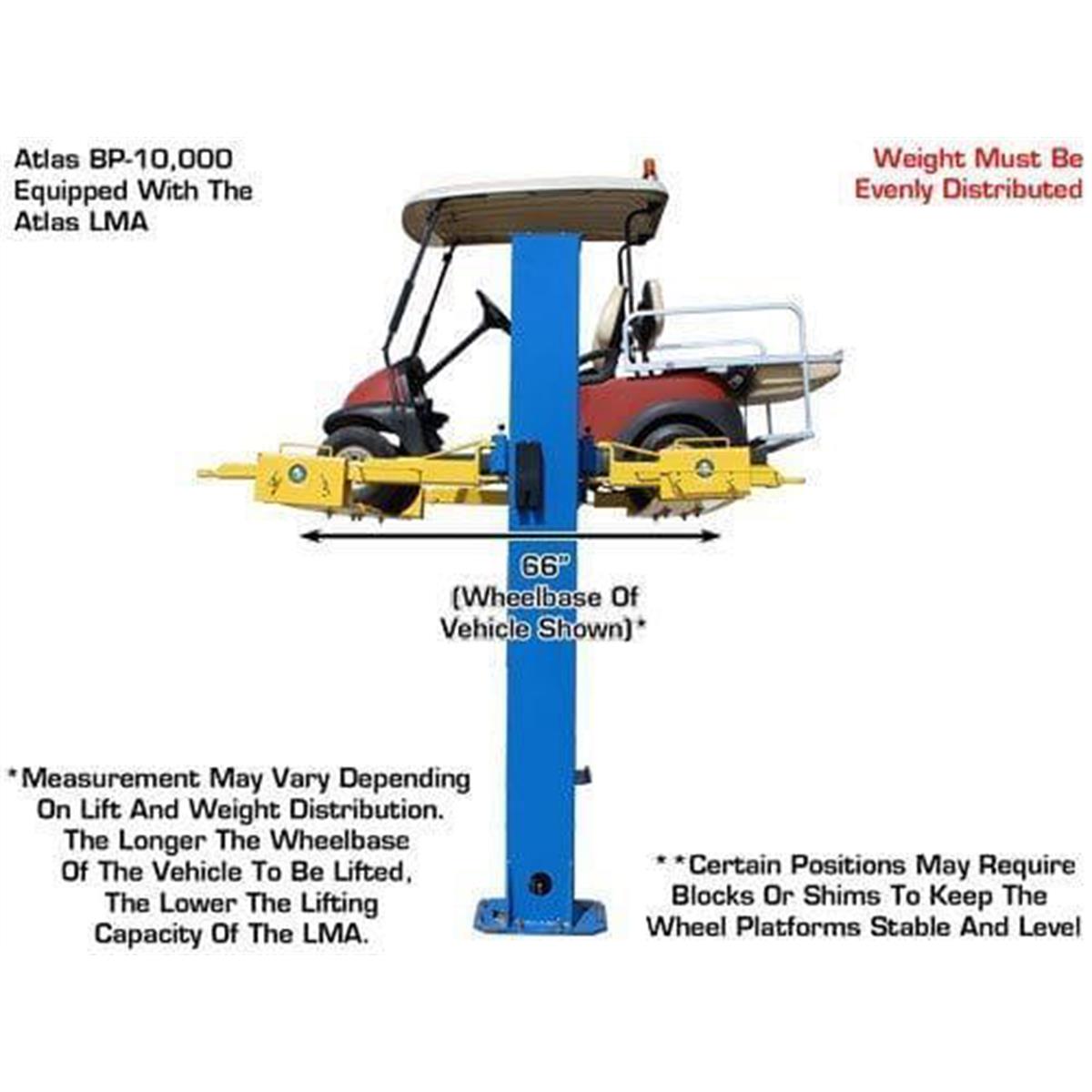

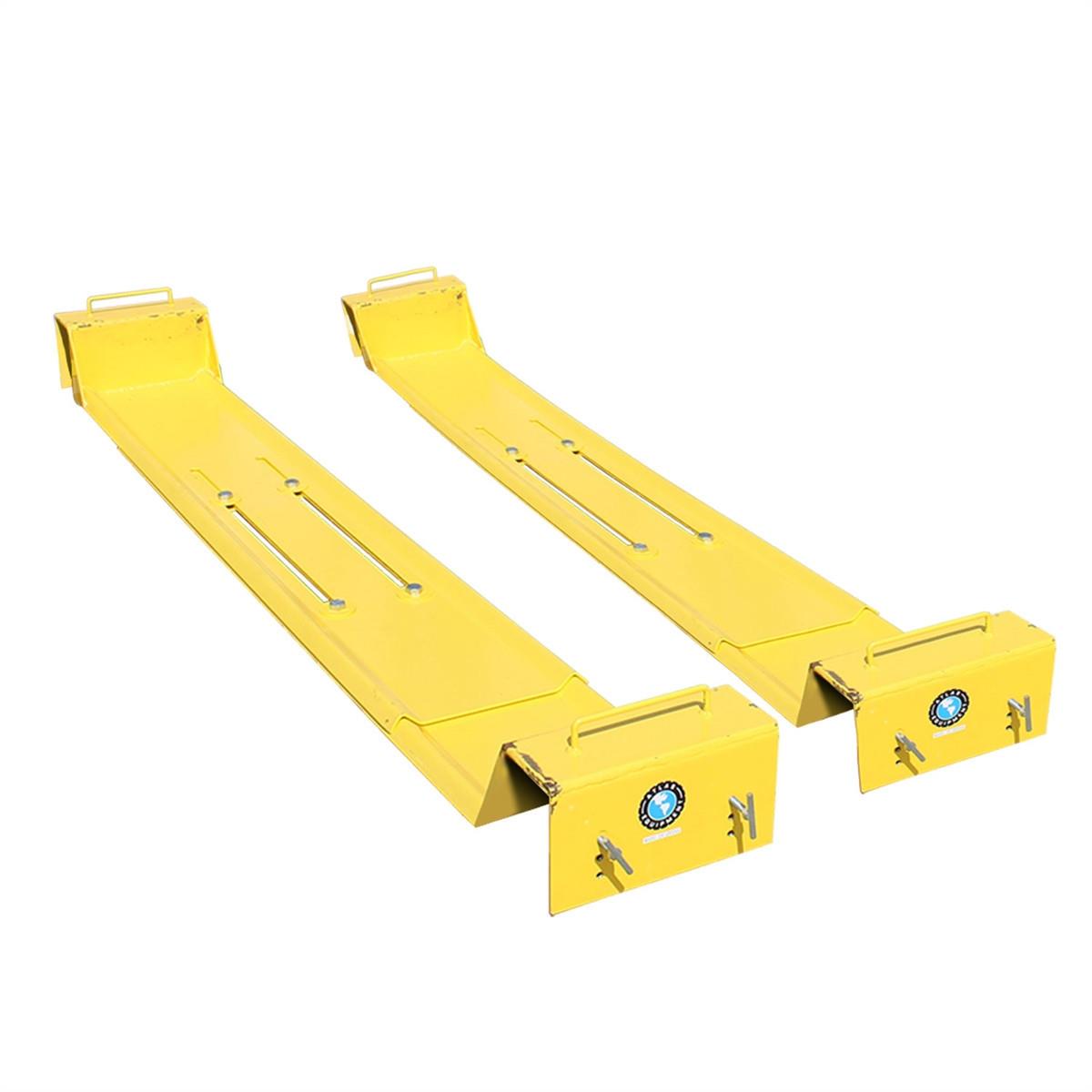

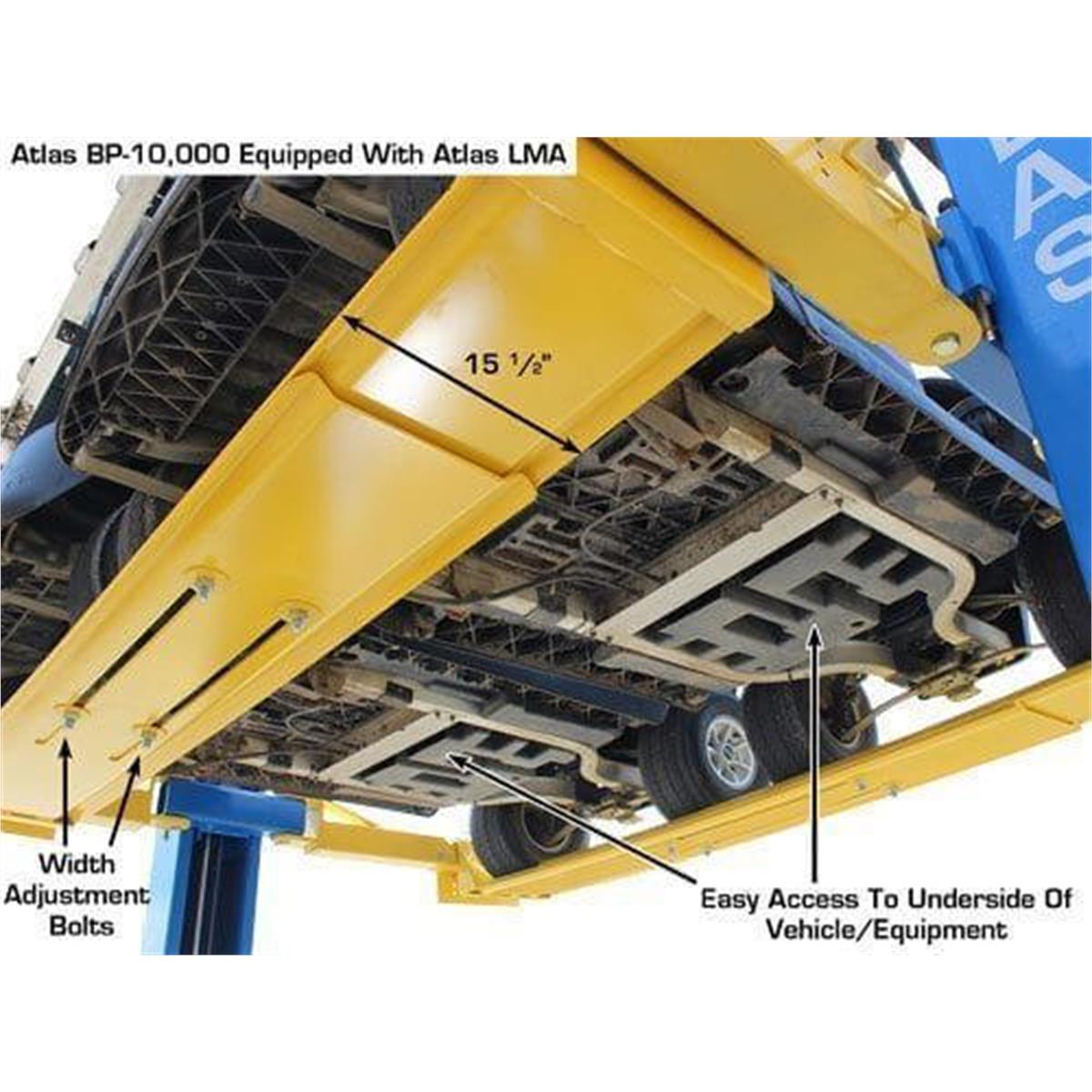

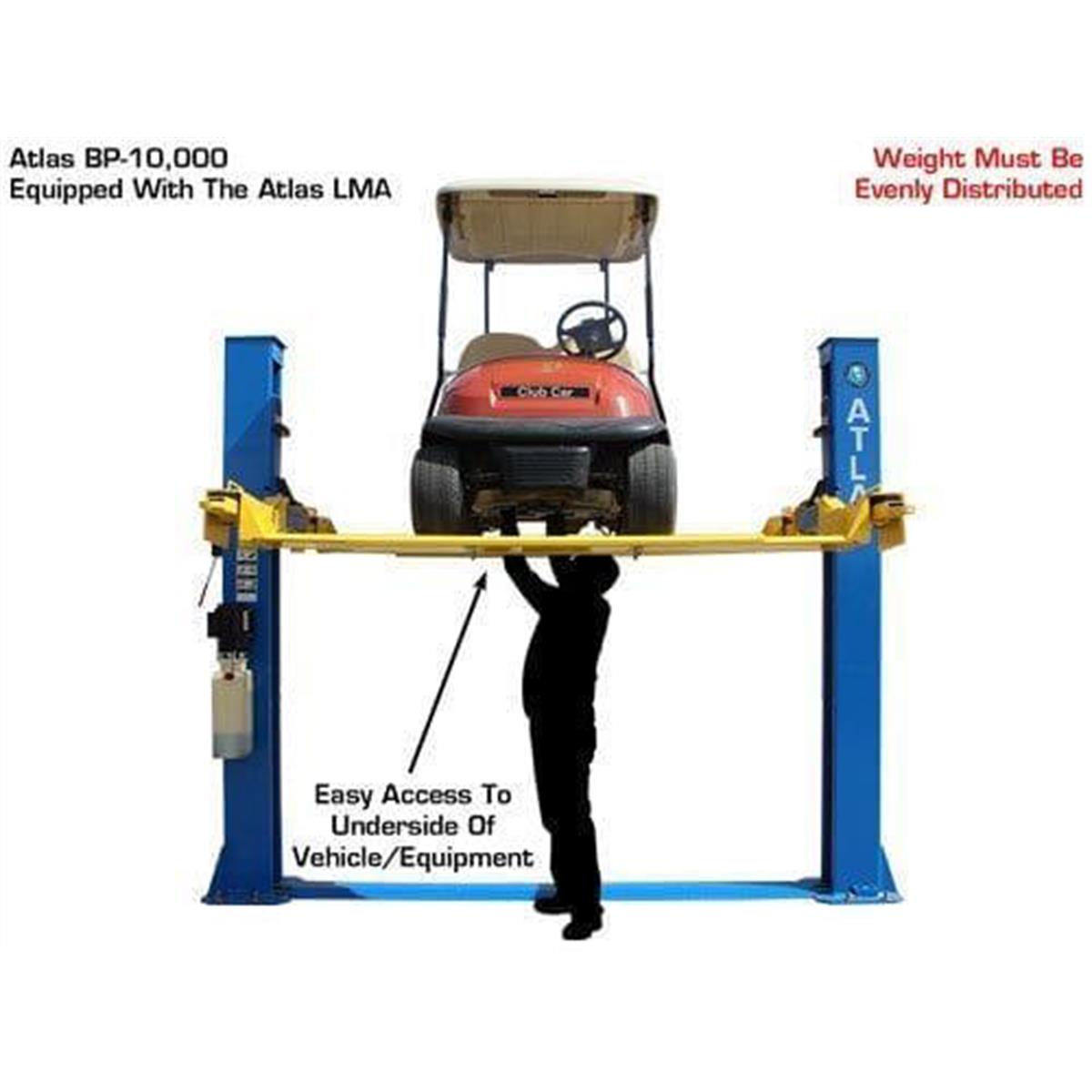

This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the BP8000 is less then 8,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.

Atlas® ATTD-BP8000 Specifications

  • Capacity 8,000 LB.
  • Overall Height 108" (9)
  • Overall Floor Width 132" (11)
  • Outside Column to Outside Column 124" (10 4")
  • Maximum Lift Height (Without Adapters) 75 1/2"
  • Maximum Lift Height (With Adapters) 86 1/2"
  • Minimum Arm Height 4"
  • Inside Column 109 1/8” (9 1 1/8”)
  • Drive Thru 99” (8 3”)

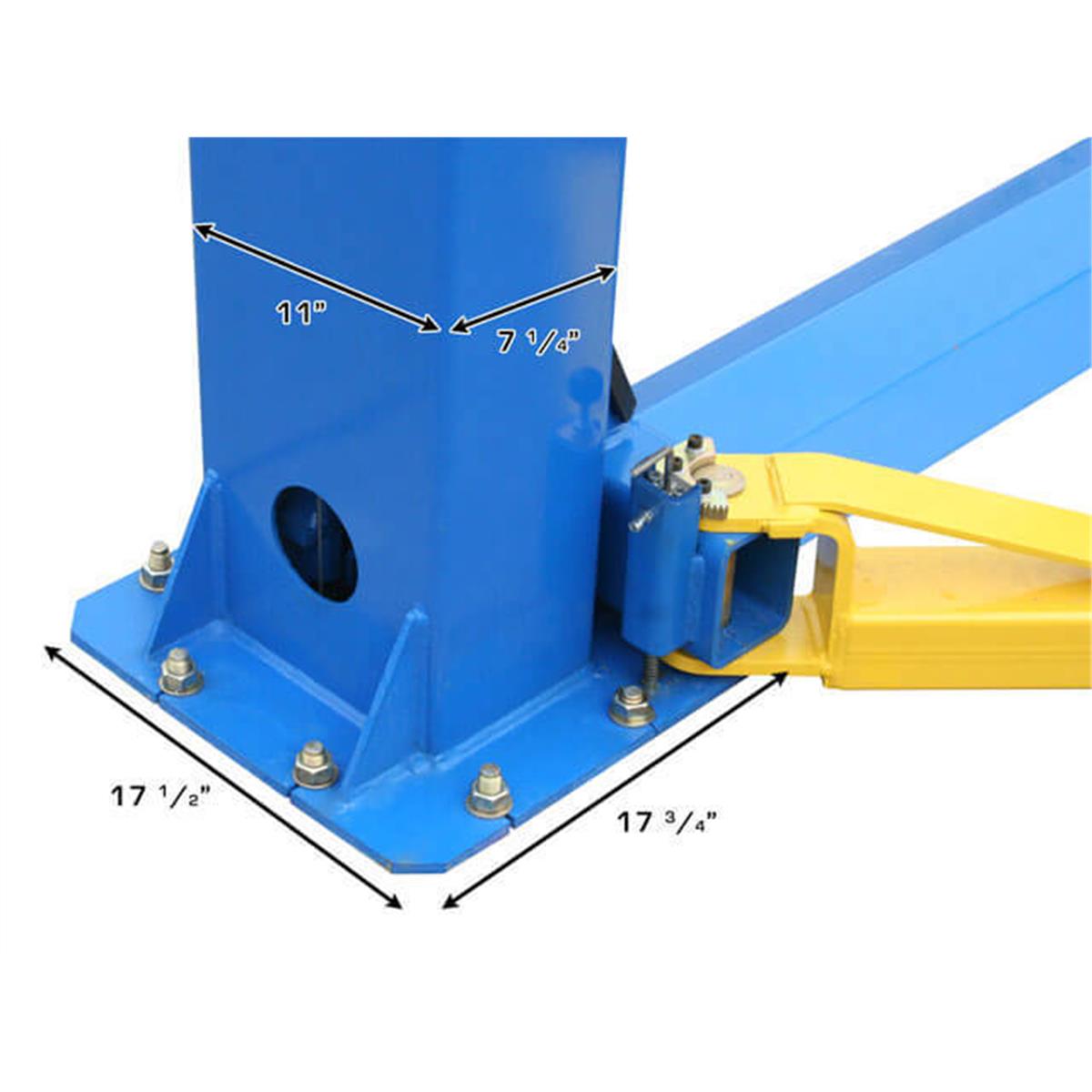

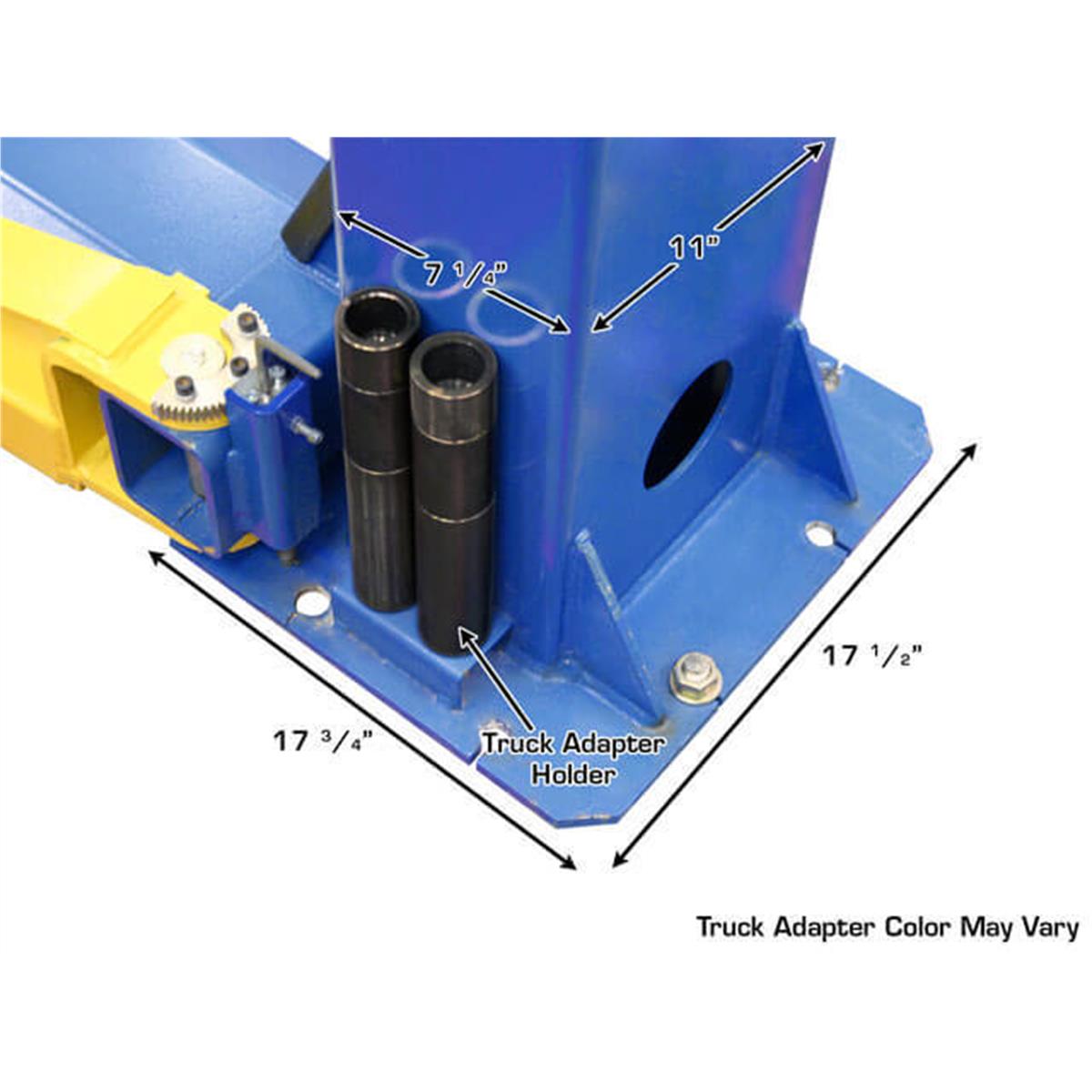

  • Column Size 7 1/4" x 11"
  • Column Thickness of Steel 6mm
  • Base Of Lift 17 1/2" x 17 3/4"

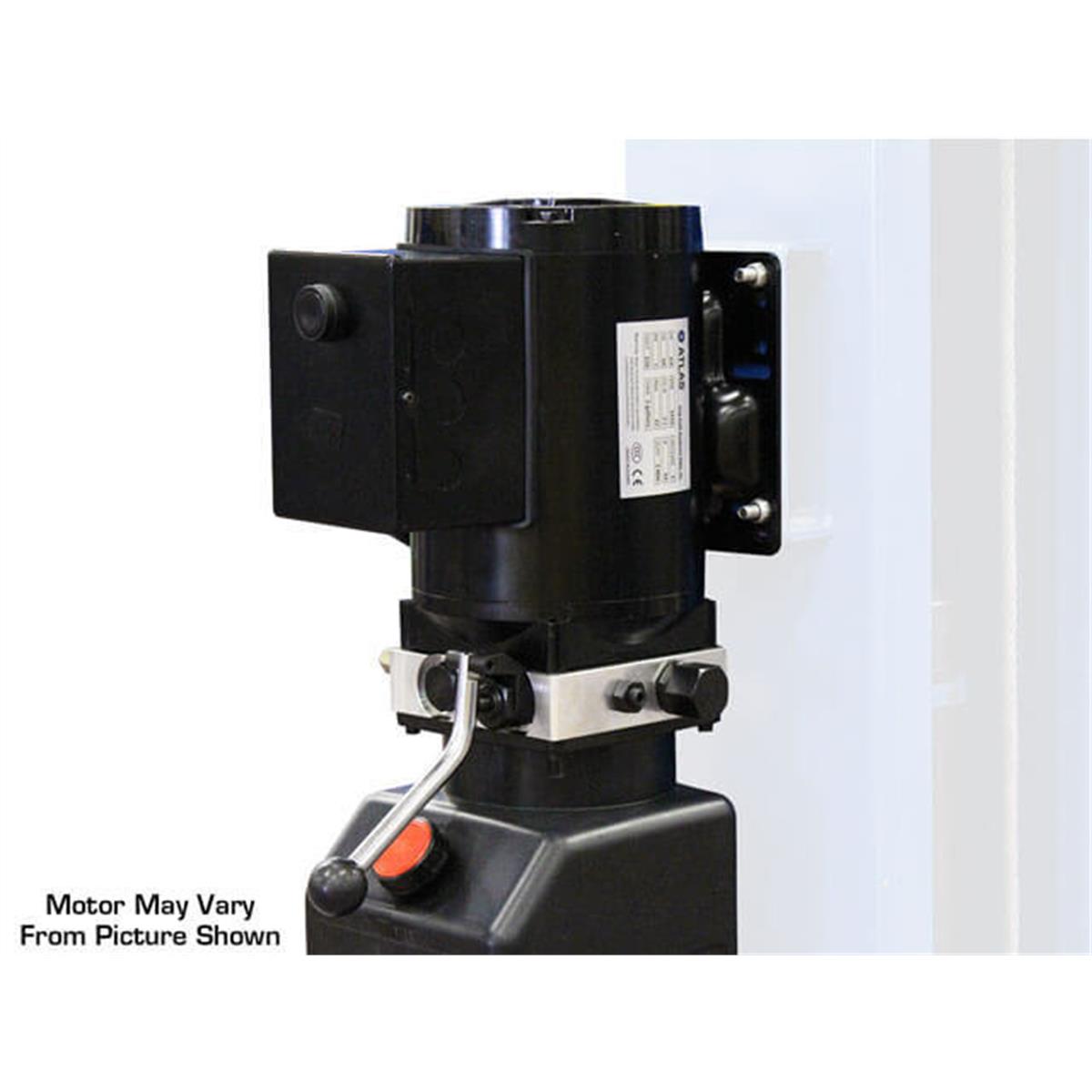

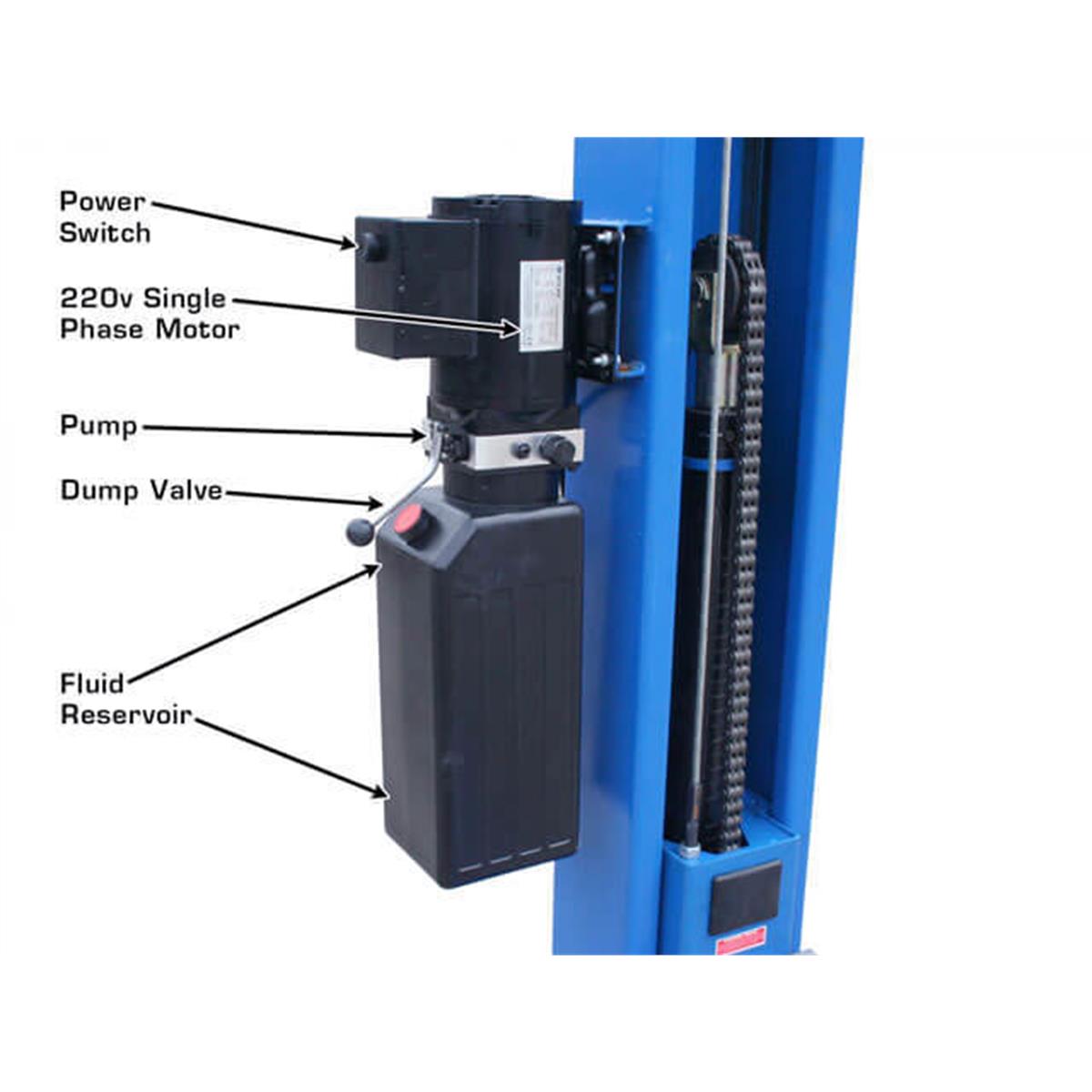

  • Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

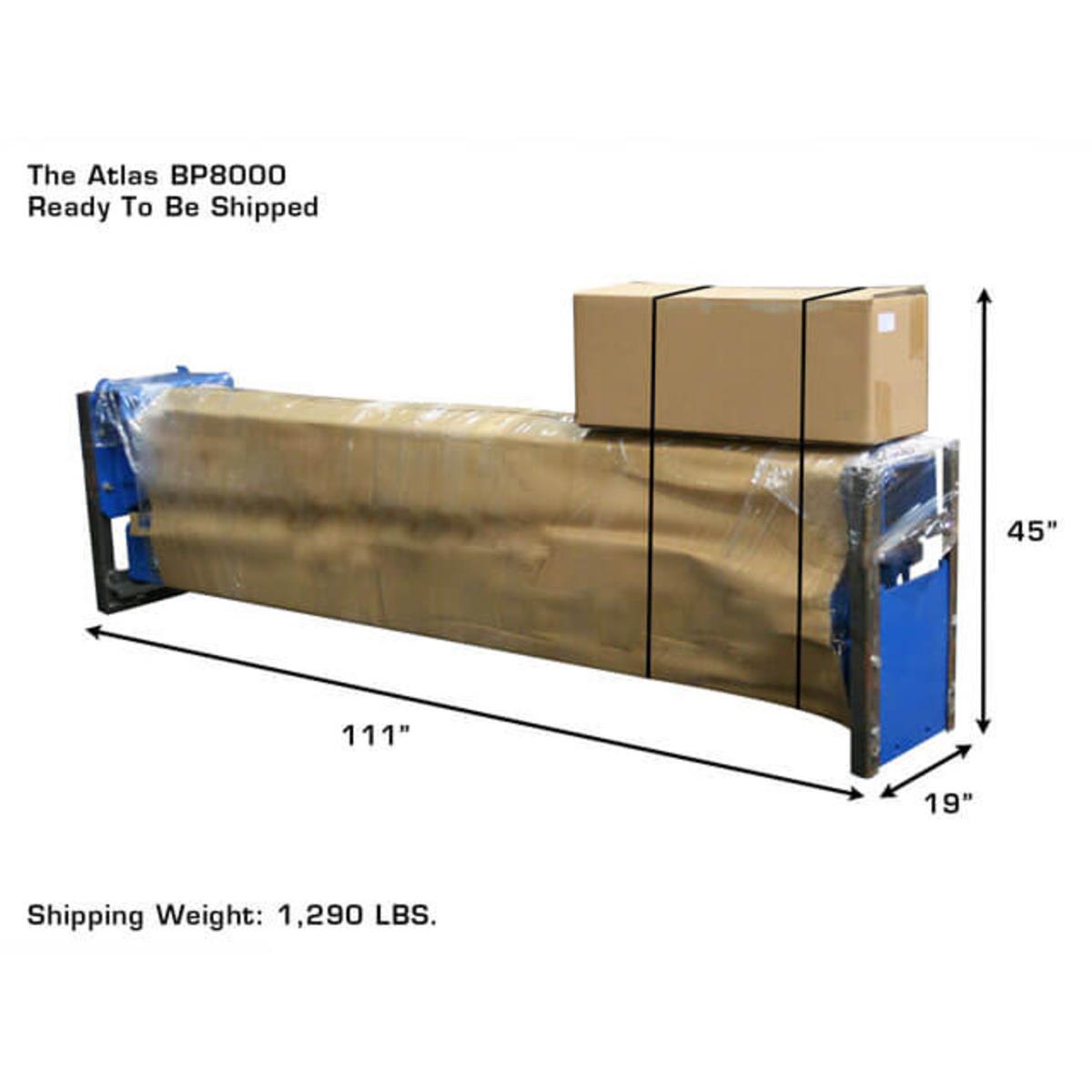

  • Shipping Weight 1,300 LBS.

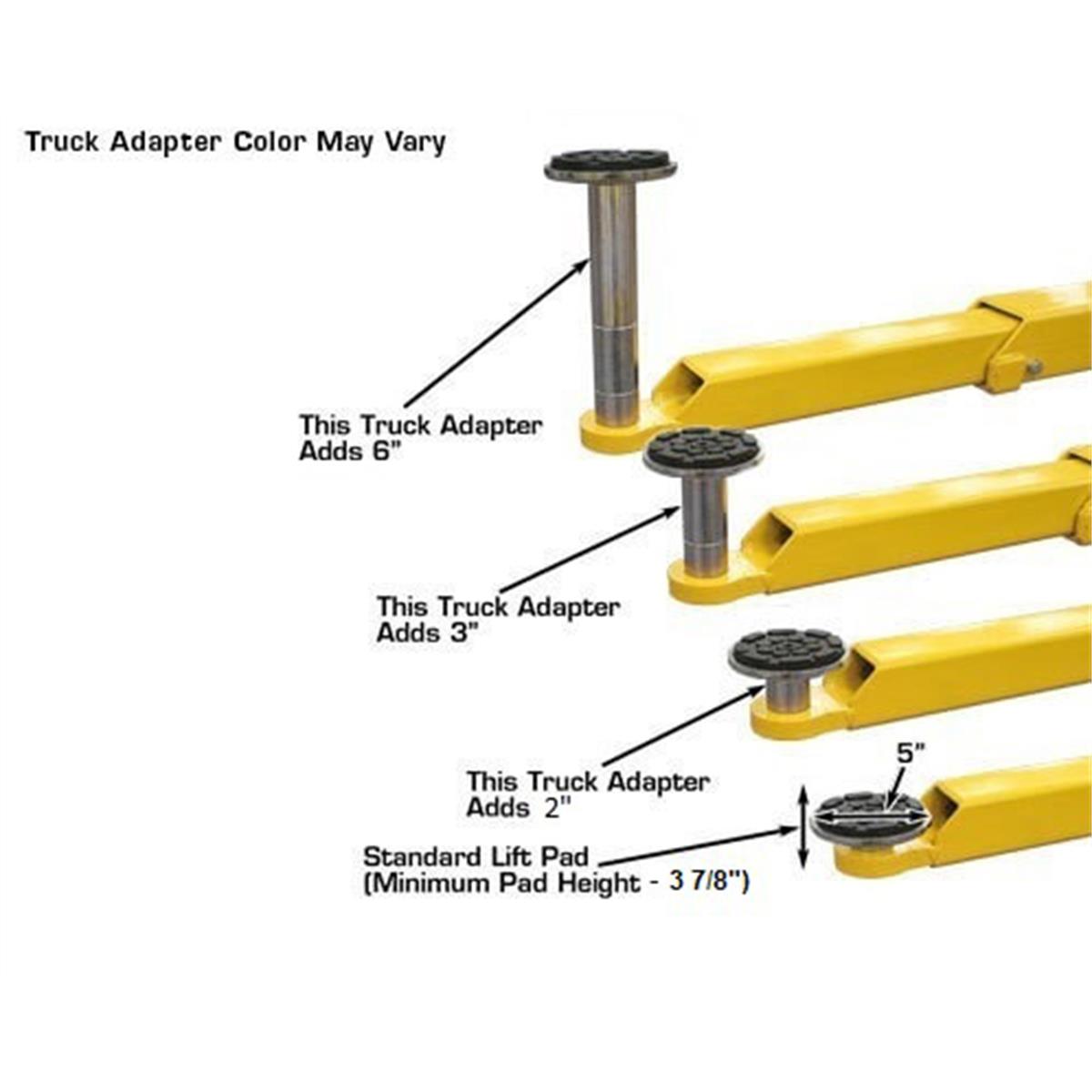

  • Adapter Heights 4 Each 2”, 3”, 6”
  • Arm Hole/Adapter Peg Size 1.5”
  • Requires a minimum of 4" of concrete with a 3000 psi. rating

    The Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE):

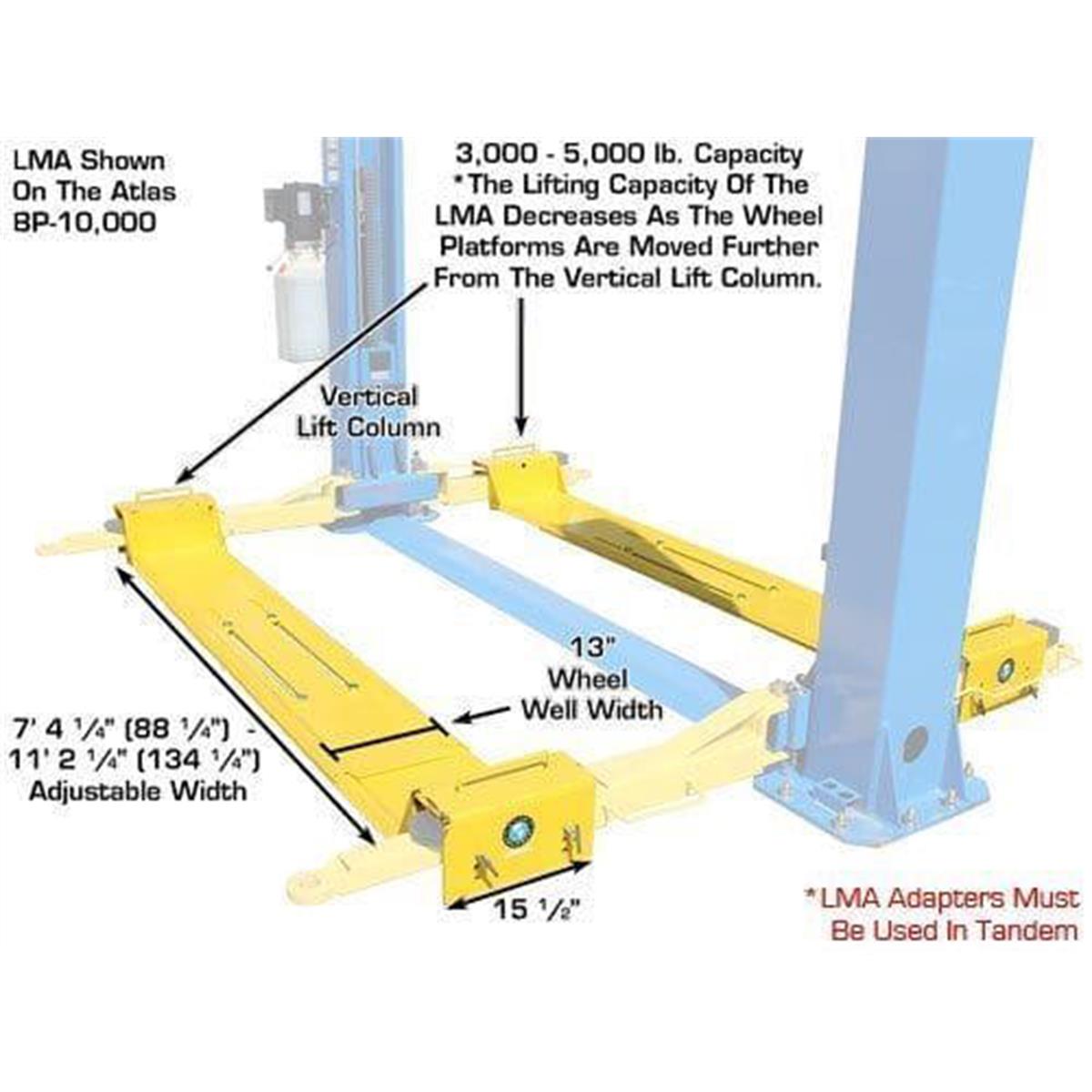

    • Capacity: Up to 5,000 lbs

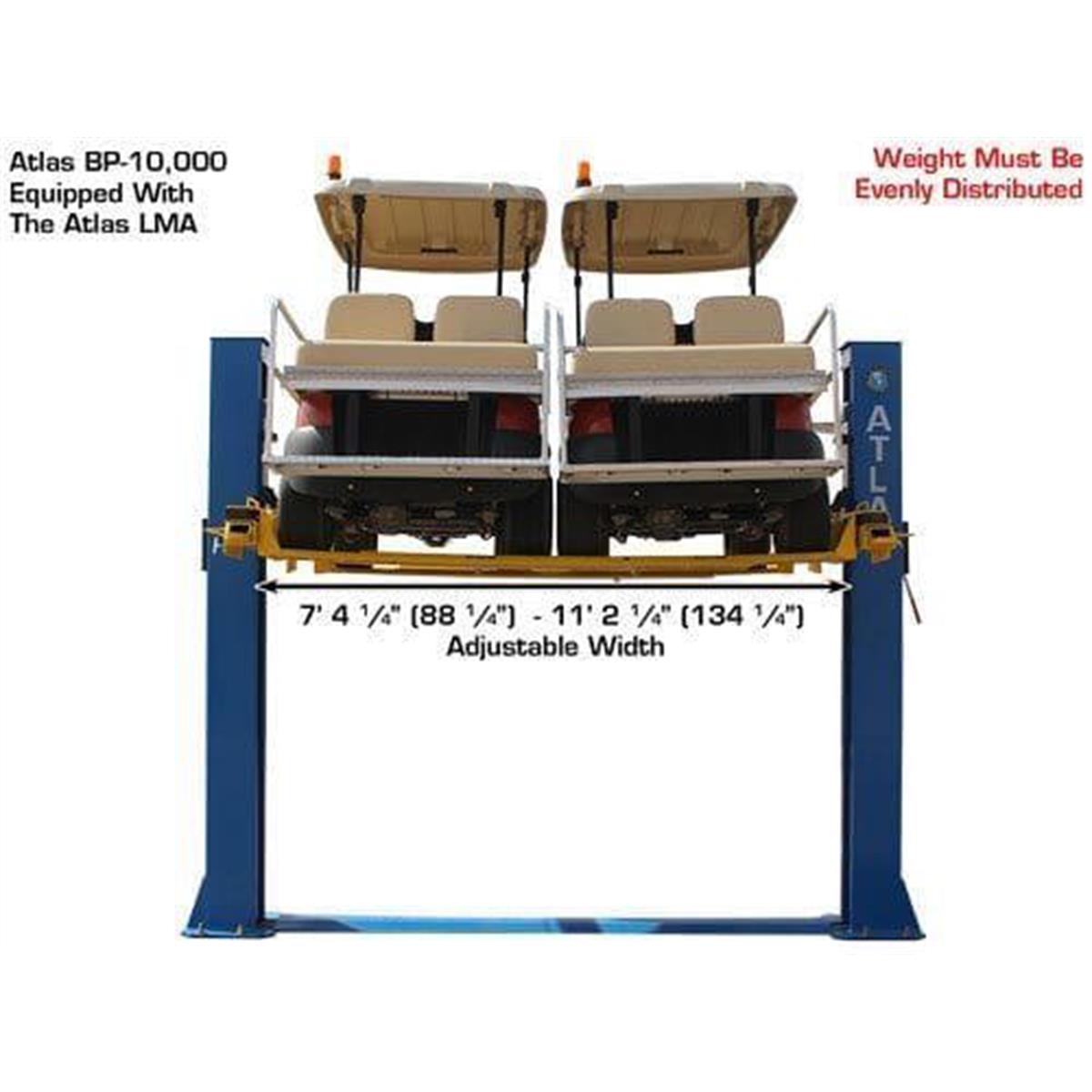

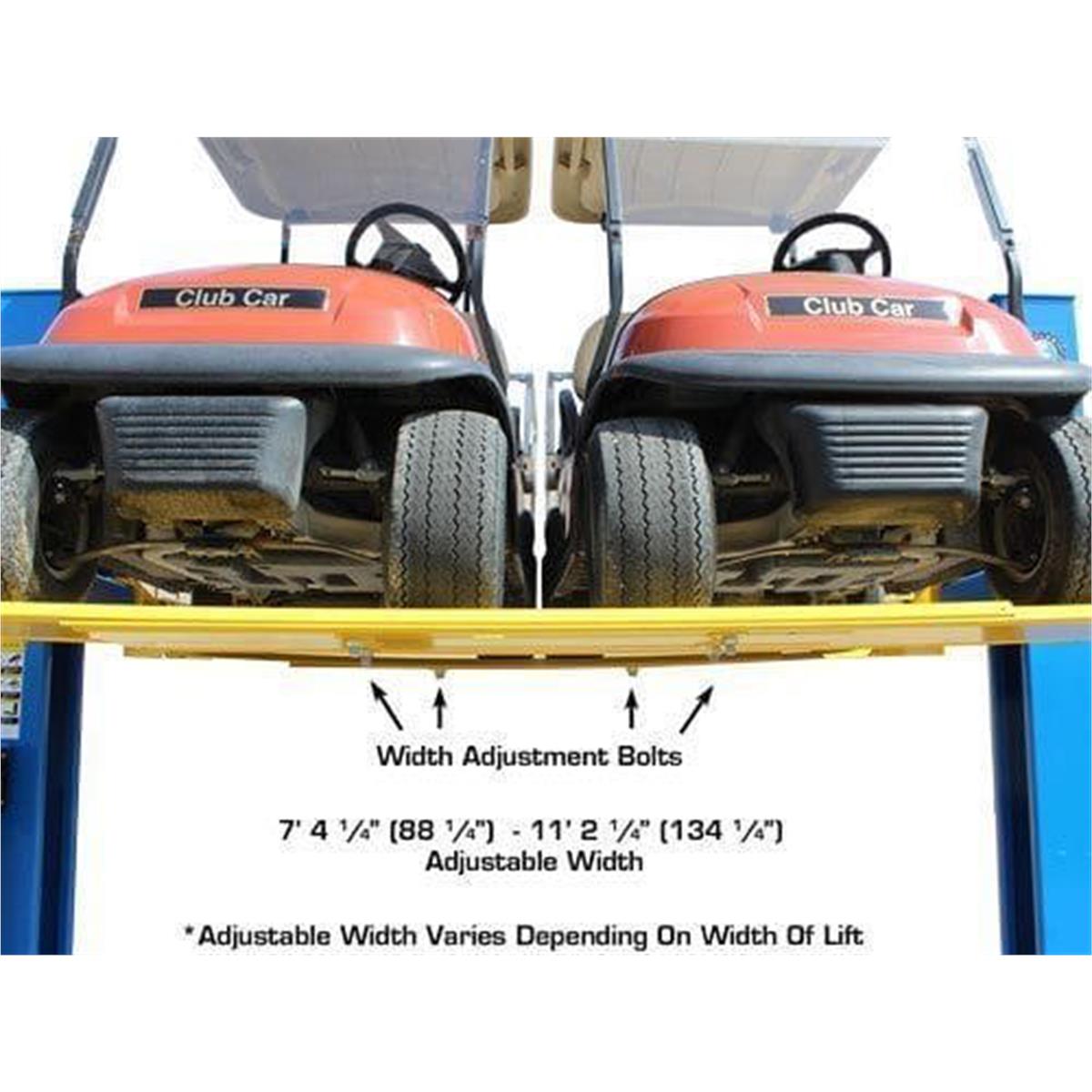

    • Adjusts in Width: 8' to 11'
    • Wheel Base: 32" to 90"

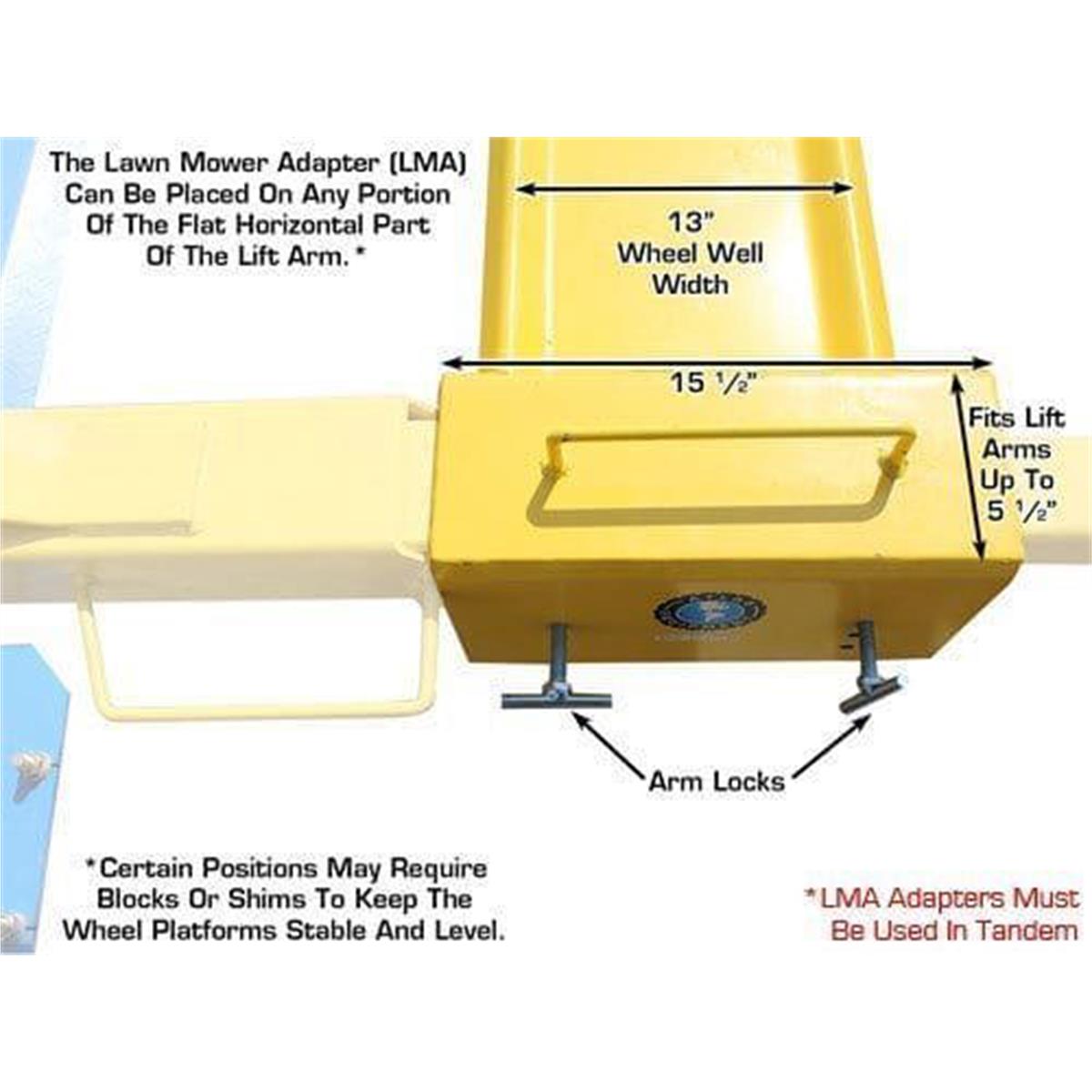

    • Wheel Well Width: 12"
    • Thickness of Steel: 3/16"

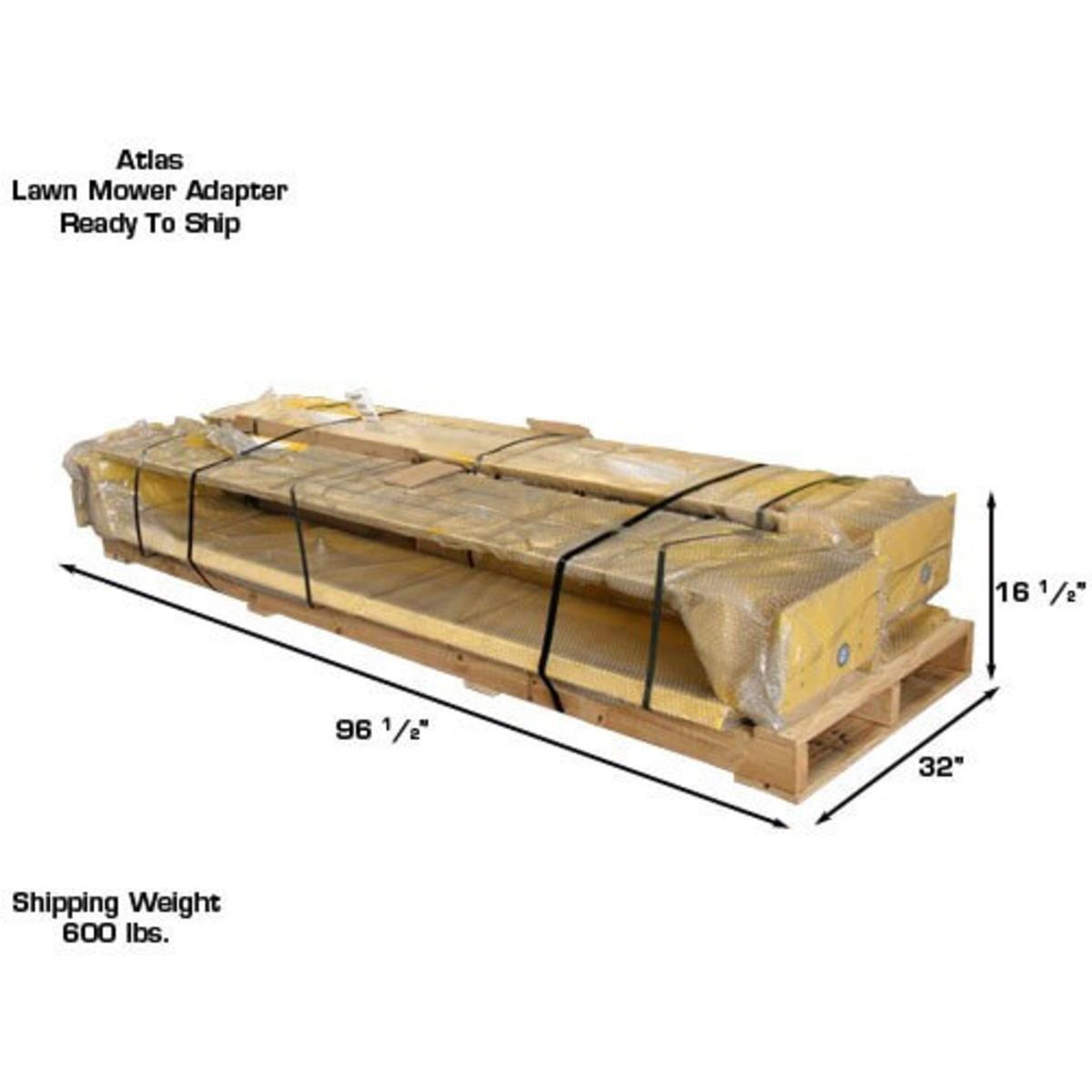

    • Shipping Weight: 600 lbs.
    • Will fit lift arms up to 5 1/2" wide
