Features and Benefits:
- Capacity: 1000 lbs.
- Air Operated (External Air Supply Required)
- 33" Full Lift Height
- 93" Table Length
- Diamond Plate Surface
- Front Wheel Vise Included

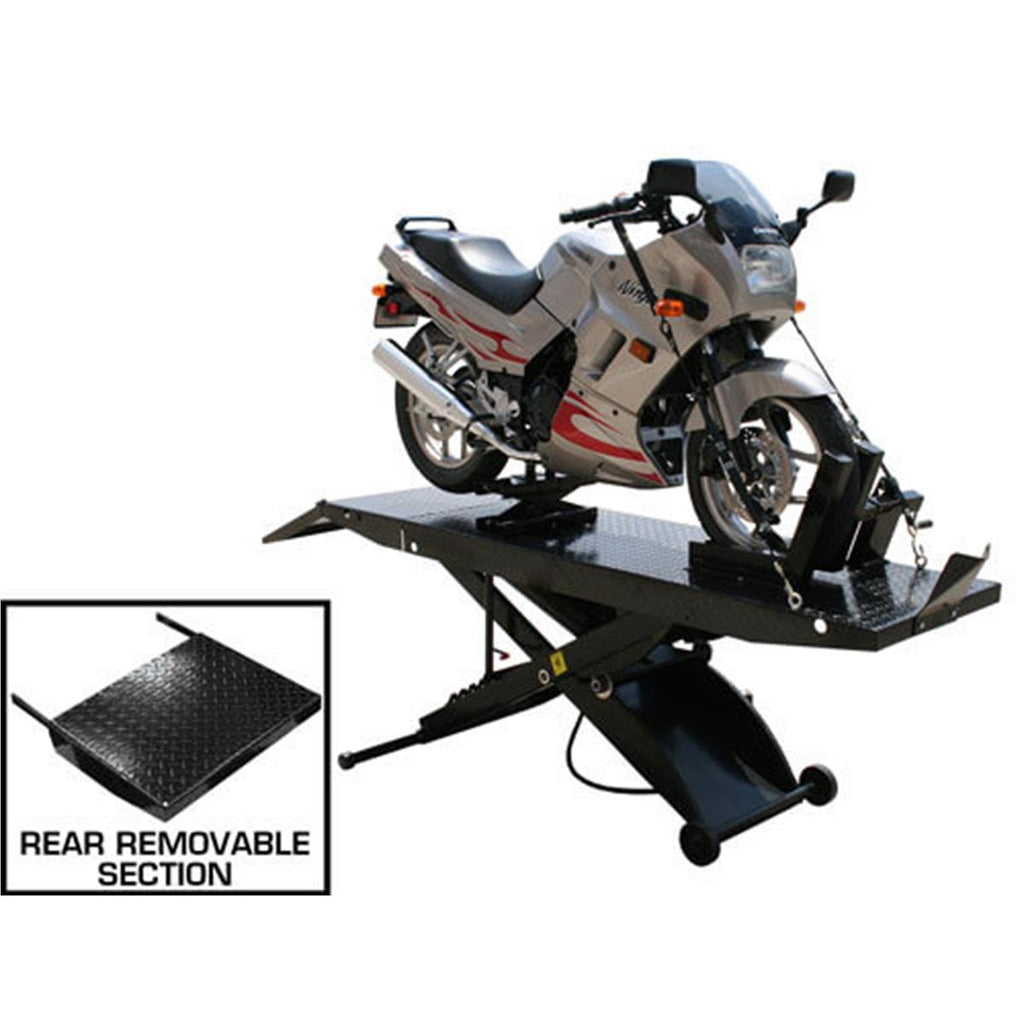

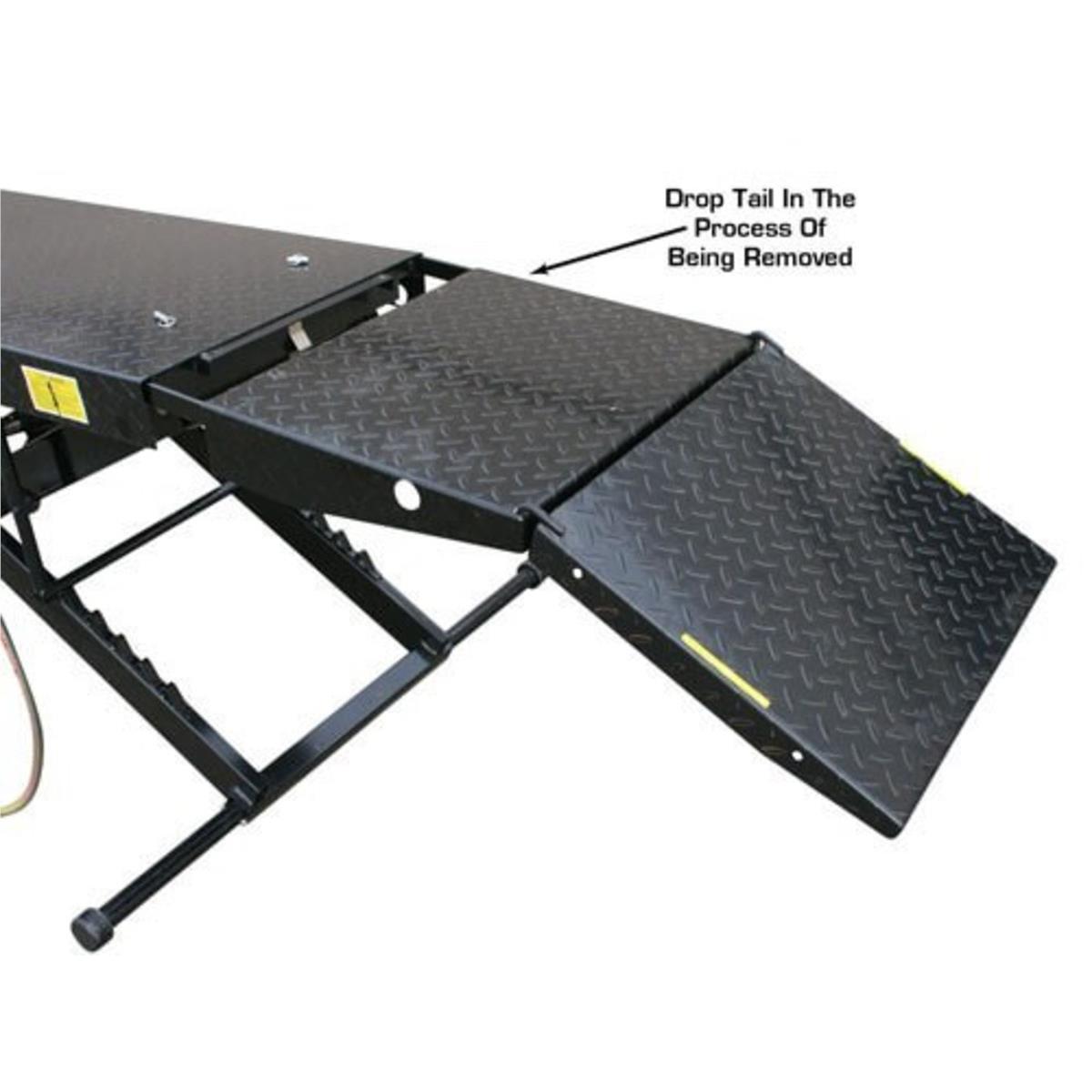

- Removeable Rear Section for Wheel Removal

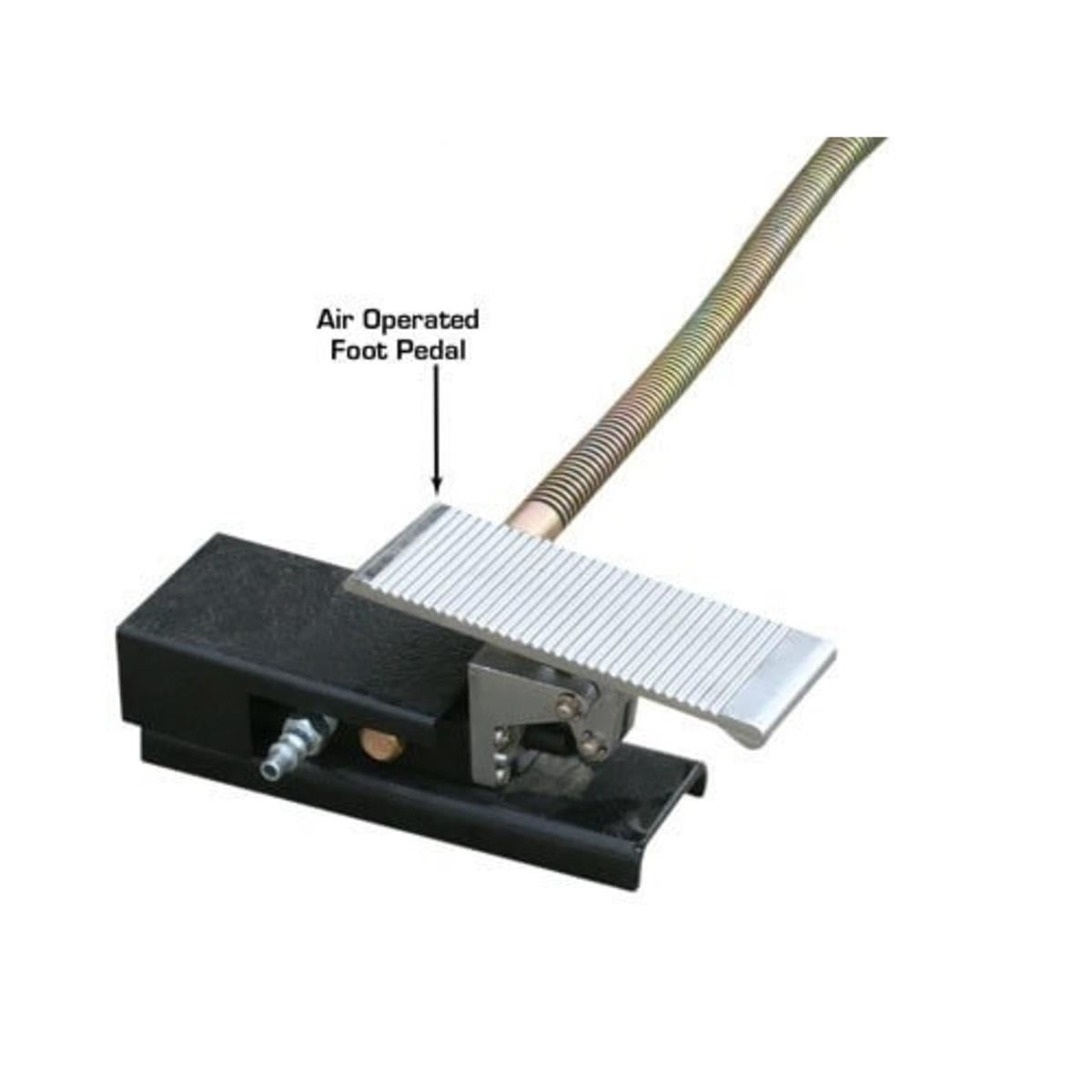

- Foot Pedal Control Included

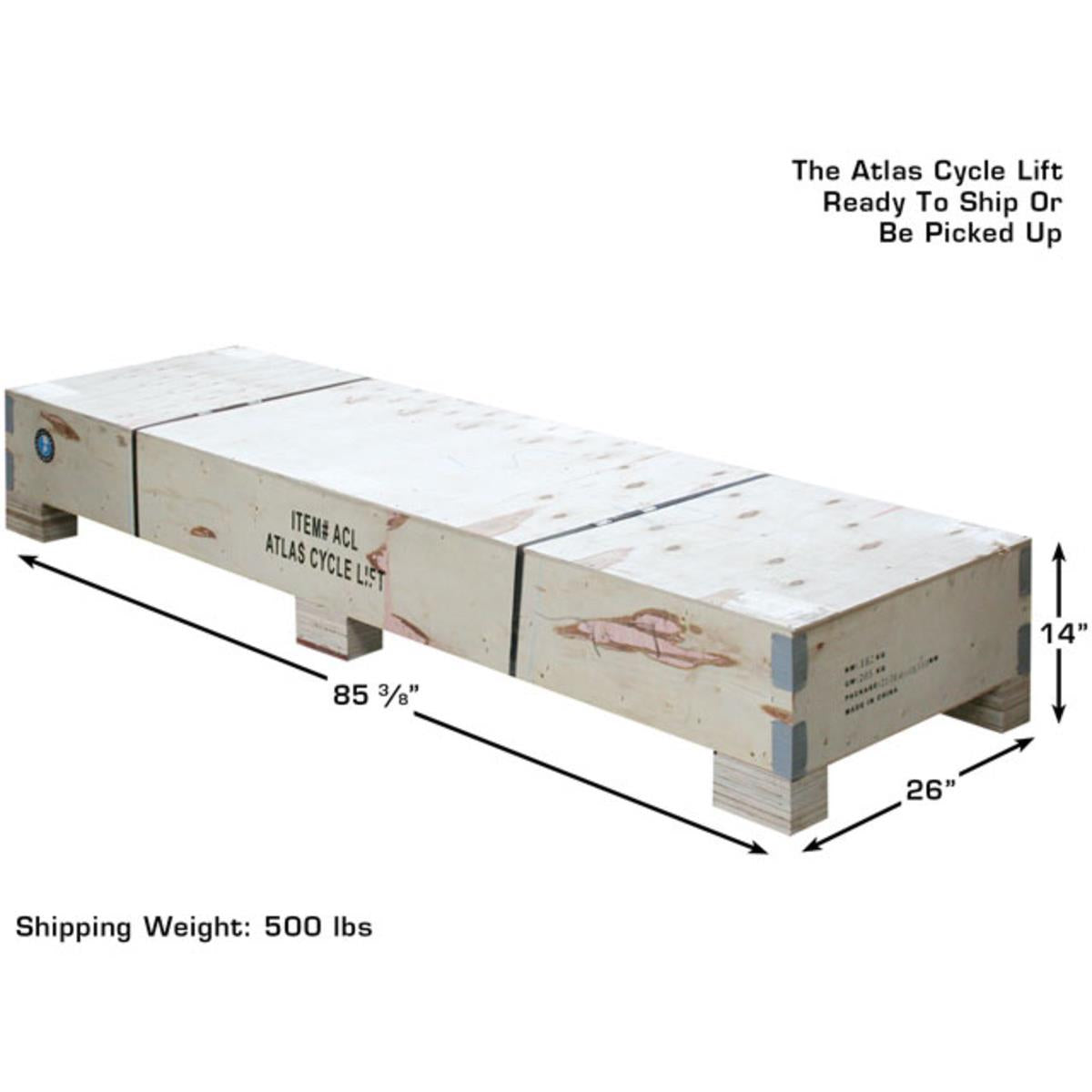

- Shipping Weight: 500 lbs.
- 1 yr Warranty ‐ Parts Only

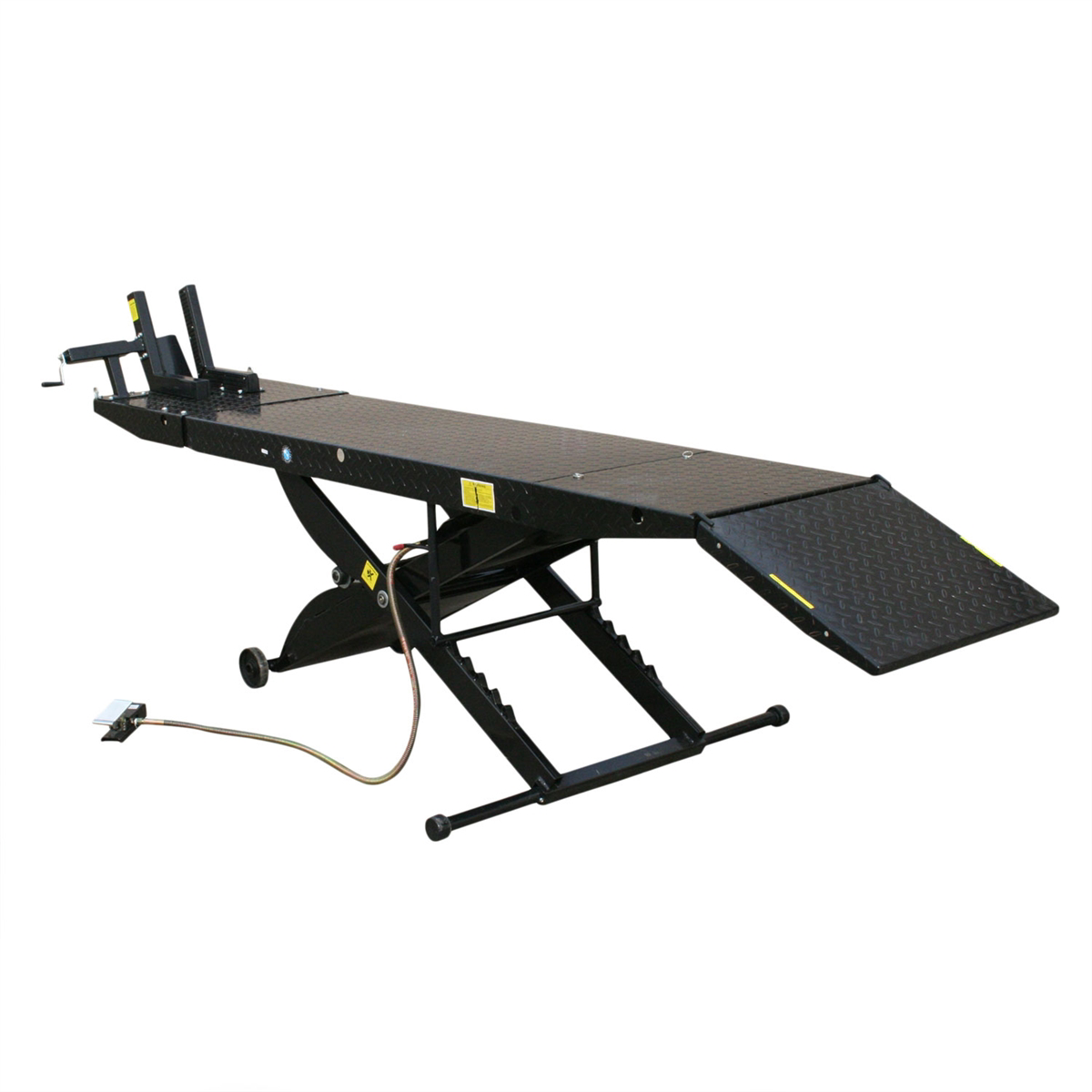

Atlas Cyclelift Motorcycle Lift Specifications
- Weight Capacity: 1,000 lb.
- Length W/ Ramp: 113" (9' 5")
- Table Length W/O Ramp: 93" (7' 9")
- Width: 24"
- Lift Height: 33" (2' 9")
- Lowered Height: 7 1/4"
- Removable Approach Ramp: 20"

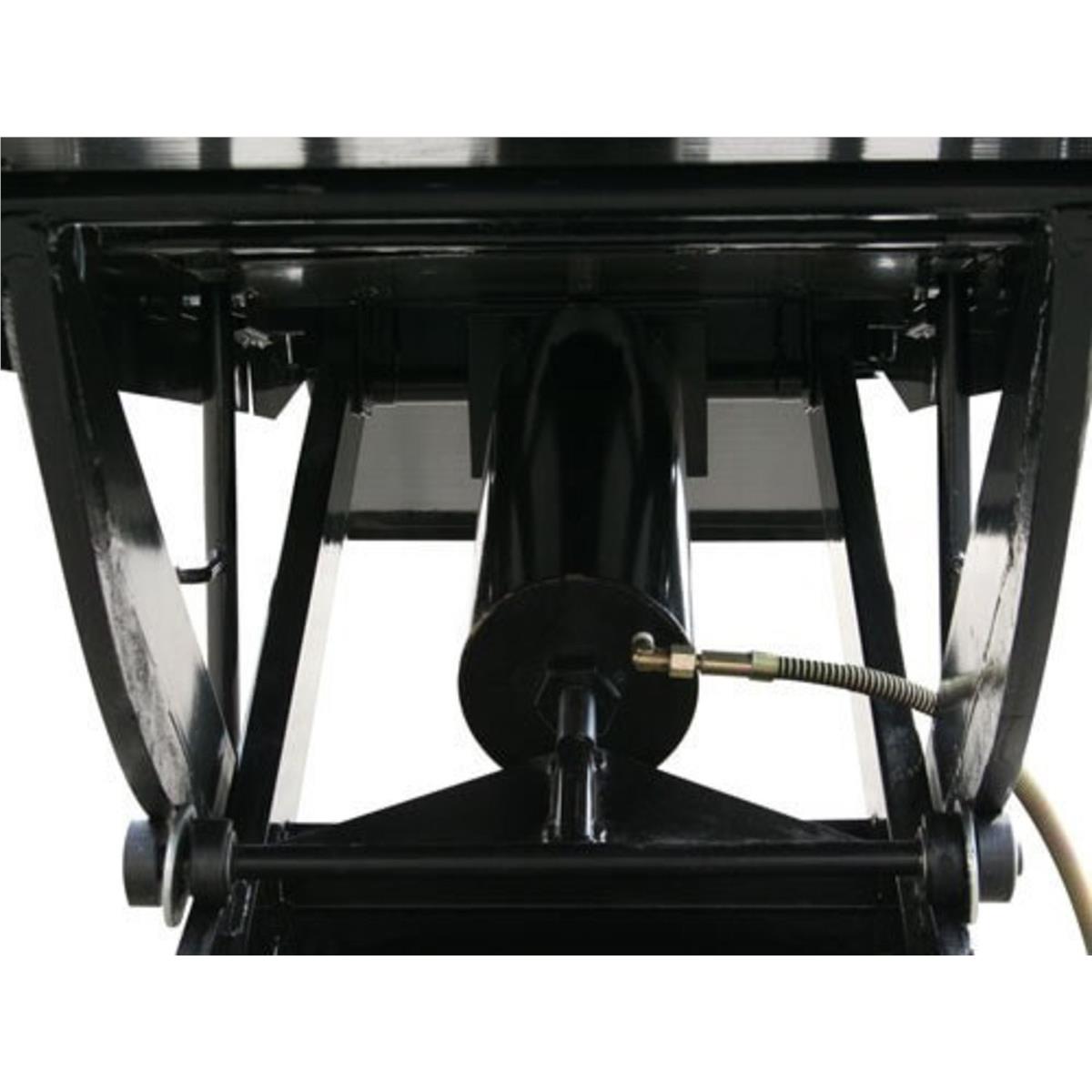

- Cylinder: 7" (Internal Size = 6")
- Air Requirements: 90 - 100 psi
- Shipping Weight: 500 lb.

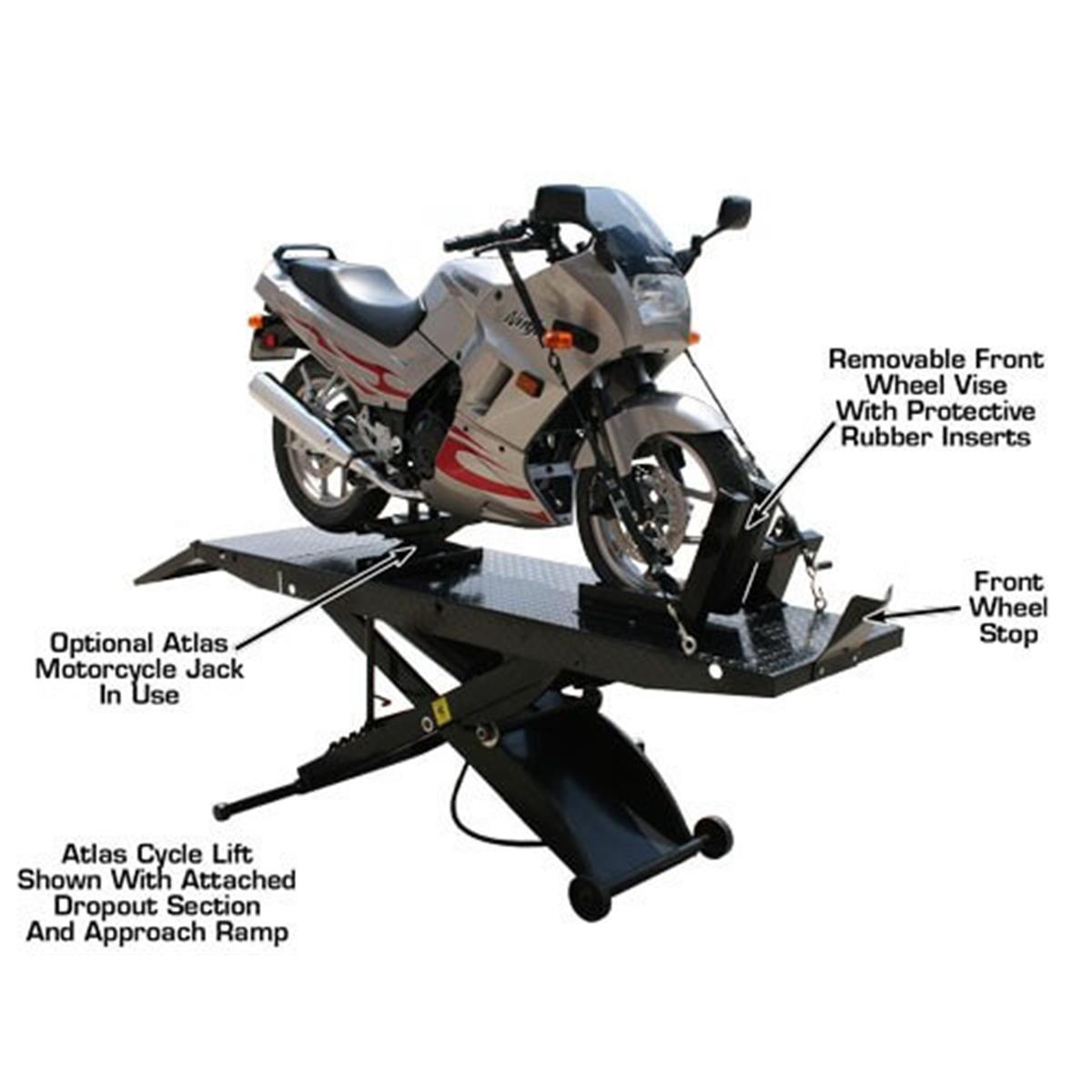

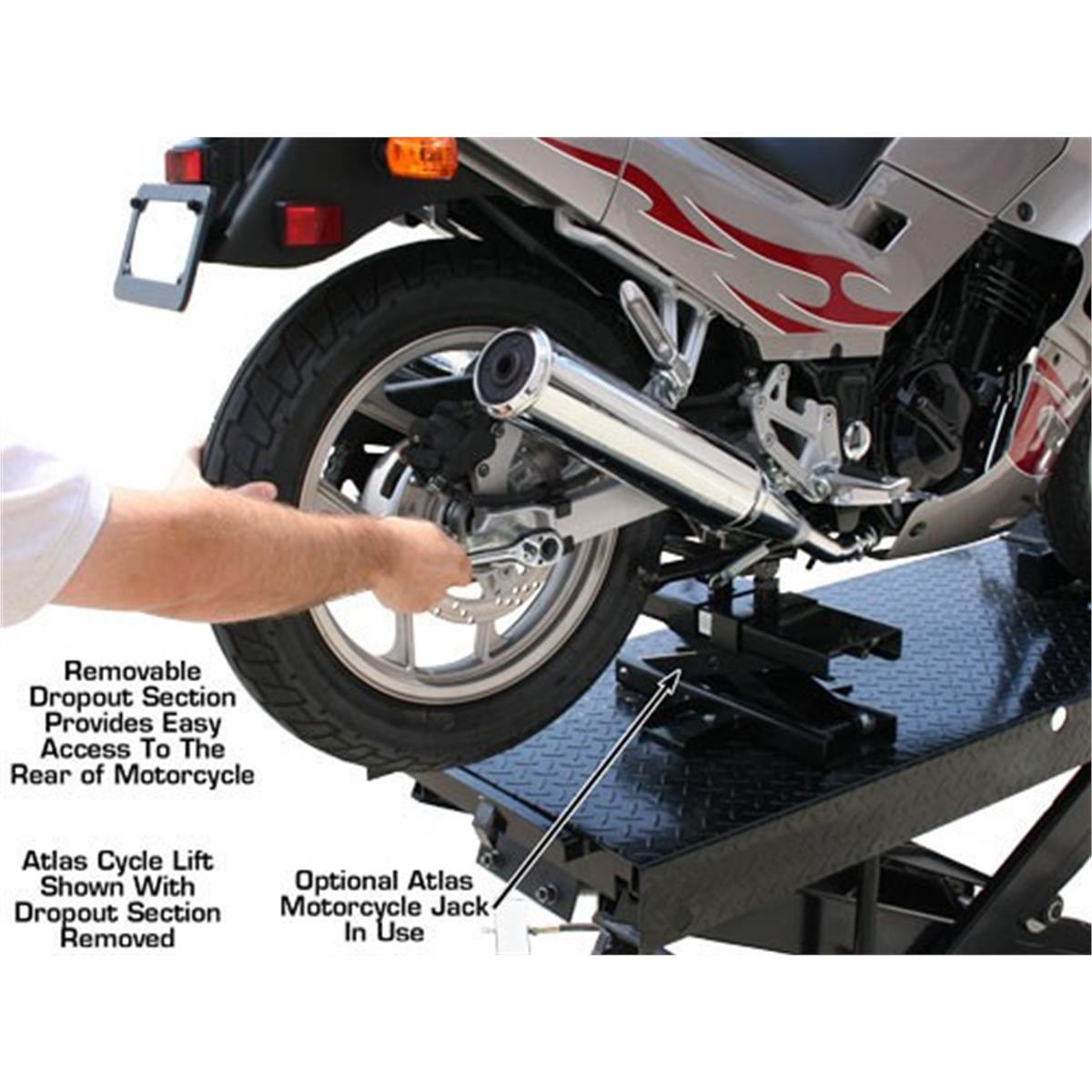

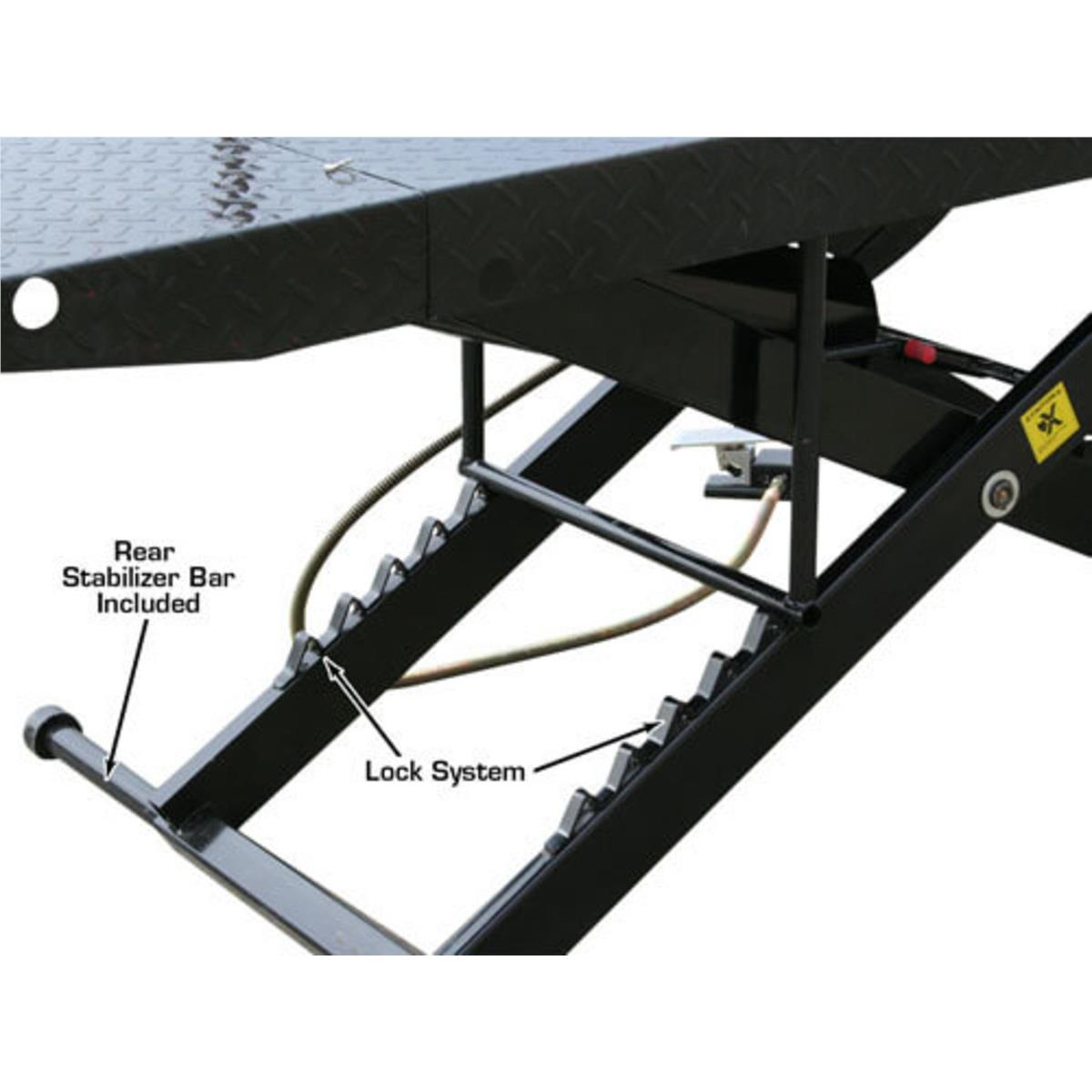

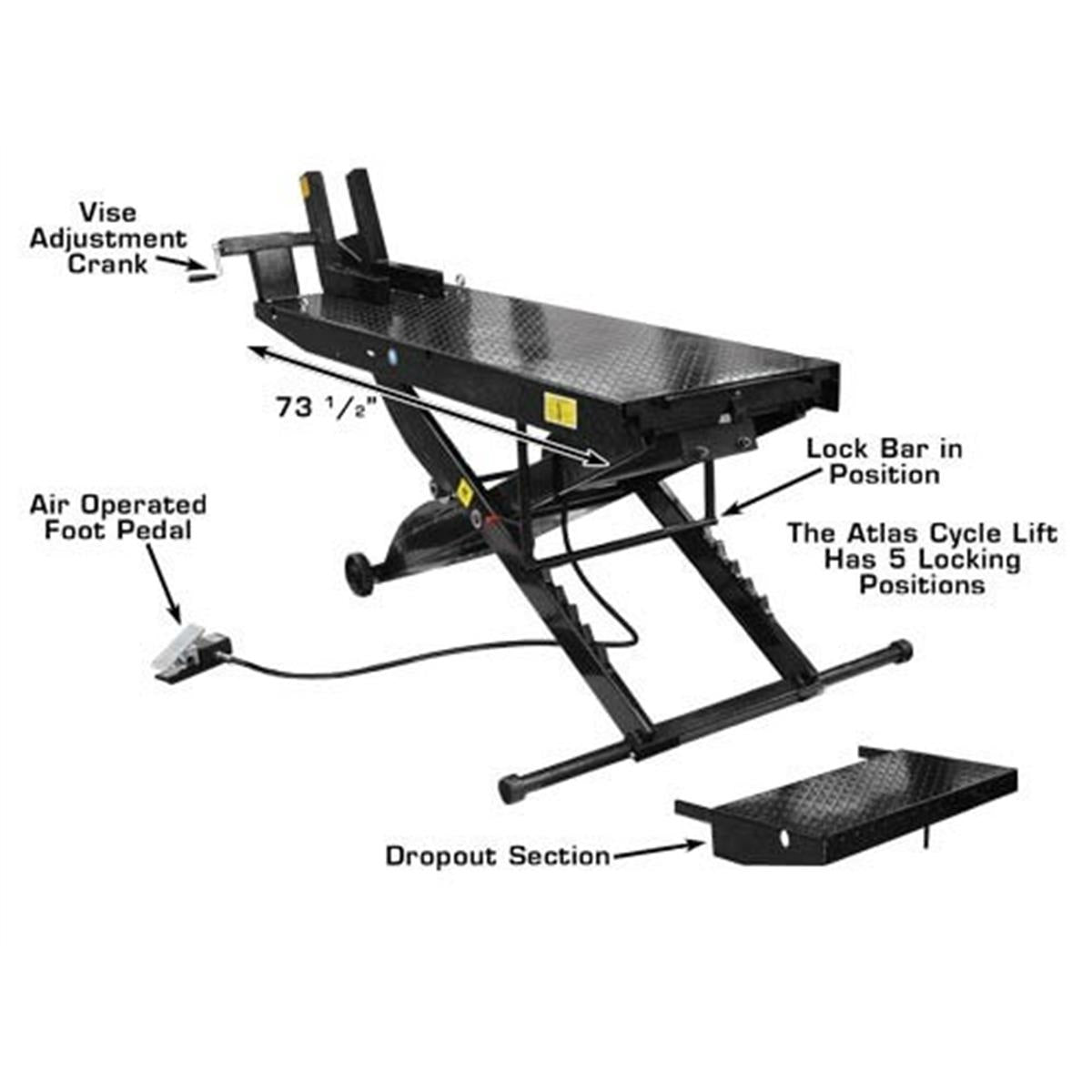

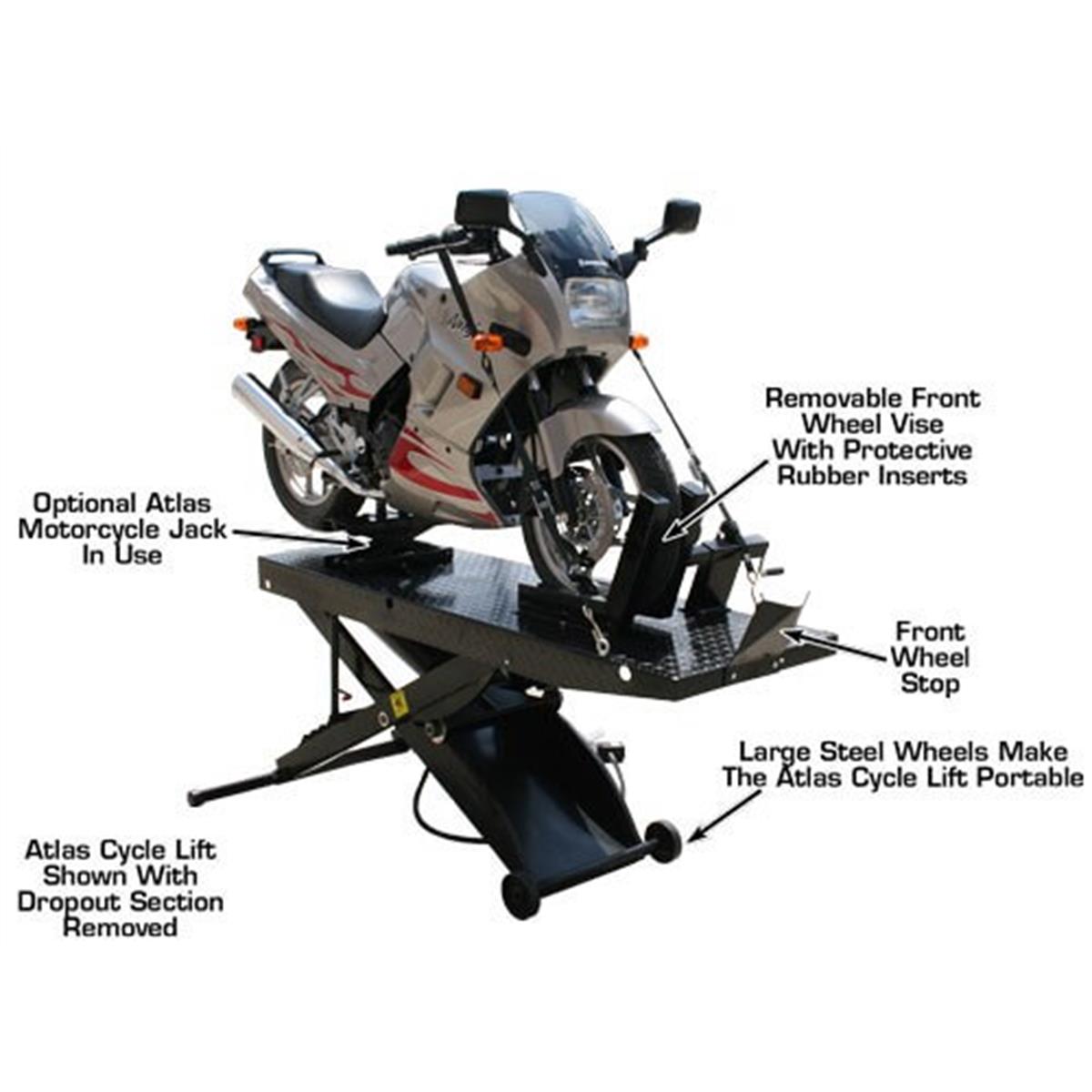

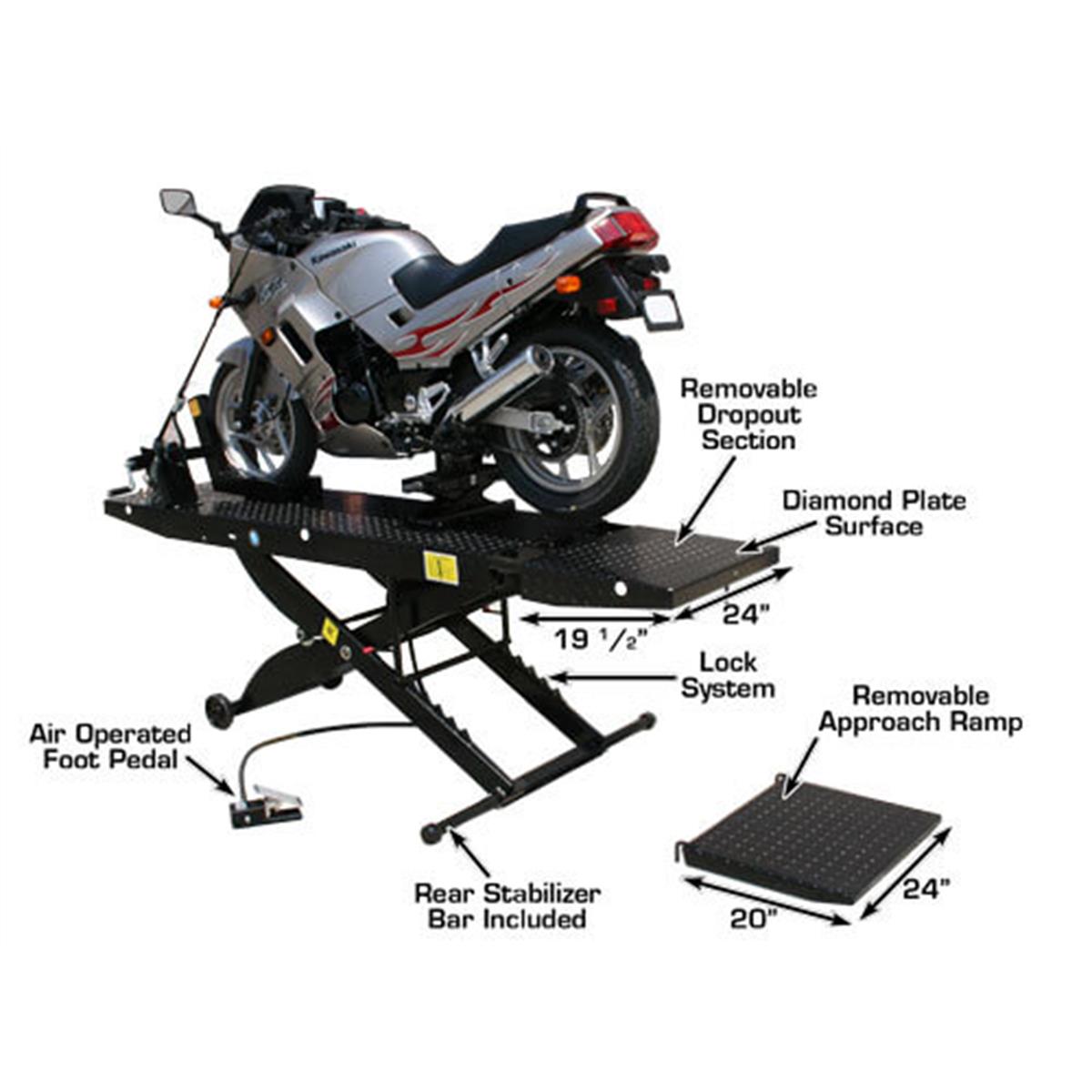

The Atlas Cyclelift has one of the industry's longest (standard) platforms to accommodate extra long motorcycles. The motorcycle lift has a heavy gauge (diamond plated) platform length of 93 inches and an additional 20 inch removable approach ramp. The Atlas Cyclelift is air operated and requires between 90-100 PSI to operate. The Cyclelift is the perfect addition to any service department of professional motorcycle dealers or is a great motorcycle lift for the person who wants to work on his personal bike in their own garage. This is a complete motorcycle lift that includes an adjustable front (padded) wheel vise and a heavy duty air operated foot valve for easy raising and lowering. The stabilizing bar is included at no extra charge. This bar provides greater stability for the raised platform by increasing the “footprint” of the lift. Many companies do not include this very important stabilizing bar in their “lift package”. The Atlas Cyclelift motorcycle lift comes standard with a 19 1/2" removable rear section. This 19 1/2" section can be easily removed so that a rear tire can be “dropped straight down” from the rear axle. Since the entire platform width is removed, any sized rim can be lowered from the axle. For those customers looking for more width to pick up ATV's, UTV's, Golf Carts, and other wider vehicles the Atlas Cyclelift can be equipped with the Atlas Cyclelift Side Extension Kit to increase the width up to 4 feet.
Document.
Atlas Cyclelift Manual
