Features and Benefits:
- 9,000 lb. Capacity
- Baseplate, Open Top design
- Overall Height: 111 1/2? (9? 3 1/2")
- Symmetric Arms
- Automatic Arm Restraints
- Dual-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System
- Adjustable Screw-Up Adapters Included
- Free 4 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters
- Mounting Hardware Included
- Shipping Weight: 1,400 lbs.
- 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
- This part number WILL CALL ONLY

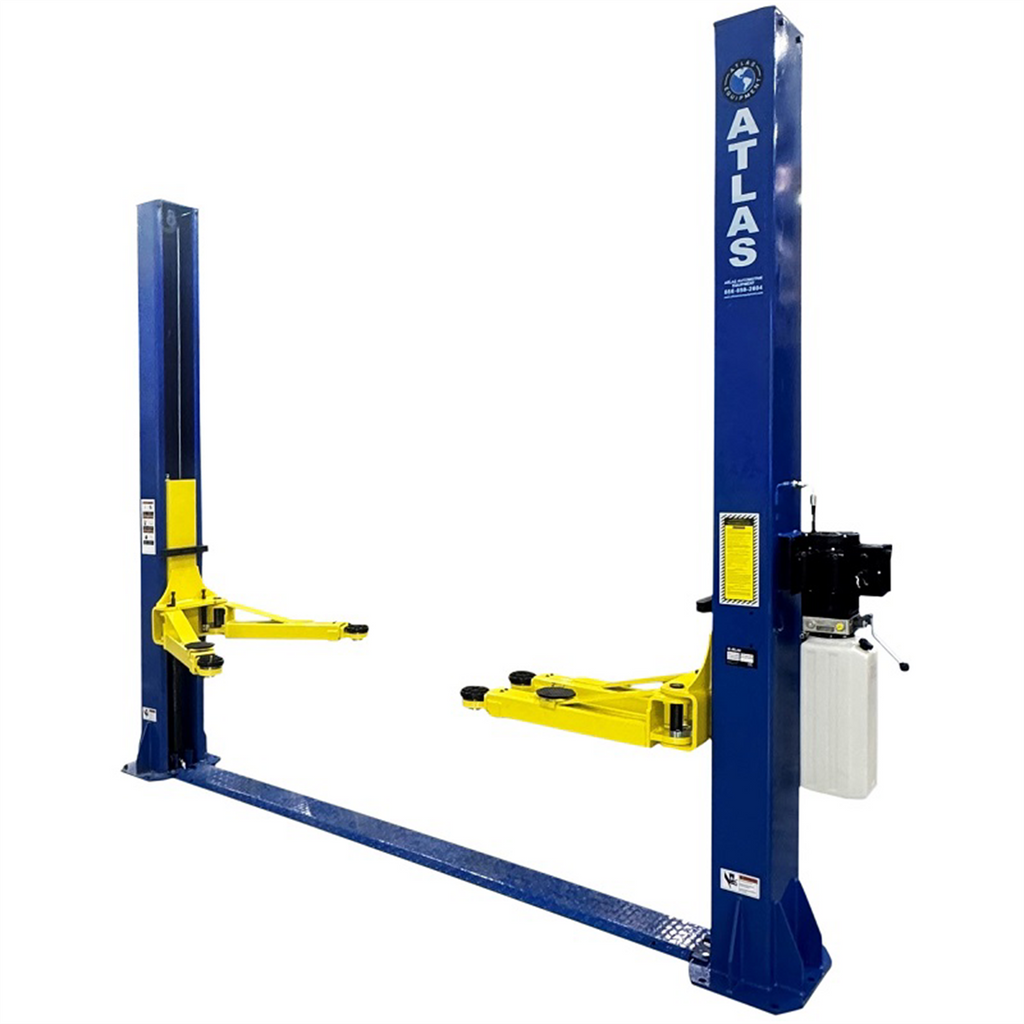

The light duty Atlas® TPF-9 lift is an economically designed baseplate 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUVs and light duty trucks. The TPF-9 has an overall height under 9 feet 4 inches.
The Atlas® TPF-9 has symmetric columns and symmetric arms. The low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® TPF-9 two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain..
Atlas® TPF-9 Specifications
- Capacity 9,000 LB.
- Overall Height 111 1/2” (9' 3 1/2")
- Overall Floor Width 133 1/2" (11 1 1/2")
- Maximum Lift Height (Without Adapters) 76 1/2"
- Maximum Lift Height (With Adapters) 79 1/2"
- Minimum Arm Height 4"
- Inside Column 111 3/8” (9 2 3/8”)
- Drive Thru 98 1/2” (8 2 1/2”)
- Column Size 7 1/4" x 11"
- Column Thickness of Steel 5mm
- Base Of Lift 14 1/4" x 18"
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,400 LBS.
- Adapter Heights 4 Each 2.75"
- Arm Hole/Adapter Peg Size 2”
- Requires a minimum of 4" of concrete with a 3000 psi. rating
