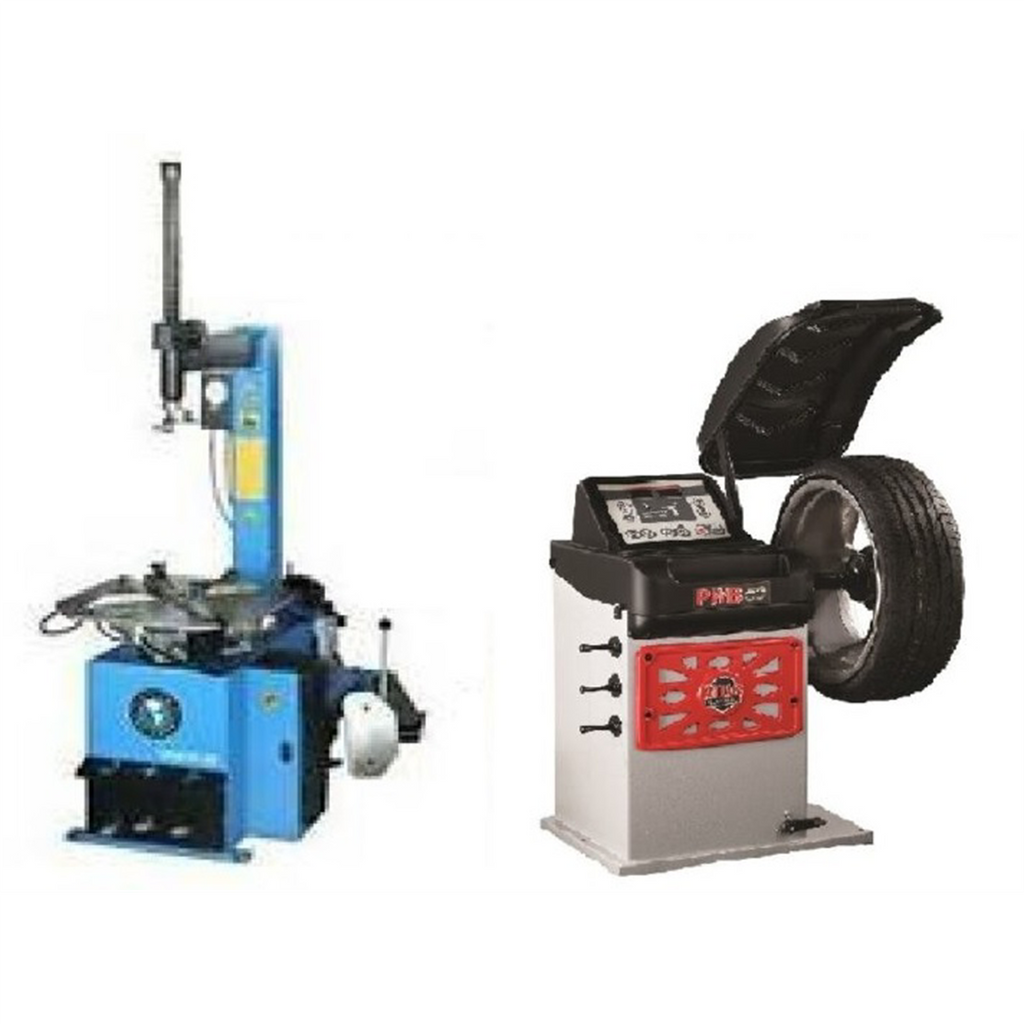

Tire Changer & Wheel Balancer Combo Package:

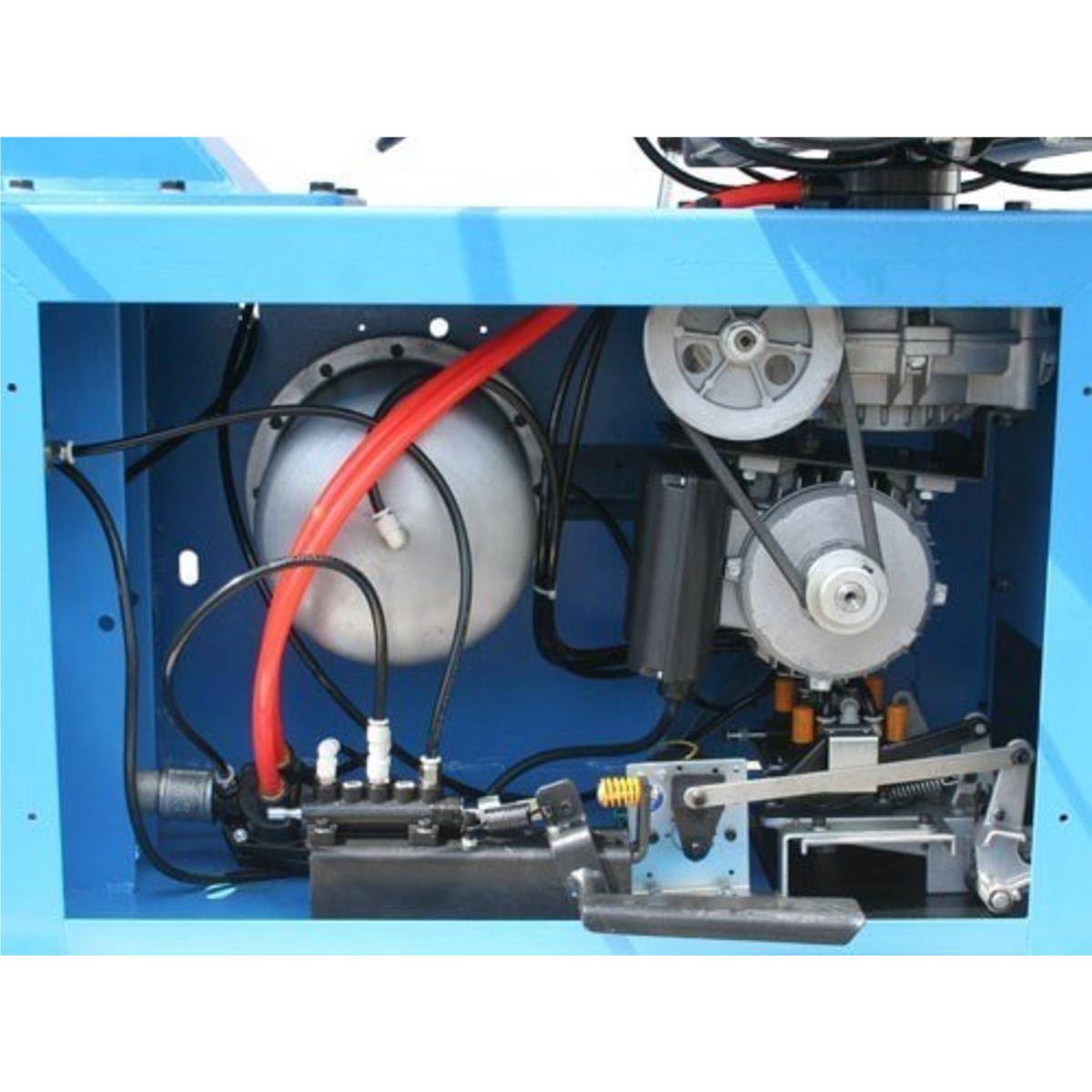

Atlas® TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

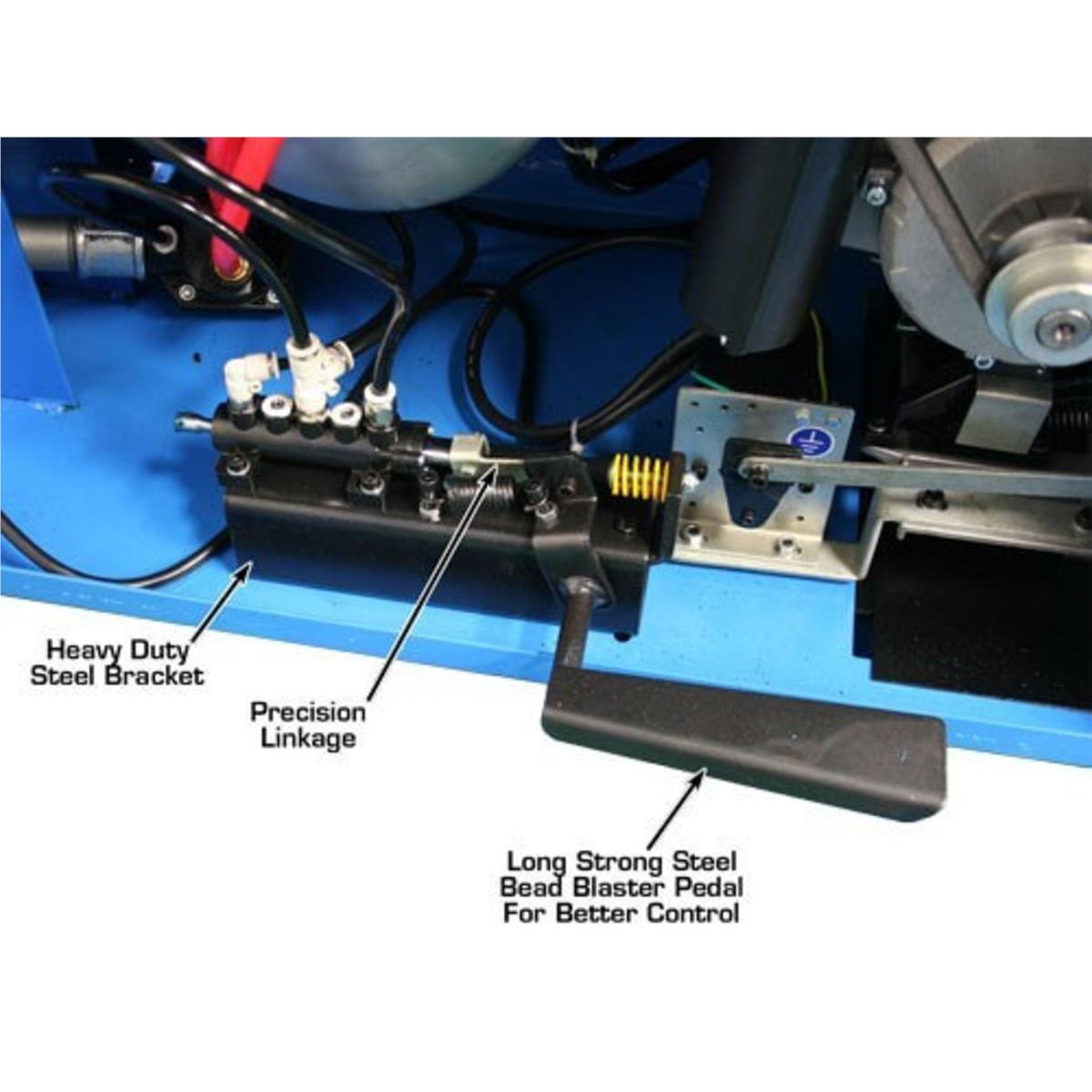

- Built-in "Beadblaster"
- Adjustable jaws, 3 mounting positions

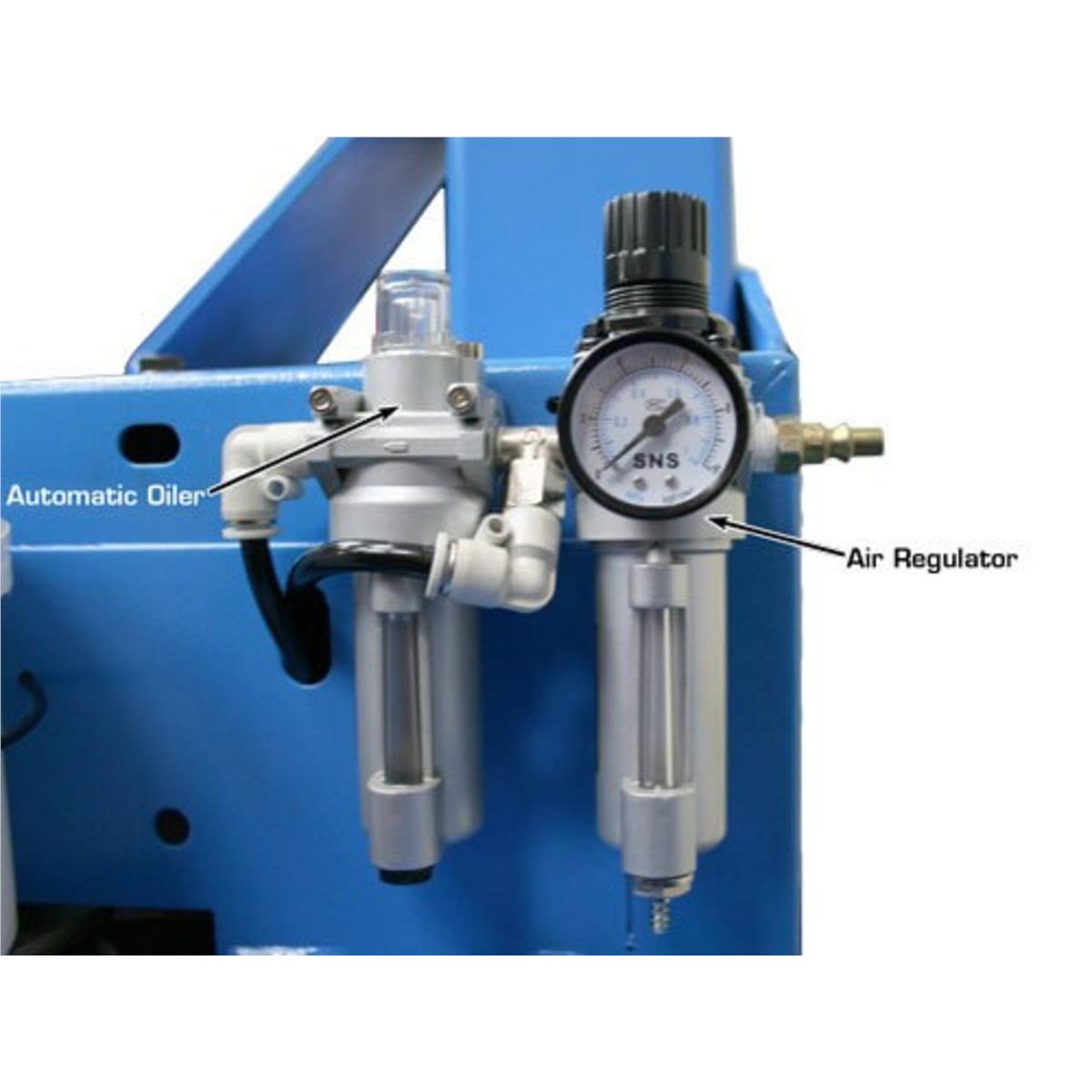

- Oiler, Filter, Regulator included (external air supply required)

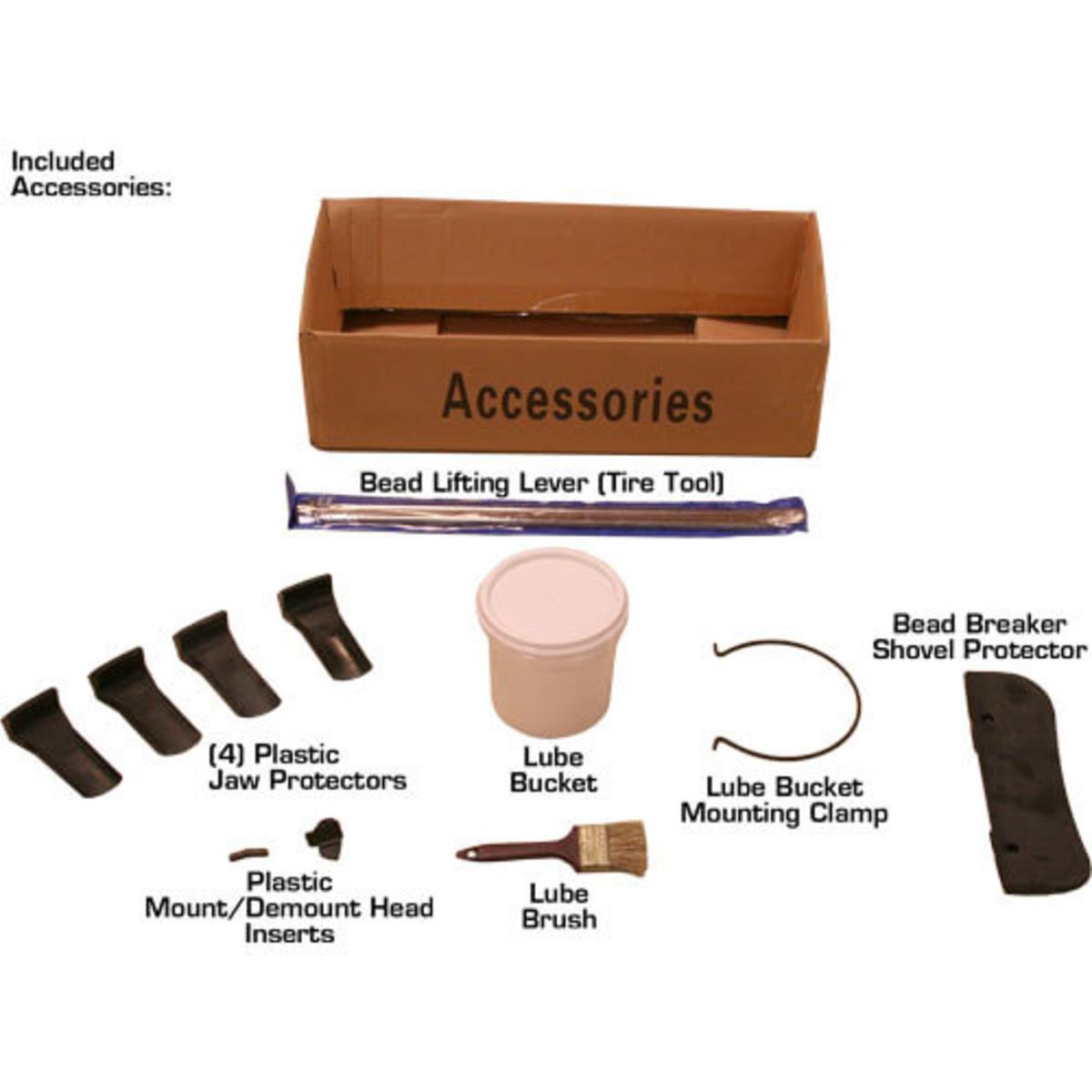

- Plastic Protectors included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box w/ Gauge Included

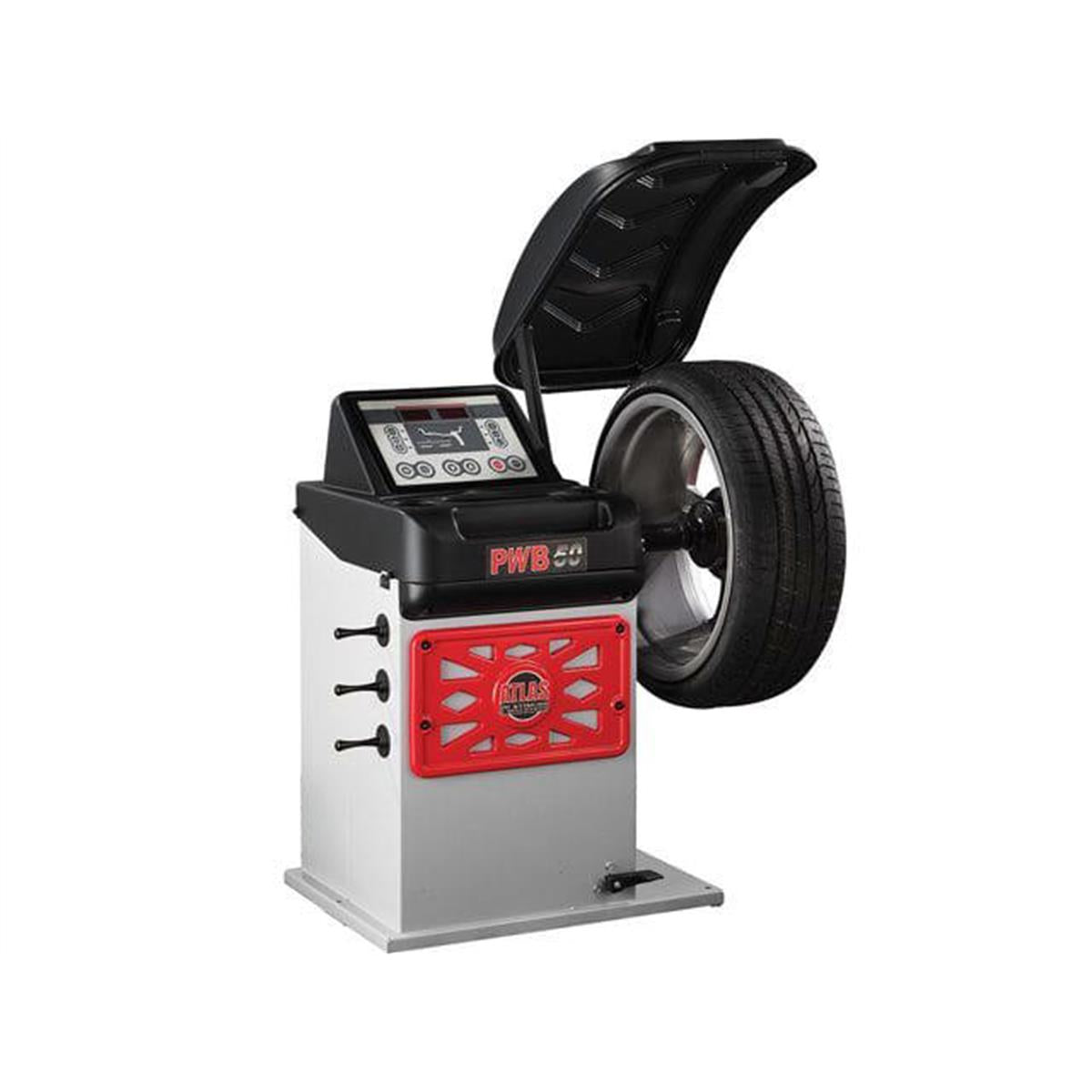

Atlas® Platinum PWB50-110V Wheel Balancer

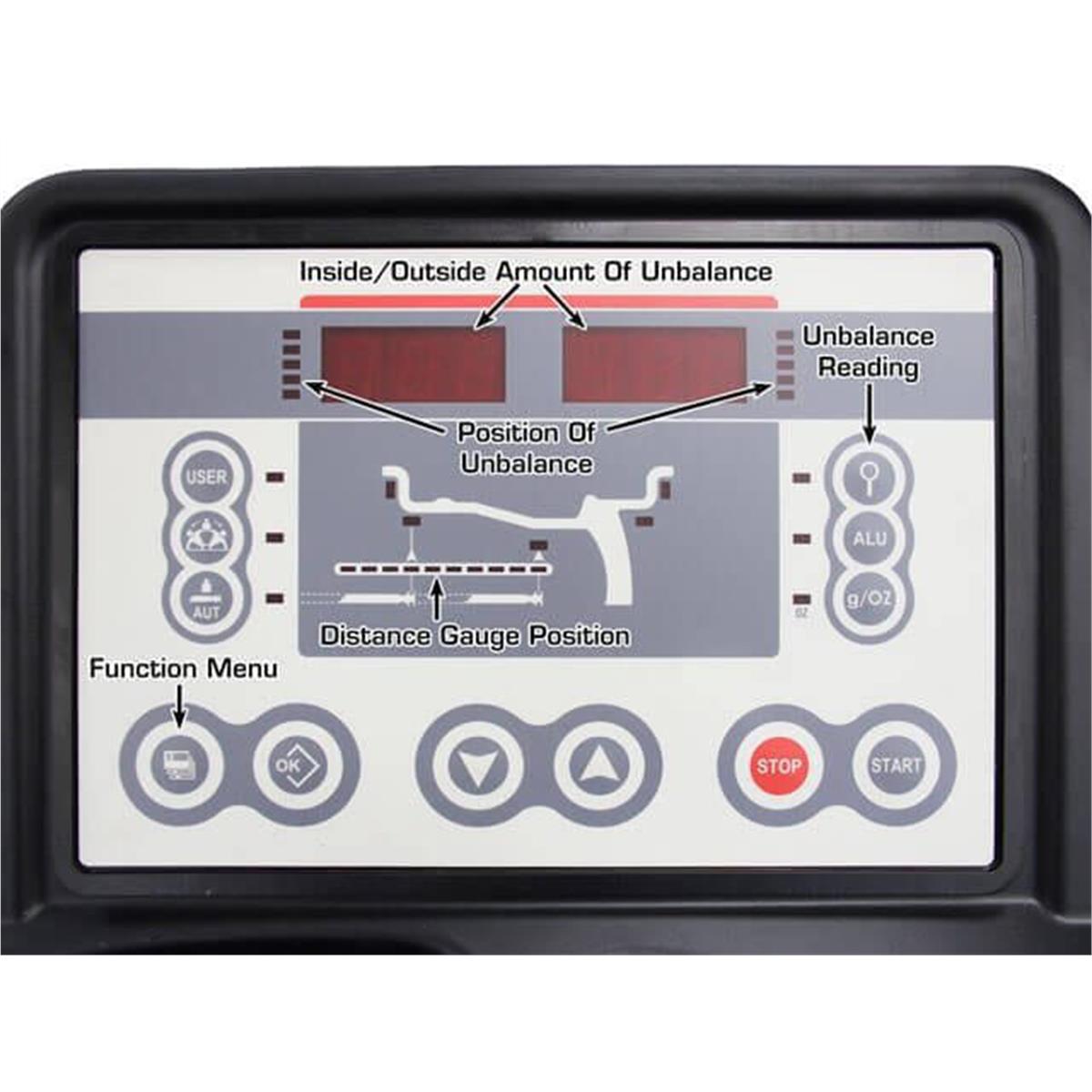

- Computer Controlled Spin Balancer
- Static and dynamic balancing modes
- Automatic 2D Data Entry
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Self Diagnosis/Self Calibration
- Display in grams or ounces, in mm or inches

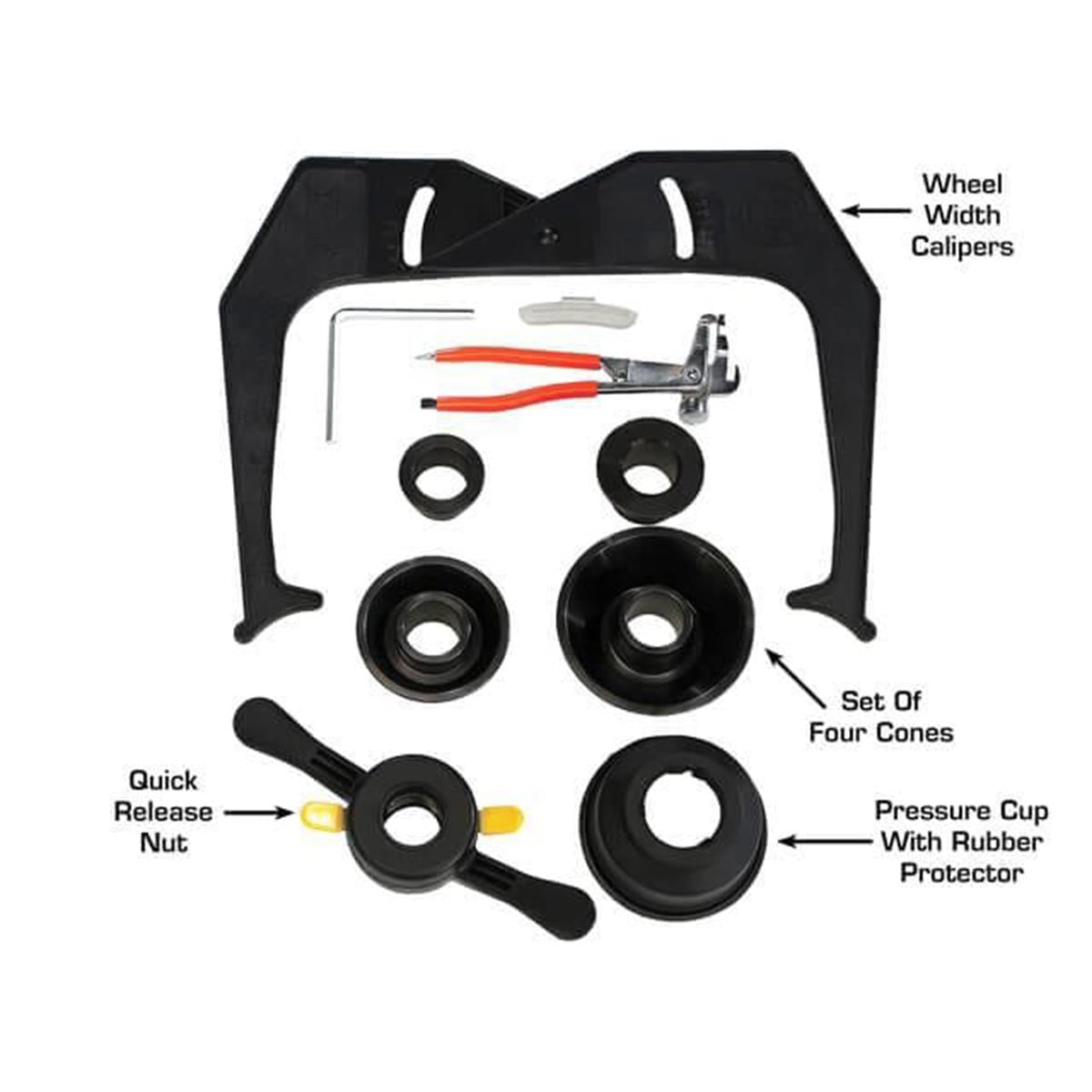

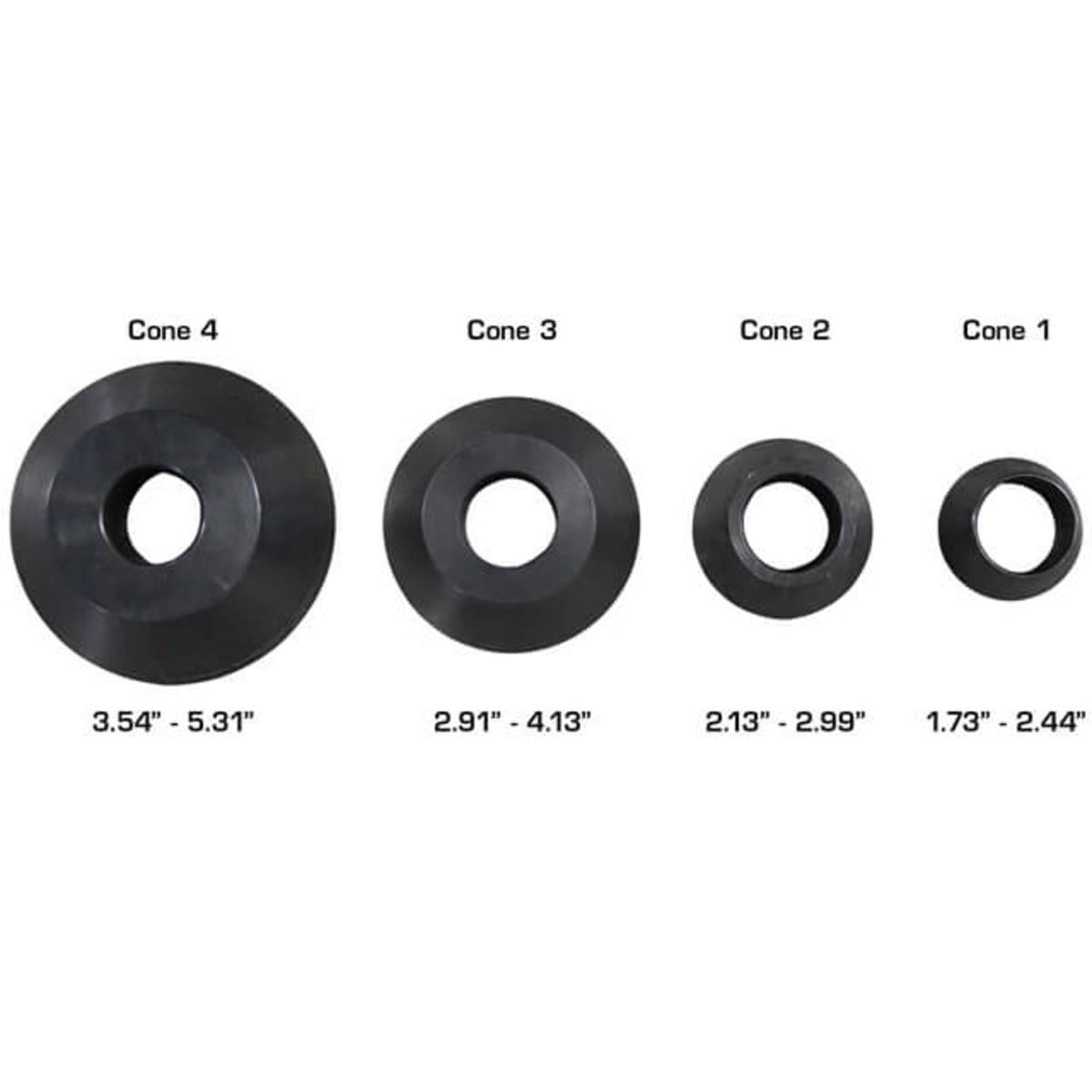

- 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
- This part number FREIGHT PREPAID

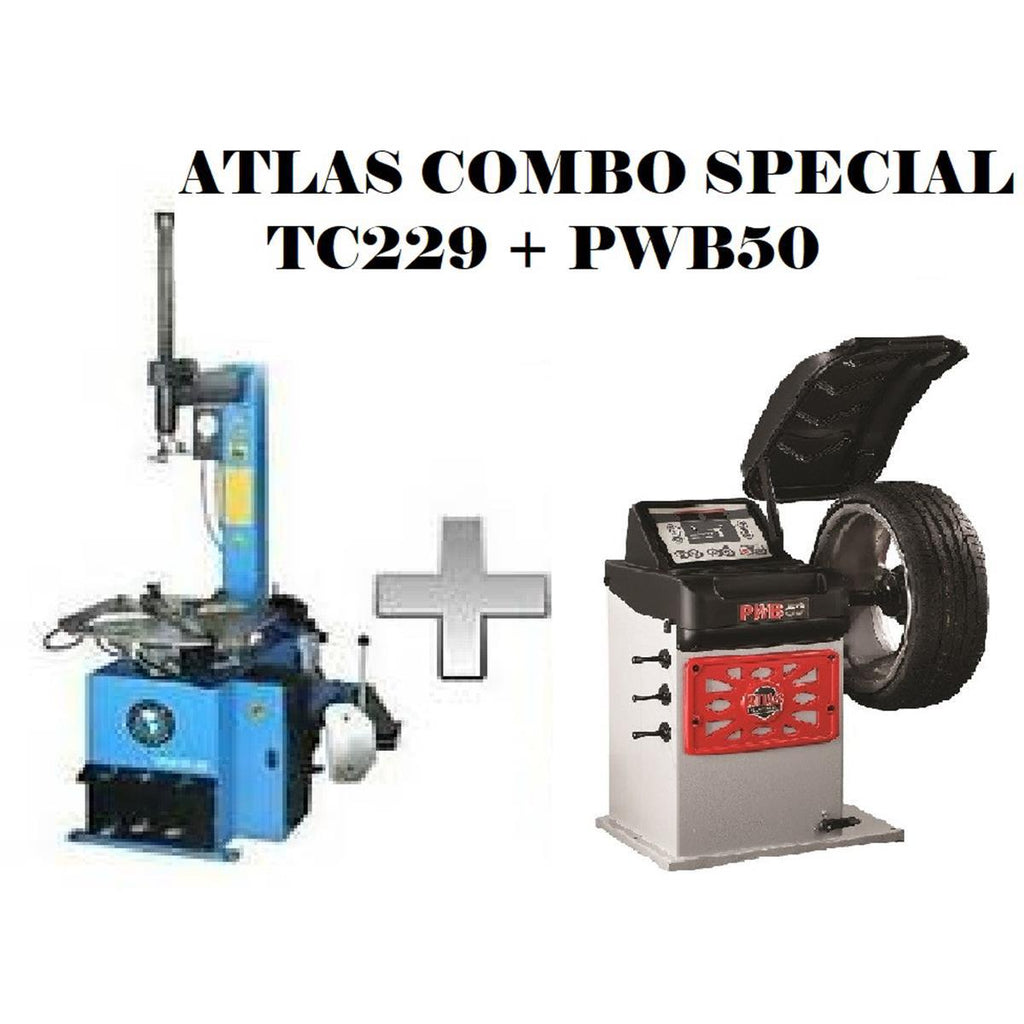

This combination package includes the Atlas® TC229 rim-clamp swing arm tire changer & the Atlas® Platinum PWB50 computerized spin balancer. This combination is perfect for farms, homeowners, and all sizes of shops looking to change and balance tires. Both machines are 110volt operated, and both are CE approved.
Atlas® TC229 Specifications
- External Locking Rim Dimensions (From Narrow Position to Wide Position): 9 3/4" to 23 1/4"
- Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 11 5/8" to 25 1/4"
- Maximum Tire Diameter: 39"
- Maximum Wheel Width (Bead Breaker): 13"
- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs.
- Bead Breaker: 5500 LB. Force
- Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
- Electric Requirement: 110volt

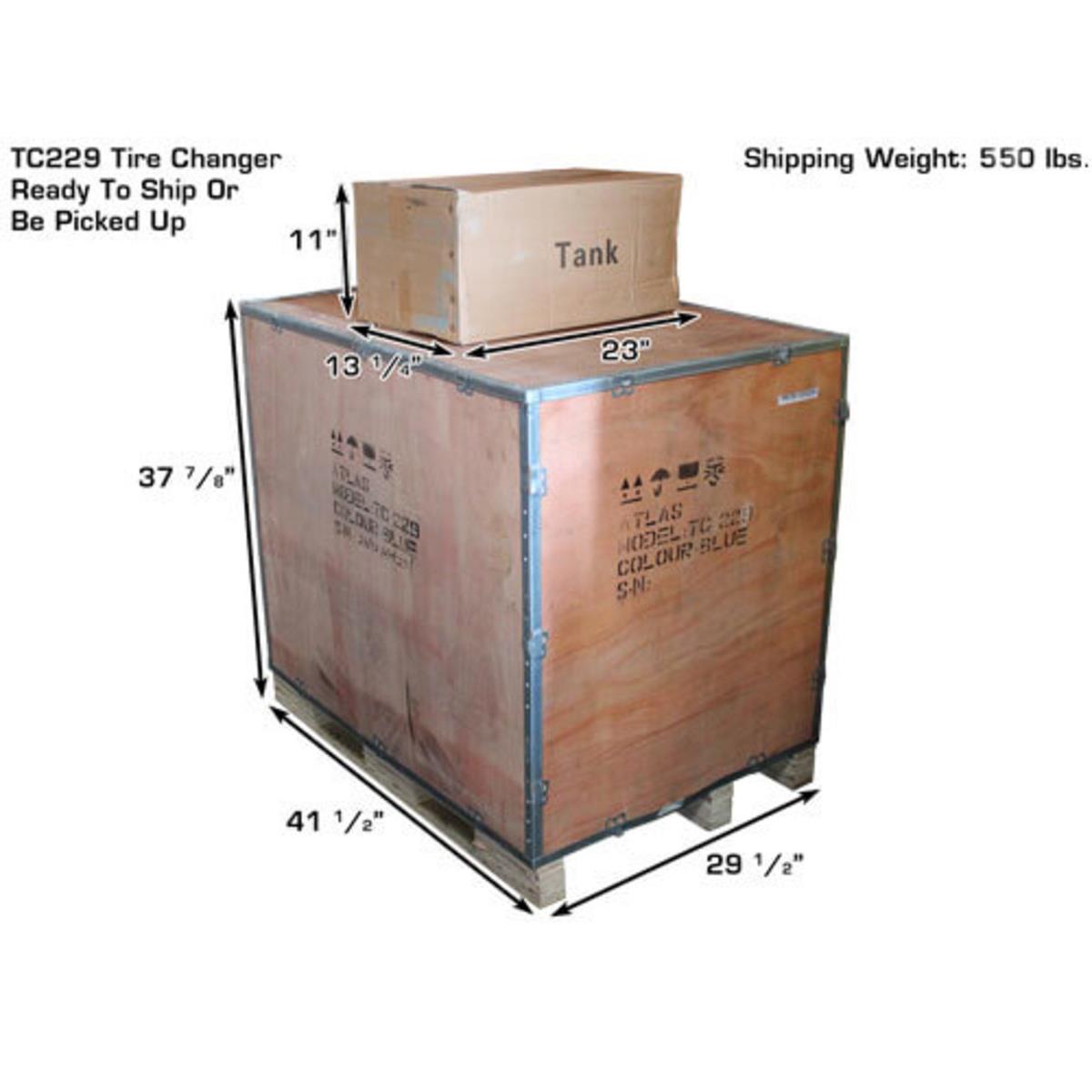

- Shipping Weight: 550 lbs

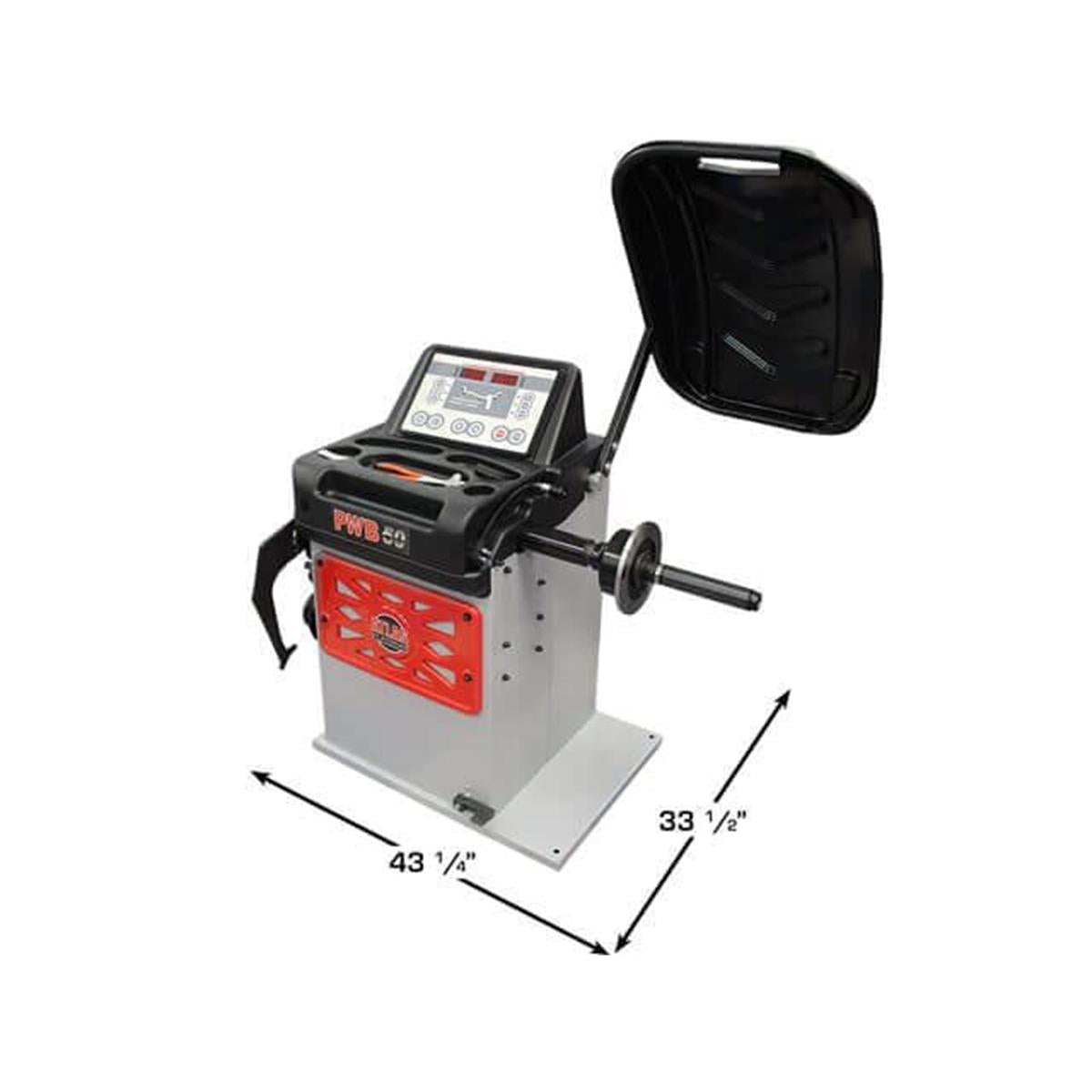

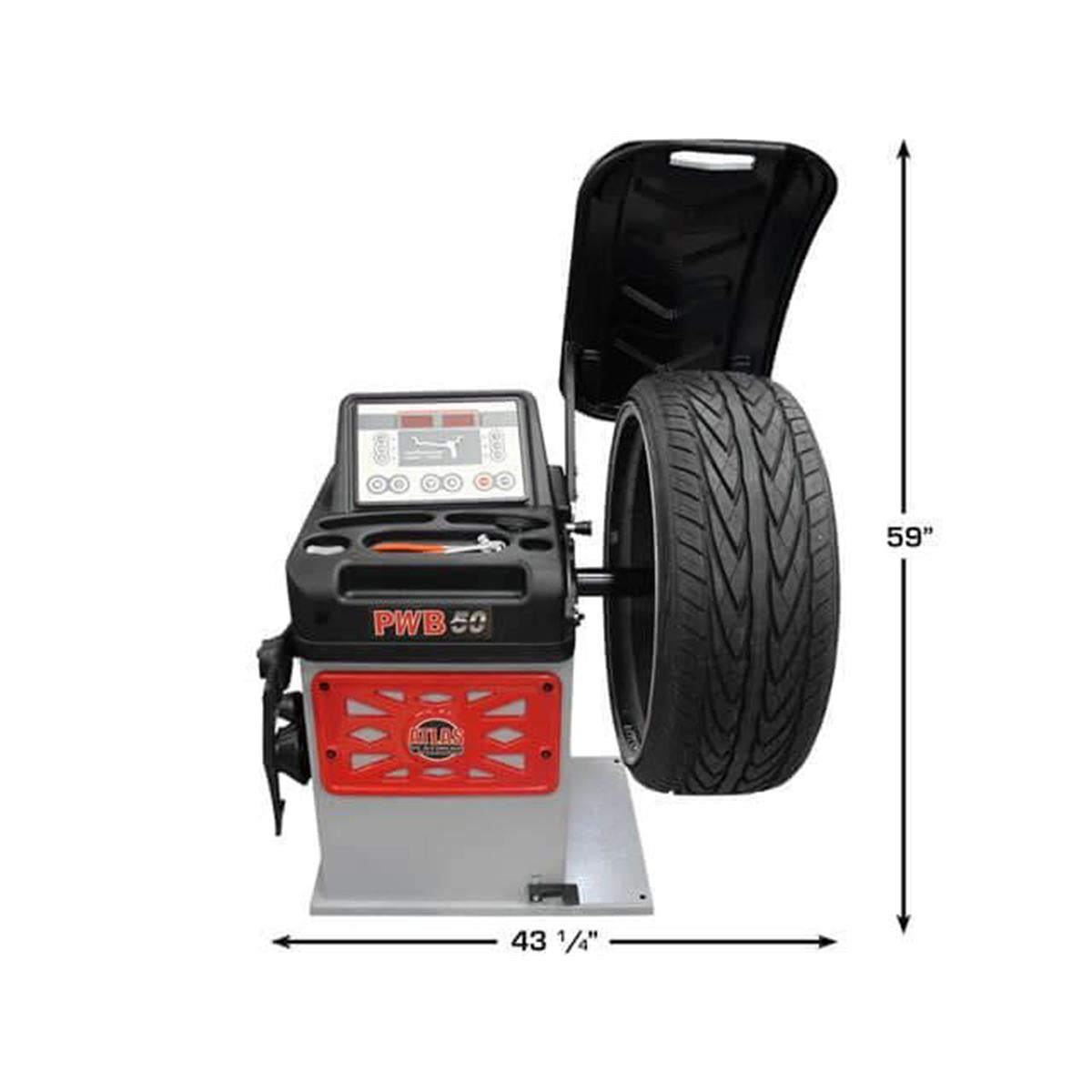

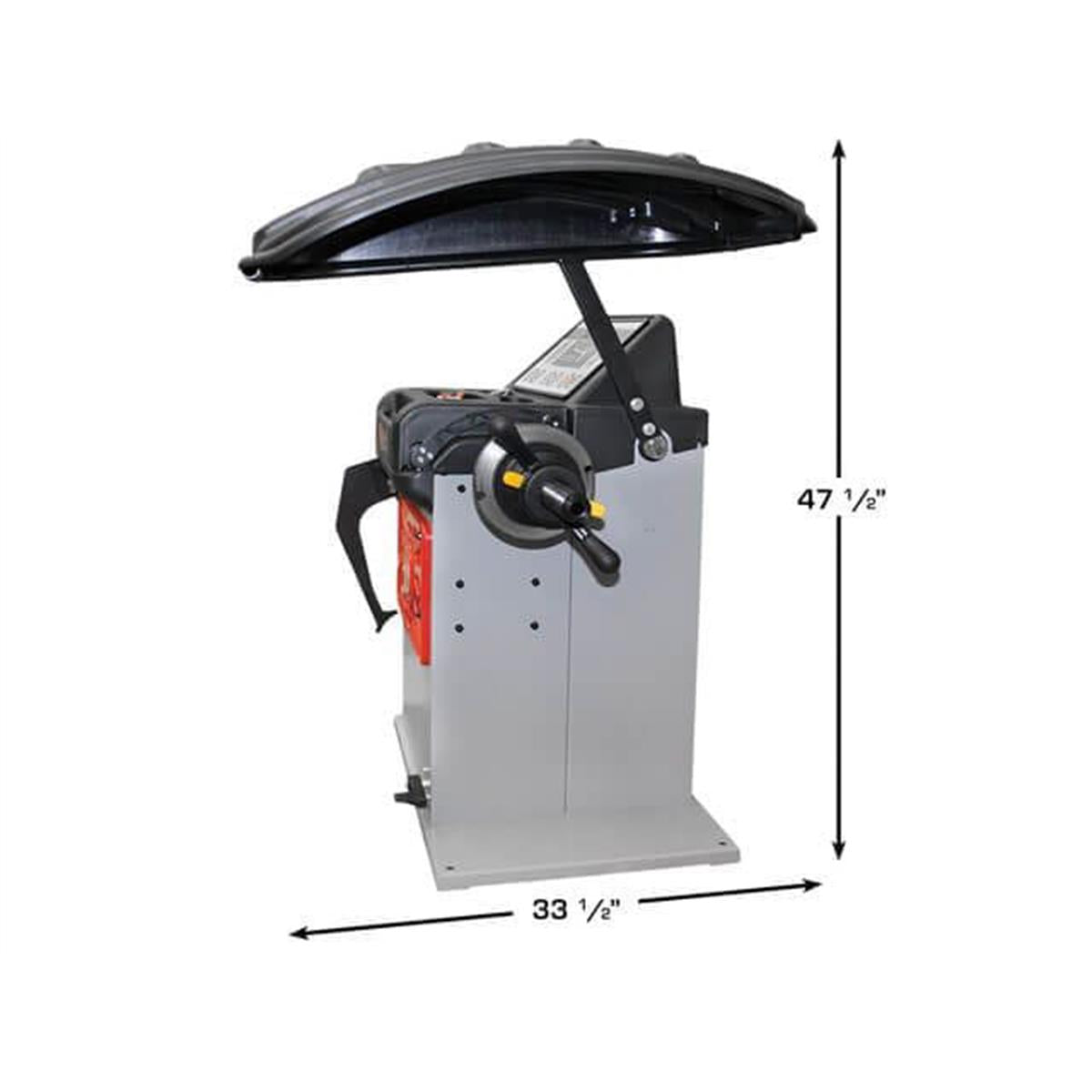

Atlas® Platinum PWB50-110V Specifications
- Max Tire Diameter: 43"
- Rim Sizes (Cars & Light Trucks): 10" - 30"
- Rim Width: 1 1/2" - 20"

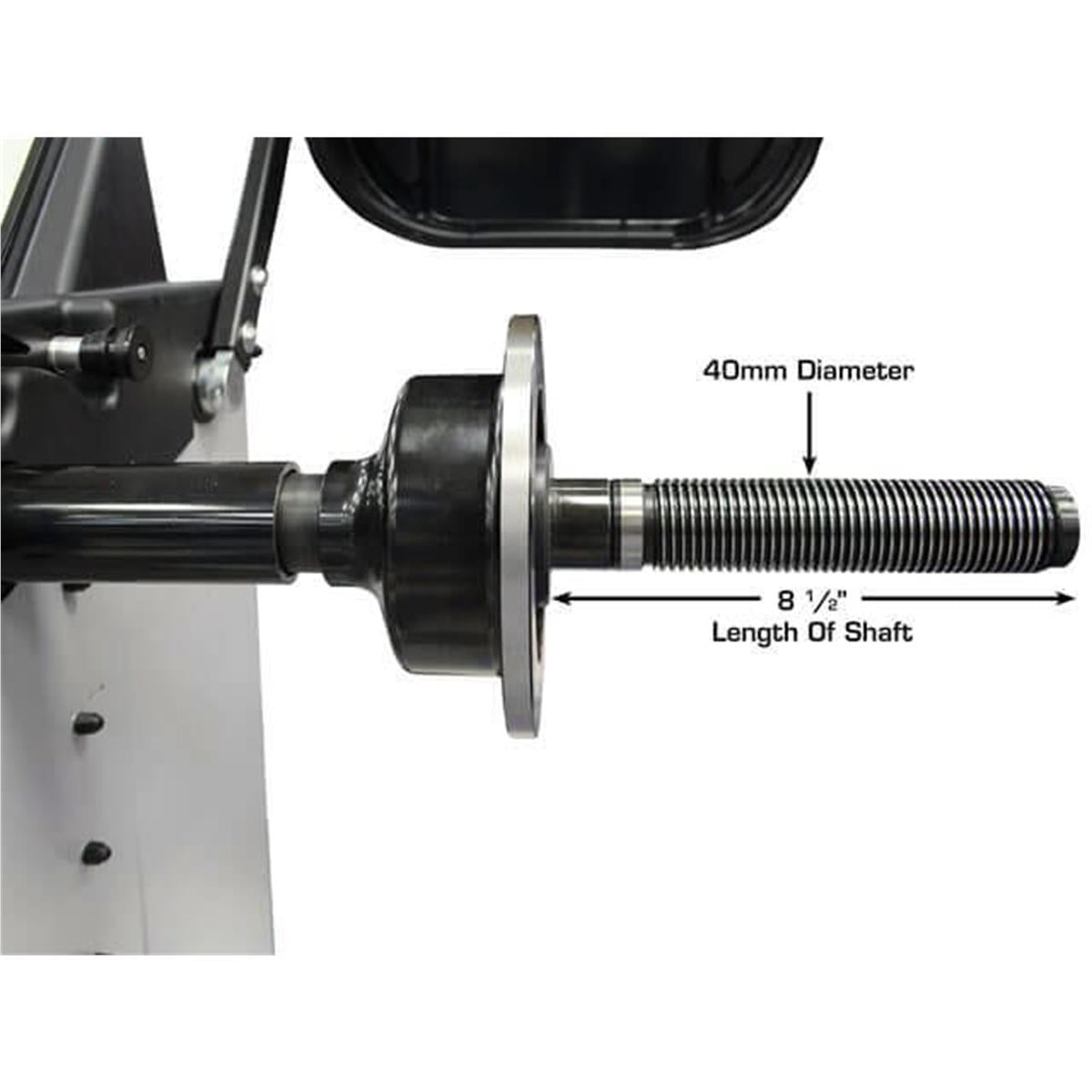

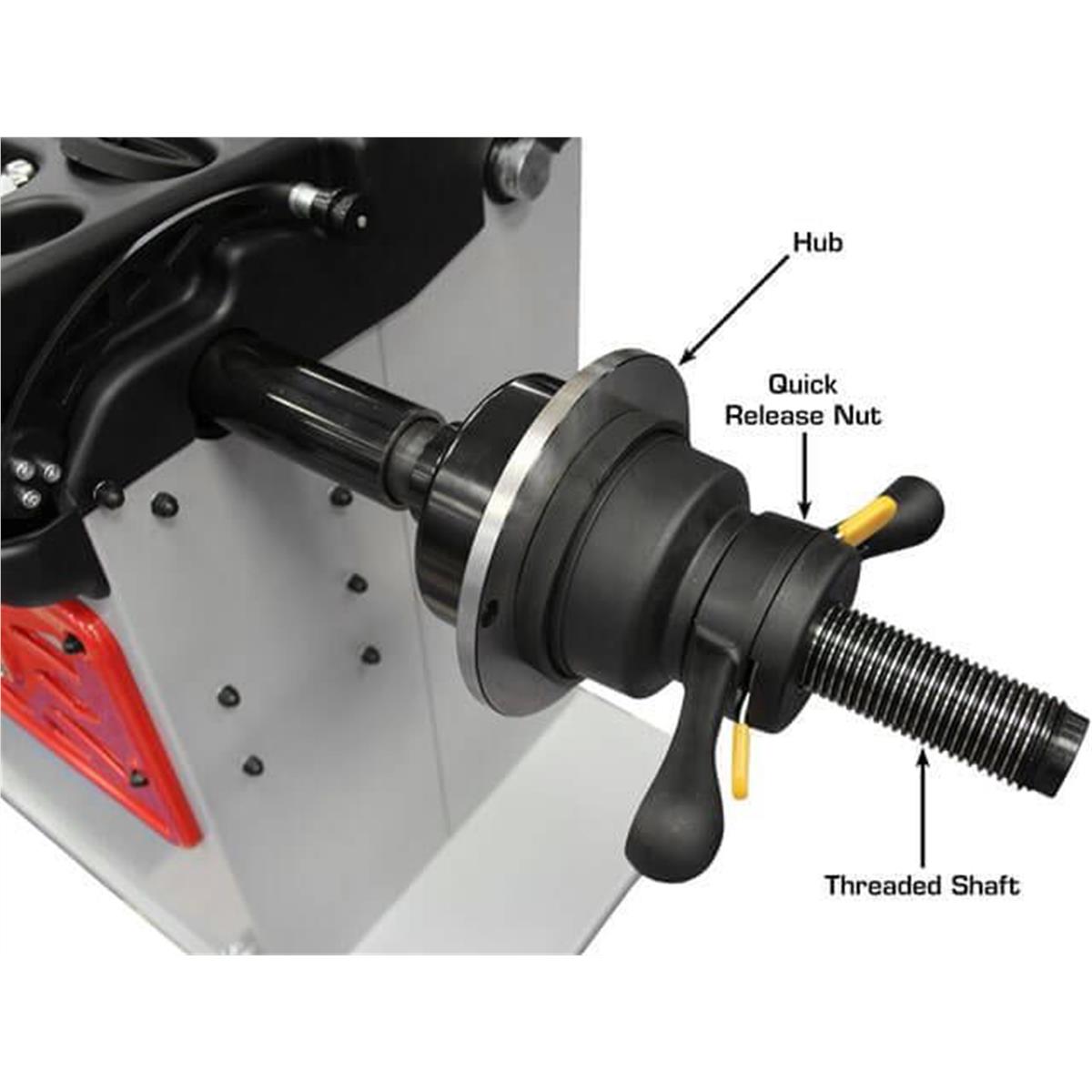

- Shaft Size: 40mm
- Max Wheel Weight: 165 lbs.
- Balancing Speed: 130 rpm
- Data Entry: Automatic 2D
- Measurement: Standard or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibrating: YES
- Cycle Time: 7 seconds
- Electric Requirement: 110volt
- Shipping Weight: 230 lbs
