Features and Benefits:
- Computer Controlled Motorized Spin Balancer

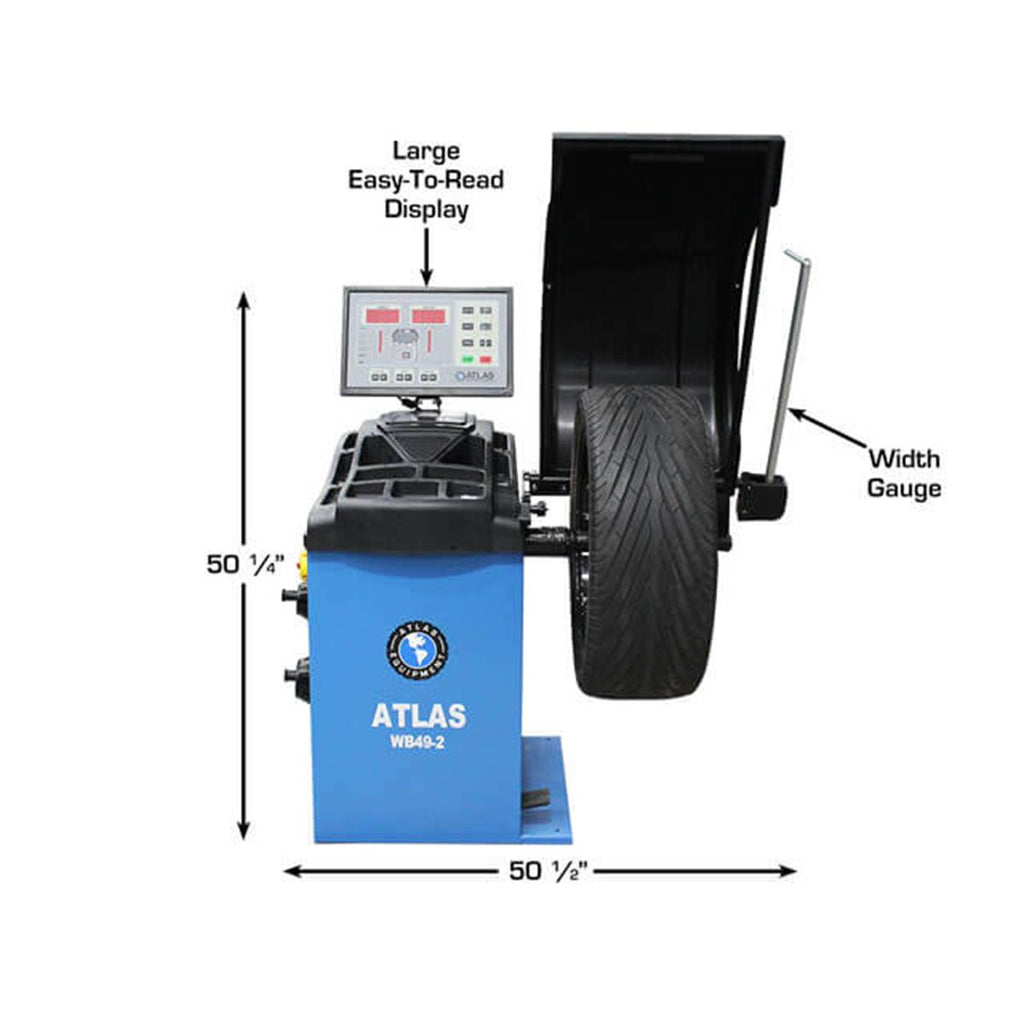

- Raised, Easy to Read Display
- Large Wheel Weight Tray

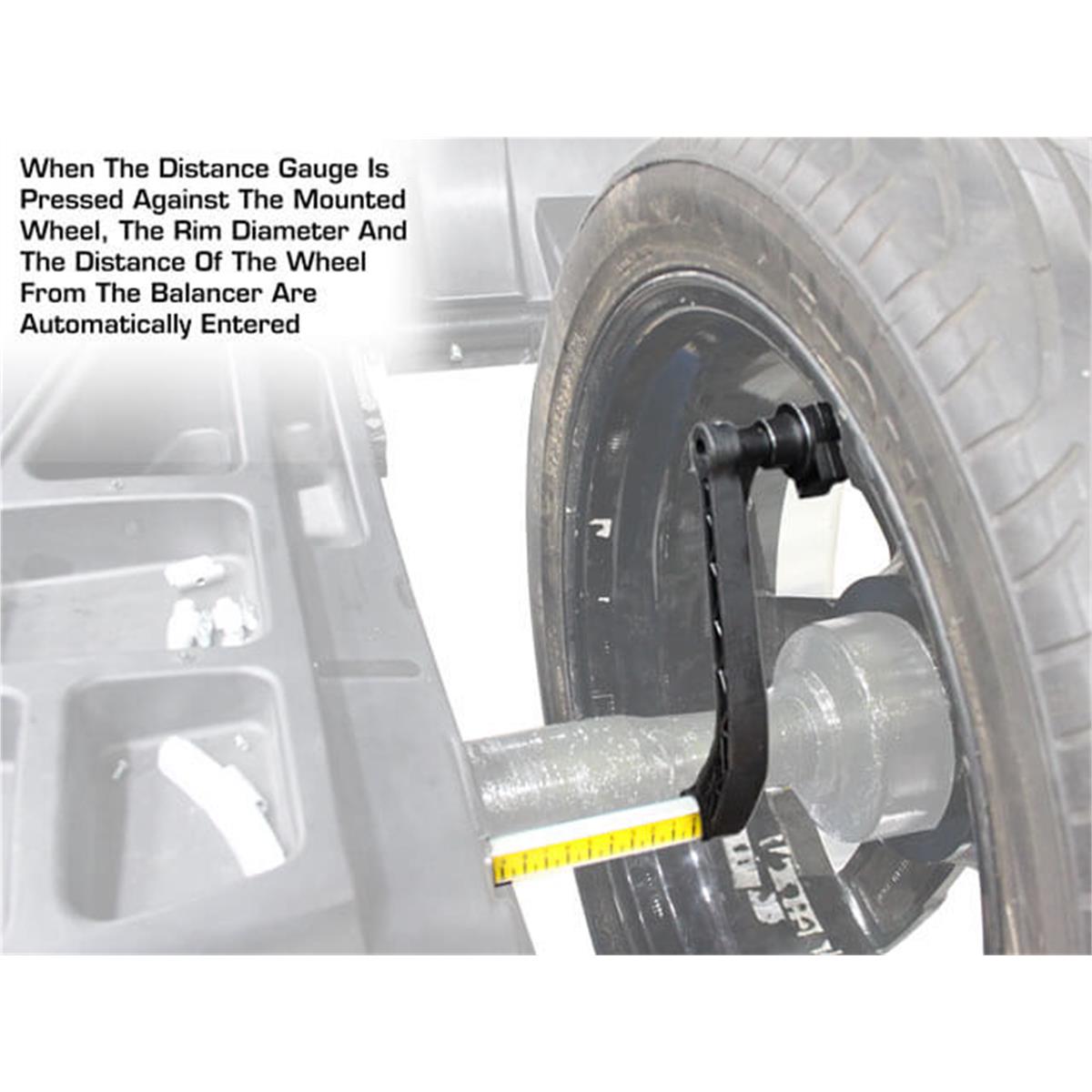

- Automatic 3D Data Entry
- Split-Weight Function for hiding weights behind spokes
- Automatic LED Light
- Auto-Positioning
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

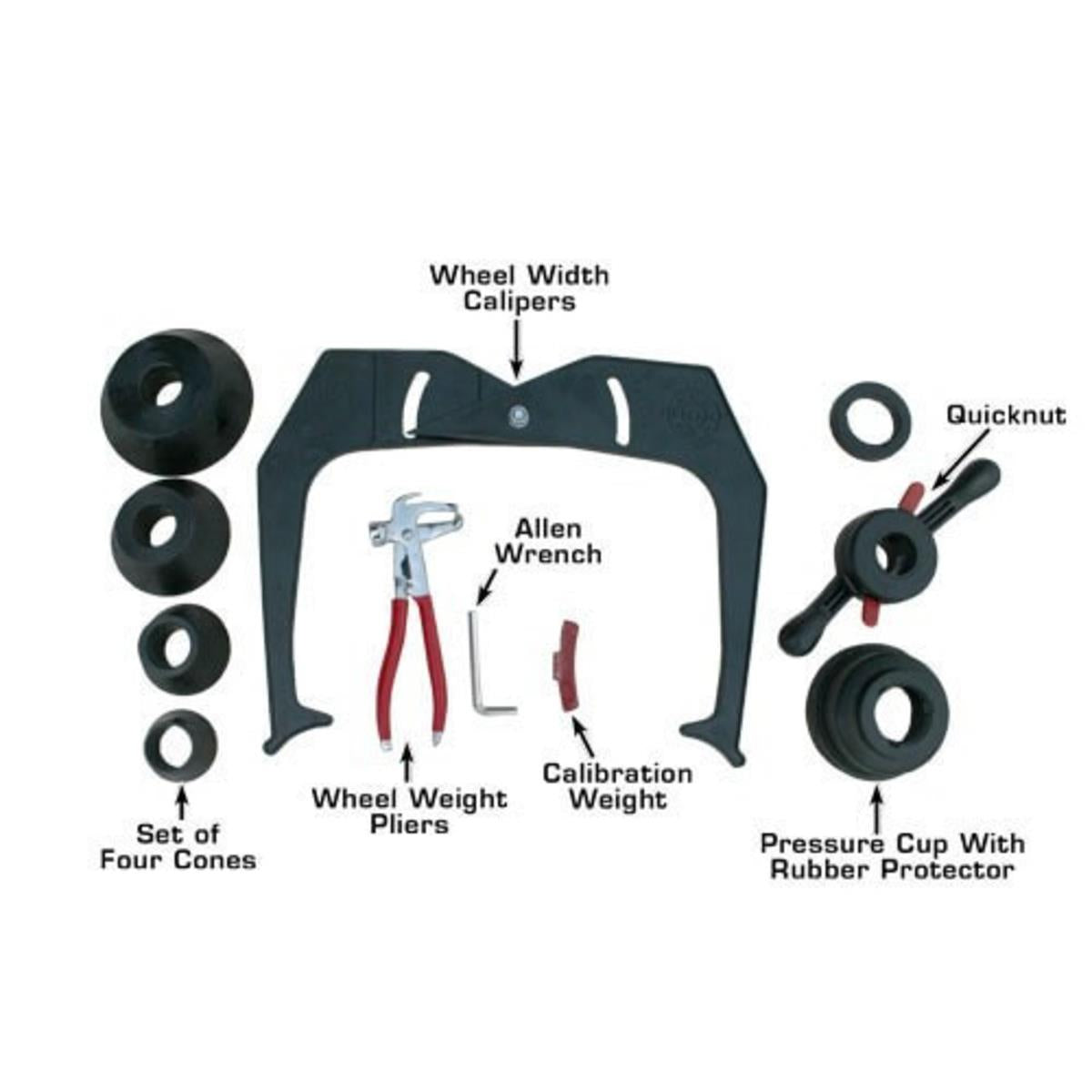

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty

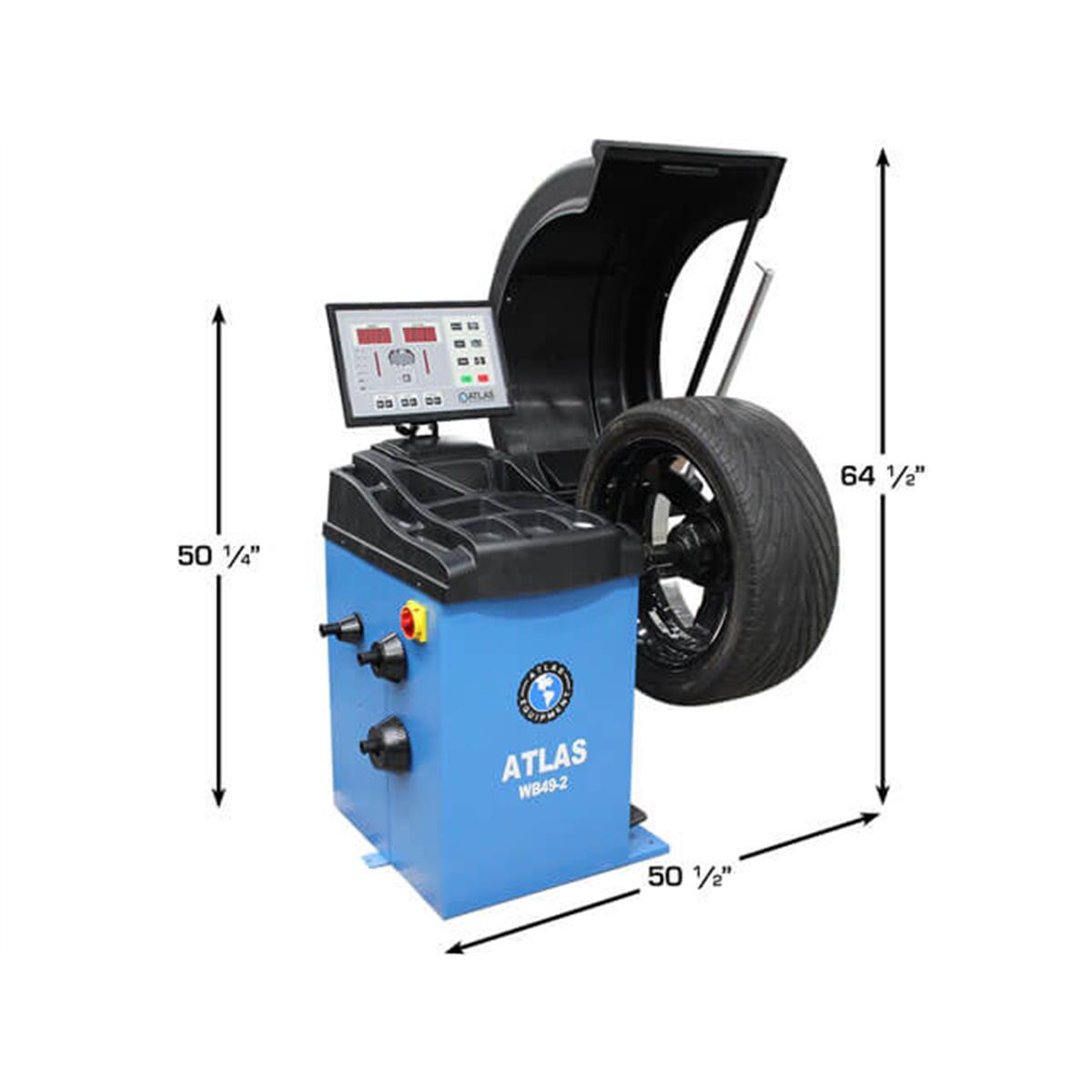

Atlas WB49-2 Specifications
- Max Tire Diameter: 39" (3" 6')
- Rim Sizes (Cars And Light Trucks): 10"-32"
- Rim Width: 1 1/2"-20"

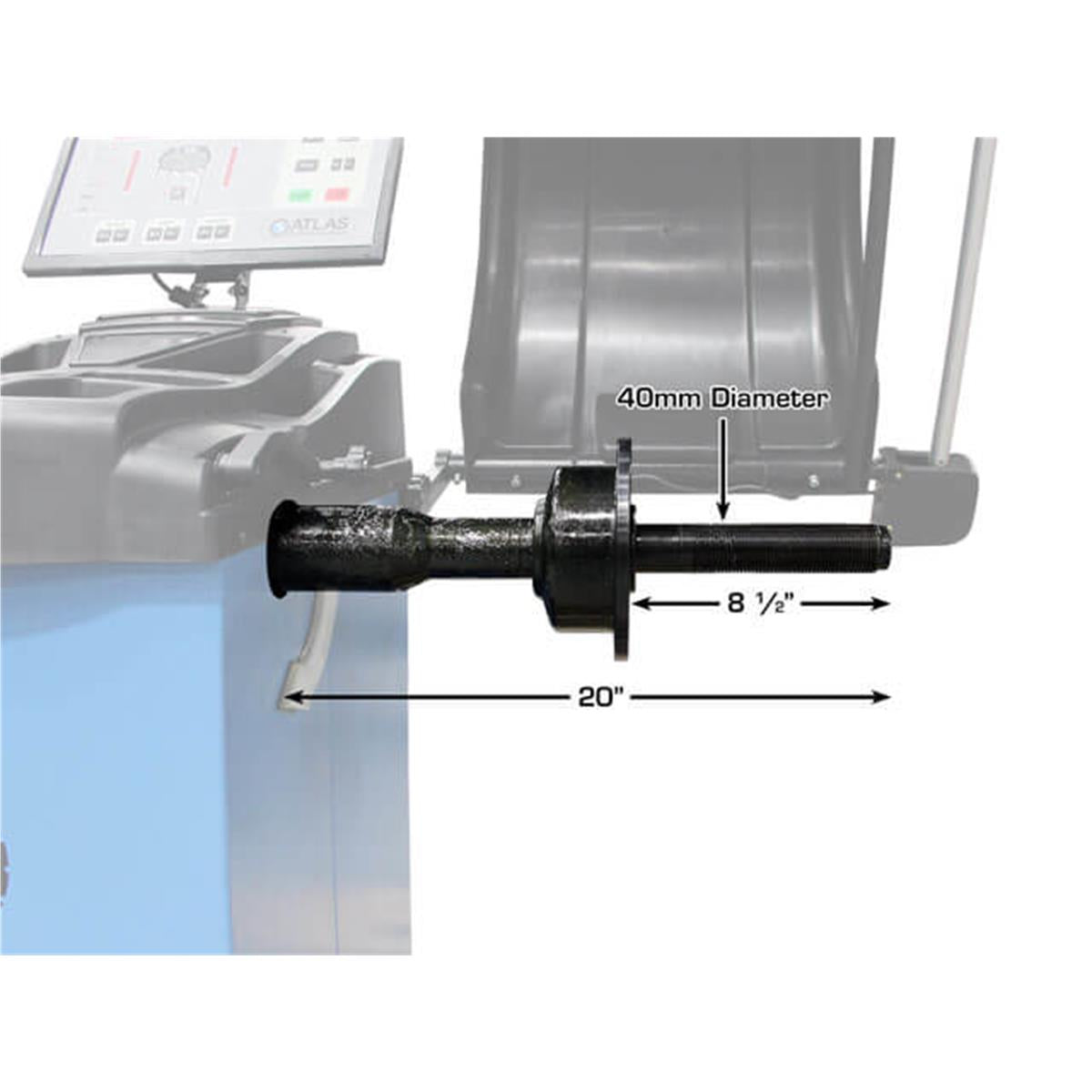

- Shaft Size: 40mm
- Max. Wheel Weight: 150 lbs.
- Balancing Speed: 150 rpm
- Data Entry: Automatic 3D Optional
- Measurements: Standard Or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/4 HP
- Power Supply: 110volt
- Shipping Weight: 400 lbs.

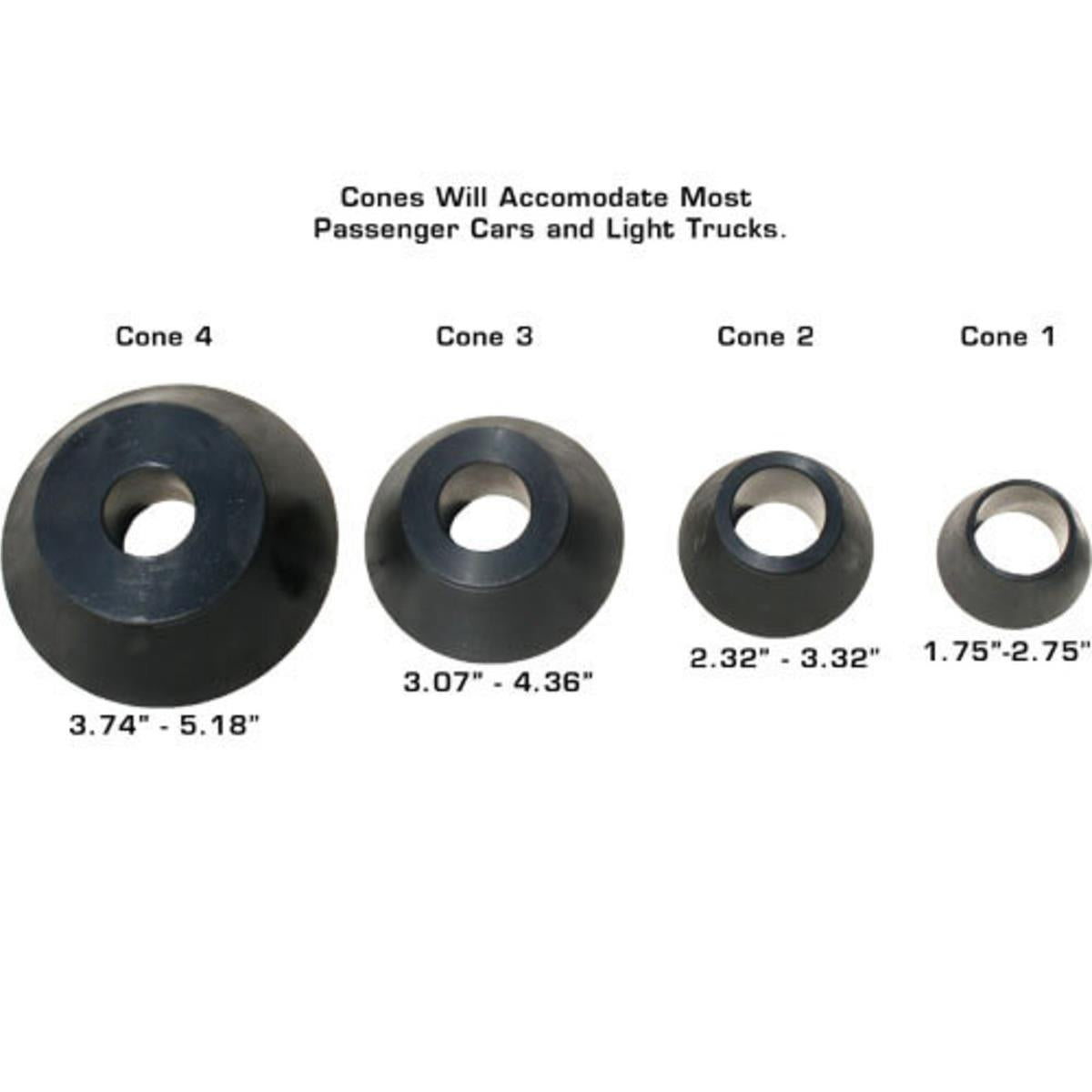

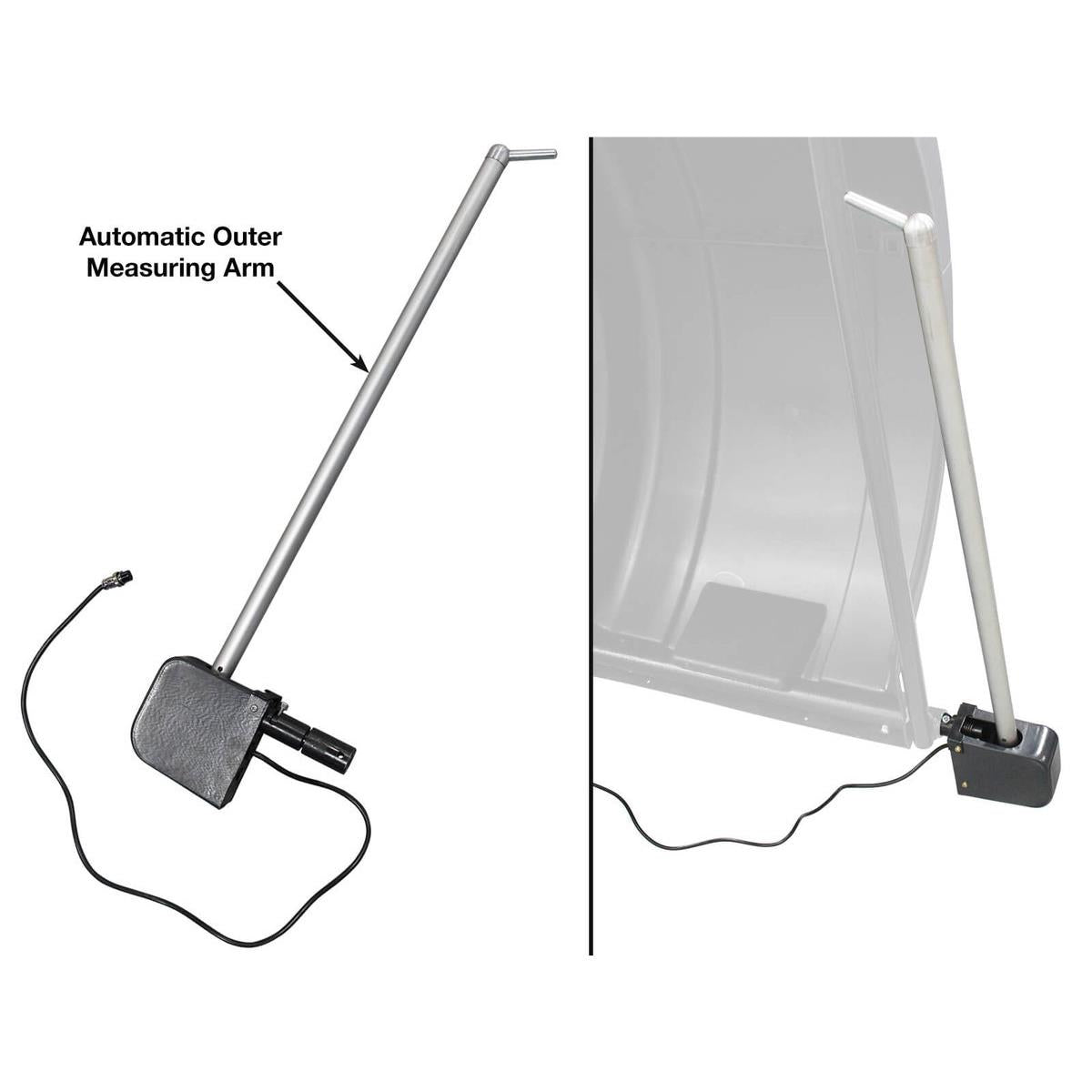

The Atlas WB49-2-PRO takes the already top of the line Atlas WB49-2 wheel balancer and adds an additional gauge to automatically measure the width of the rim, meaning all three necessary dimensions are automatically entered for balancing. The WB49-2 comes standard with an all new LED display monitor style and a chassis designed to give the balancer a far more practical and aesthetic look. Other luxury features of the WB49-2 are the Split-Weight Function for discreetly locating weights behind the spokes and an automatic LED light to illuminate the inside of the rim when applying weights. The Atlas WB49-2-PRO is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The WB49-2 handles a wide range of wheels on the market with a capability of up to 32" diameter rims. The WB49-2 comes with a set of 4 cones to accomodate center holes from 1.75" up to 5.18". An adapter kit made up of a larger cone and a spacer, the Light Truck Adapter Kit , can be purchased separately to handle bigger center holes and more off-set wheels. The Atlas WB49-2-PRO wheel balancer balances wheels that weigh up to 150 LB. Many balancers claim that they have 150 lb wheel capacity. There is a BIG difference between the shaft being able to support a 150 lb wheel assembly and the balancer being able to accurately balance the 150 lb. wheel assembly.

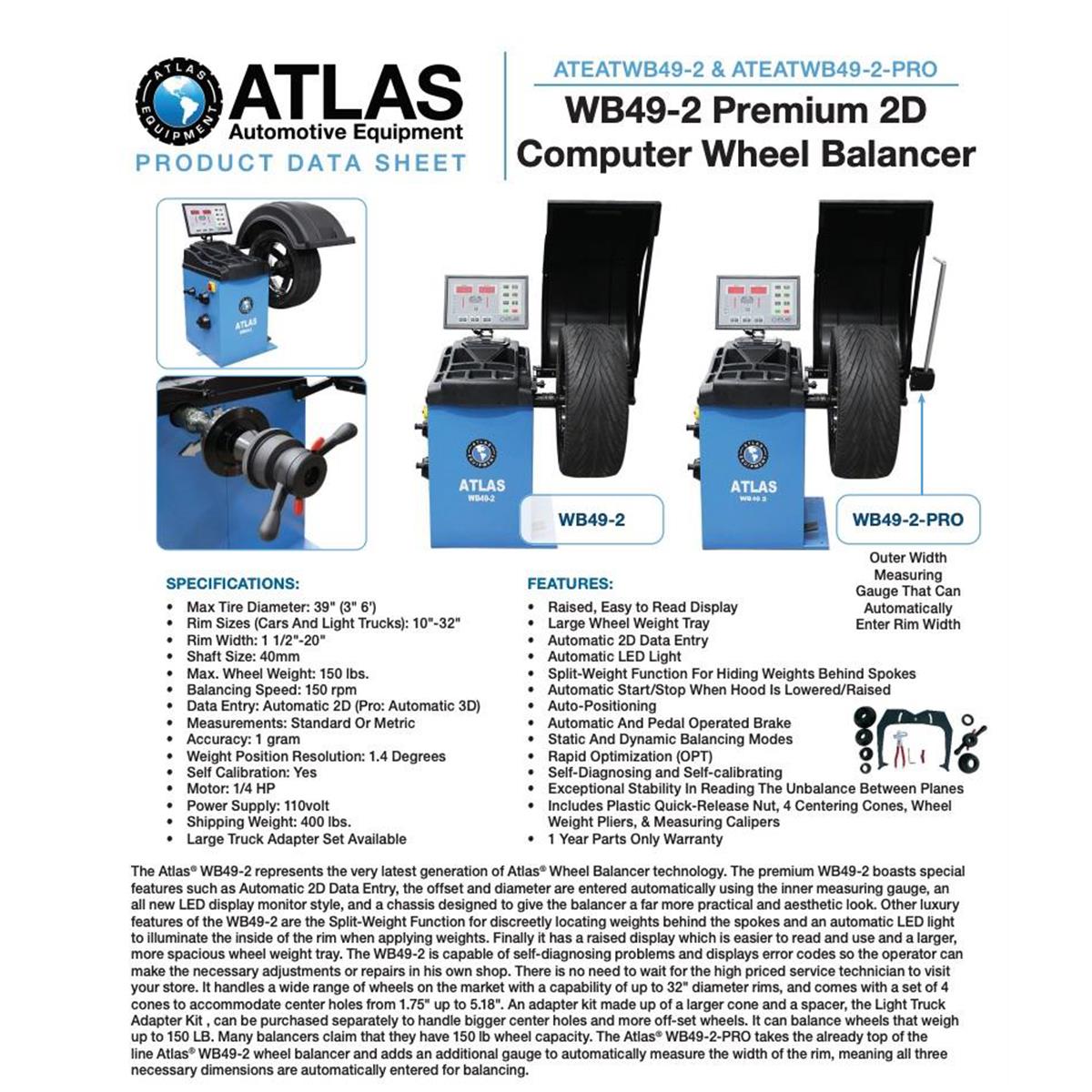

Document.
Atlas WB49-2 Pro Manual
