Features and Benefits:
- Auto Pressure - Hold the trigger and the unit automatically releases pressure when complete.
- SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
- Optimal Pressure - Range Set to a minimum of 30KN up to a maximum of 60KN of pressure.
- Dial Control - The rotational dial allows the user to easily set the desired pressure settings.

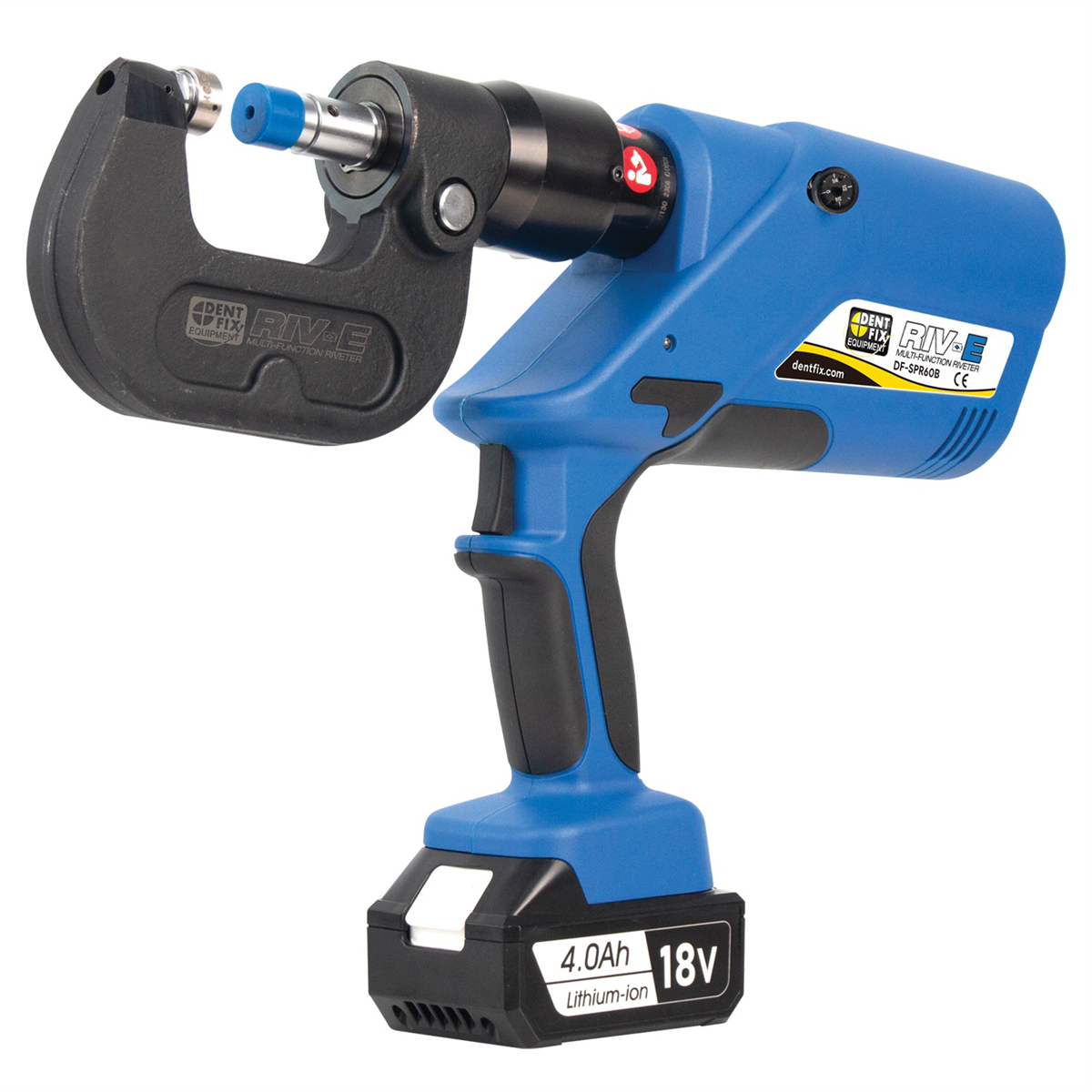

The DF-SPR60B RIV-E Mutli-Function Riveter is an easy to operate panel replacement tool.Highly repeatable and reliable results eliminate guess work and allow for quicker panel replacement repairs.Remove and insert multiple types of rivets to bond automotive panels during the replacement procedure: 3.3mm & 5.3mm Self-Piercing Rivets (SPR), Flow Form Rivets (FFR), Hole Punching, and Flattening. Optional equipment can be purchased separately that will enable this riveter to install Blind Rivets.MAX PRESSURE: 6 Tons (60 KN)MIN PRESSURE: 3 Tons (30 KN)WEIGHT: 11 lbsWORK PERIOD: 3-5s/timeWORK STROKE 35-40mmSPR DIE SETS: 3.3mm & 5.3mmEXTRACTION DIE SET: YesFLOW FORM DIE SET: YesPUNCH DIE SET: YesFLATTENING DIE SET: YesMOTOR VOLTAGE: 18V DCBATTERY: DC 18V 4AH, Lithium CHARGER: AC 100V-240V 50-60HRZCHARGE TIME: About 1 HourWORK TIME/FULL CHARGE: 300-400 Times (According to Rivet Type)
