Features and Benefits:
- Features a dual scissor arm and dual cylinder lifting system with a maximum load capacity (theoretical limit the lift can support under perfect conditions) of 10,000 kg in a straight line
- Strong power in various conditions is provided by an AC asynchronous motor (110V, 0.75KW, 13Mpa), and an aluminum alloy power unit with a CE-certified transformer included
- Floating movable platform: Composed of an upper floating platform and a lower angle adjustment frame
- Features a step-by-step limit rack design, coupled with an electromagnetic switch-driven locking tongue and equipped with a travel limit switch, significantly enhancing operational safety
- A throttle valve is installed at the front end of the oil pipe components to maximize oil circuit safety
- Handheld box with magnetic button control for lifting and lowering, providing safe and easy operation
- The tabletop is densely covered with tooling holes for selecting optional tabletop head components
- Streamline battery pack replacements and maintenance tasks, improving overall productivity while ensuring technician safety.

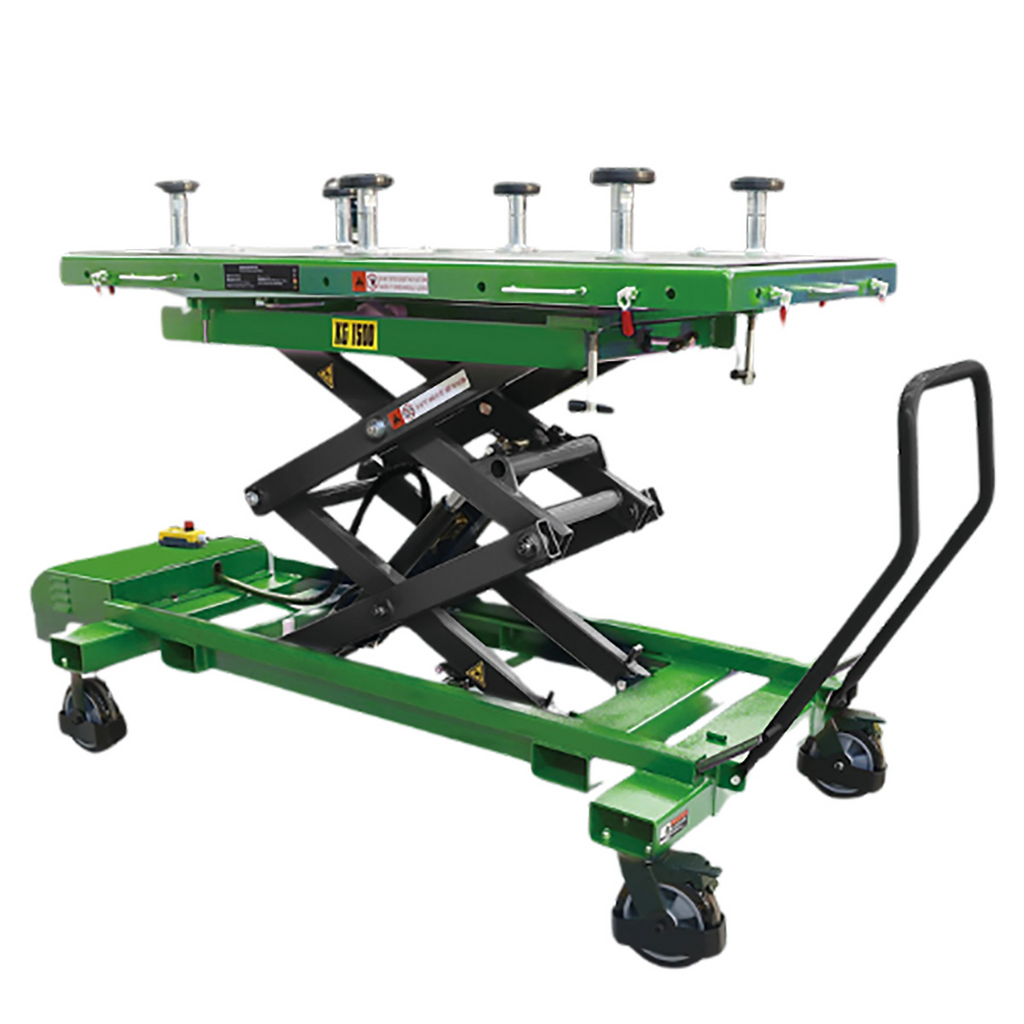

The TLT615A is a multi-functional lifting platform that is ideal for EV battery pack replacement as well as the maintenance of vehicle transmissions and engines.
