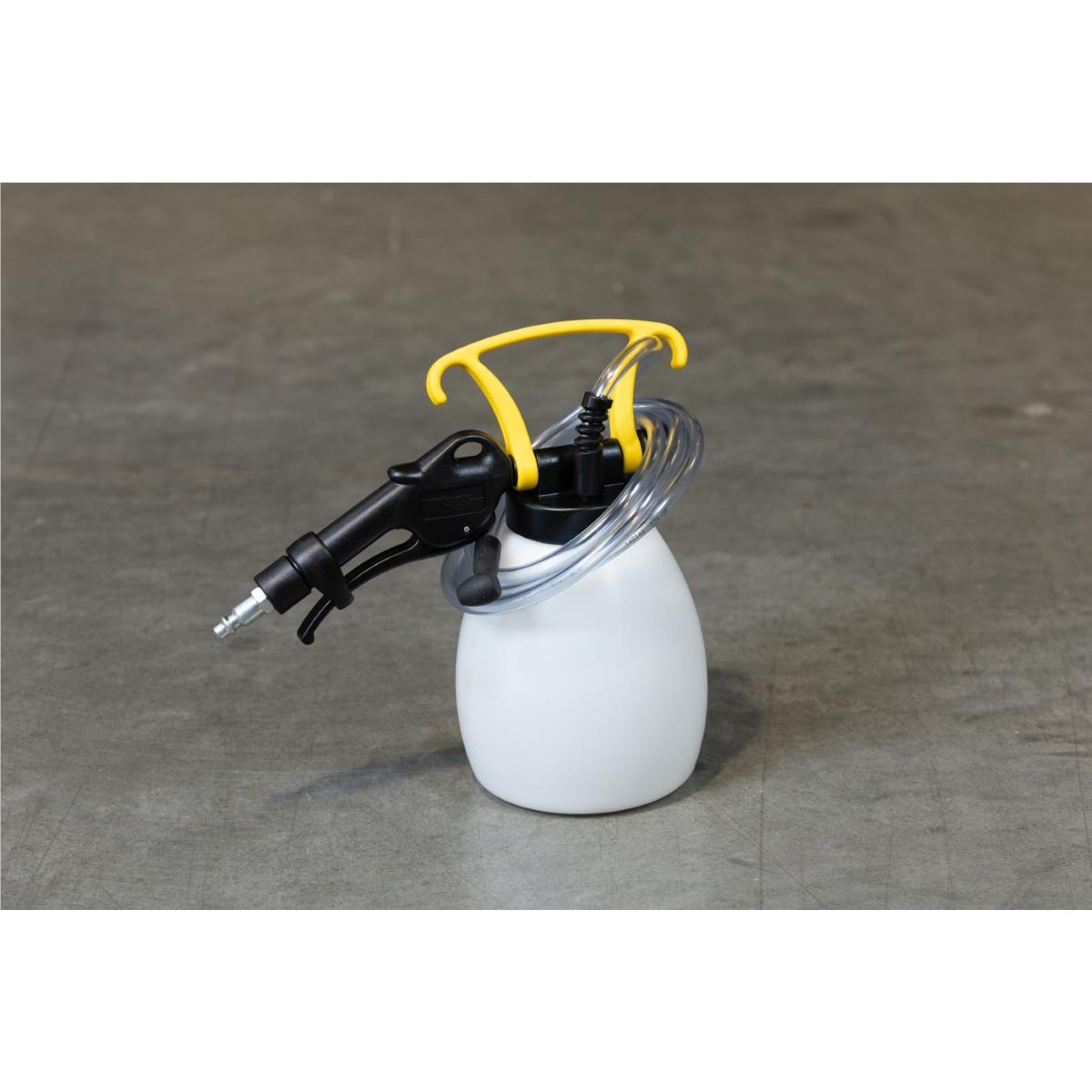

Features and Benefits:
- Compact 1.3 qt. (1.2 l) capacity reservoir

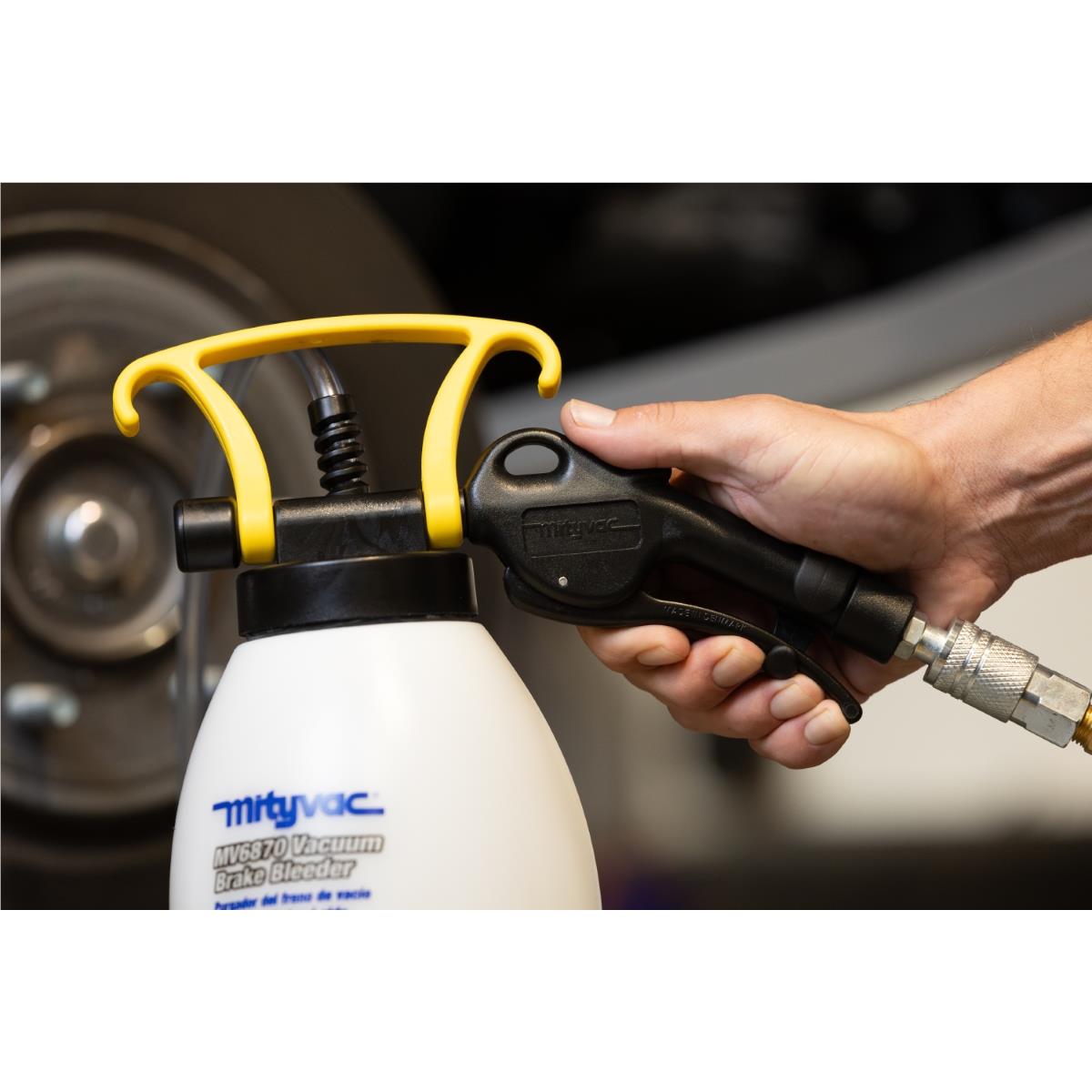

- Comfortable lever-action throttle with lock-on latch
- Durable, molded composite handle can take heavy abuse
- Automatic shutoff prevents overfill

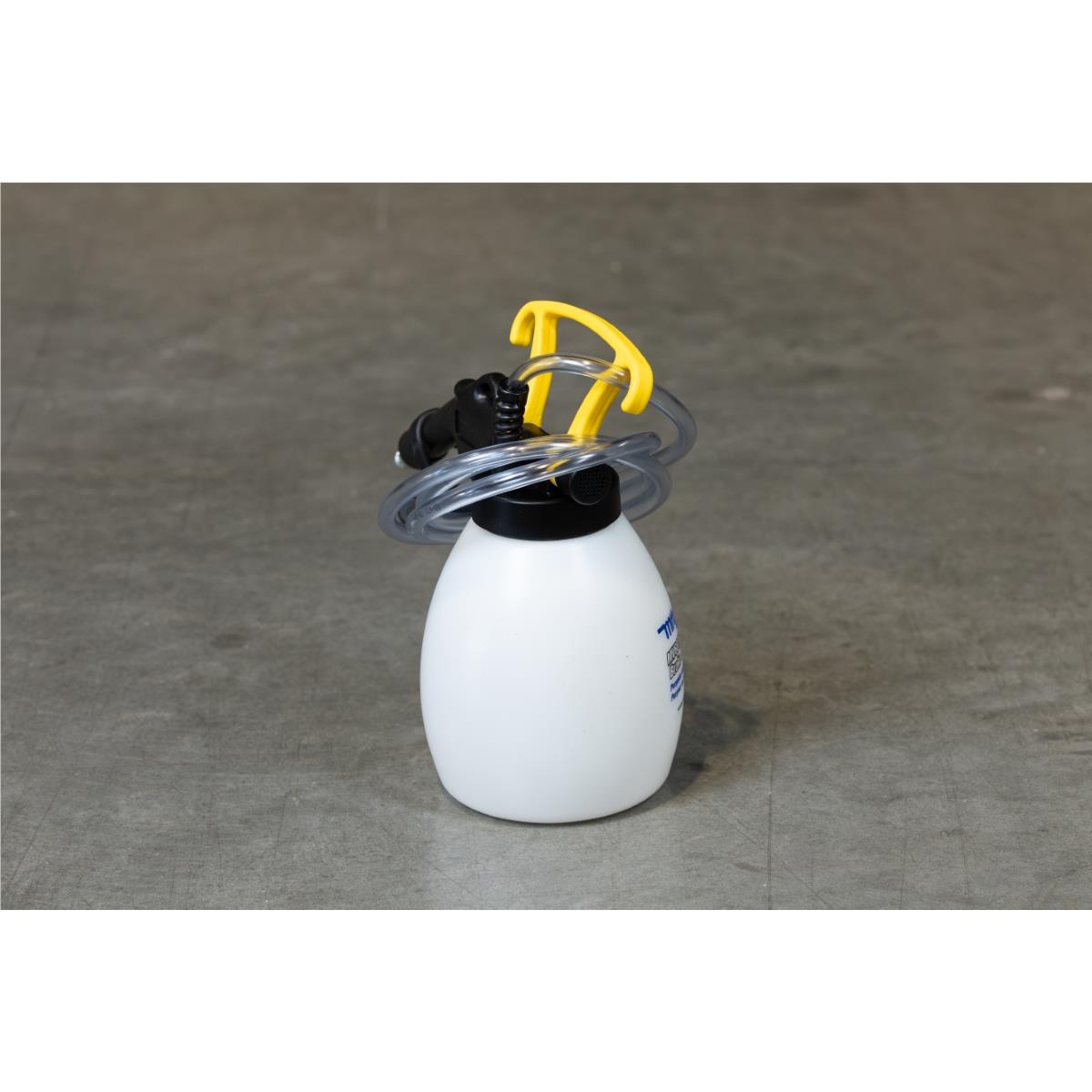

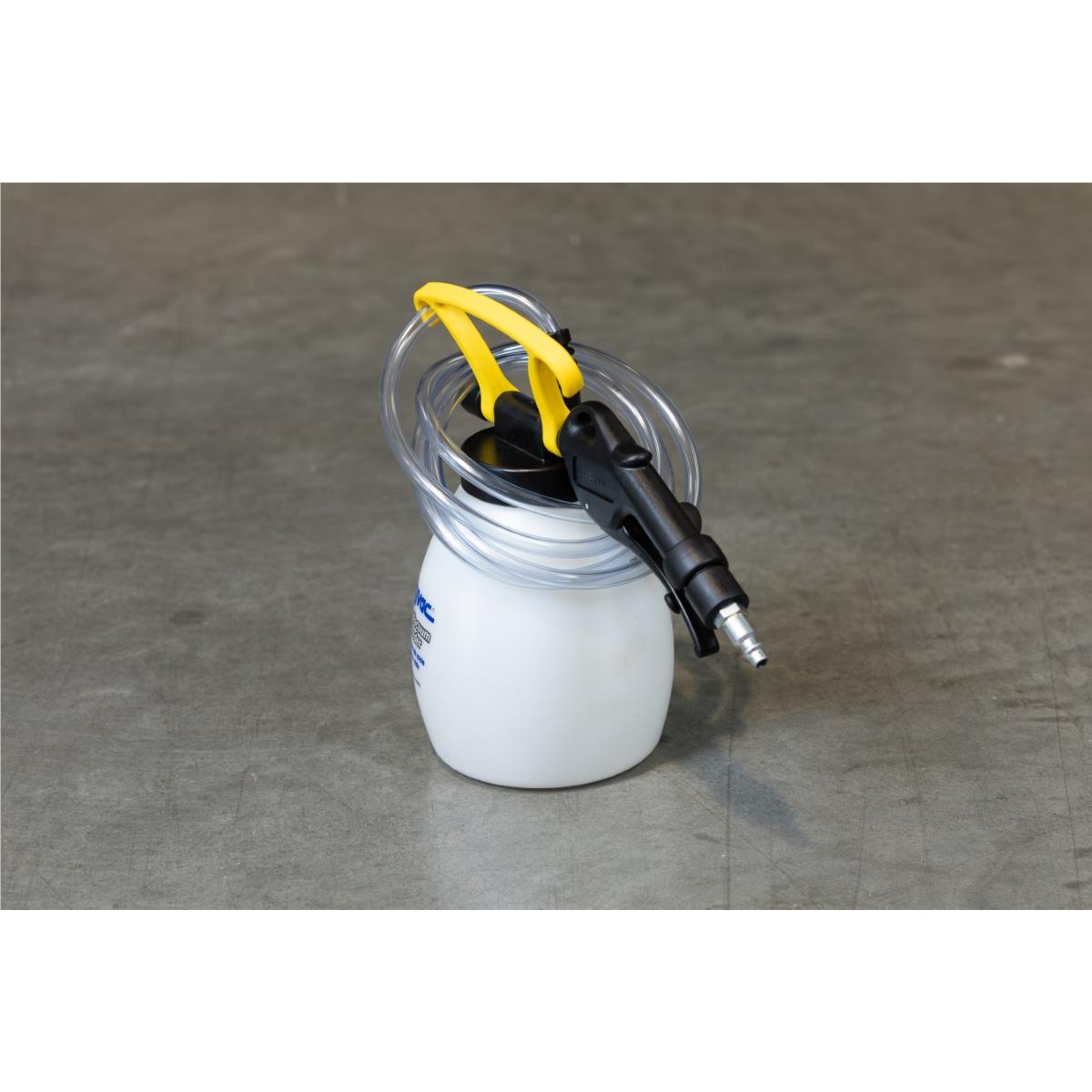

- Integrated hanging hook doubles as a hose wrap for convenient storage
- 4 ft. (1.2 m) long bleed hose with molded support
- Universal bleed screw adapter conforms to most common bleed screw sizes
- Integrated muffler for quiet operation
- Includes two replacement bleed screw adapters

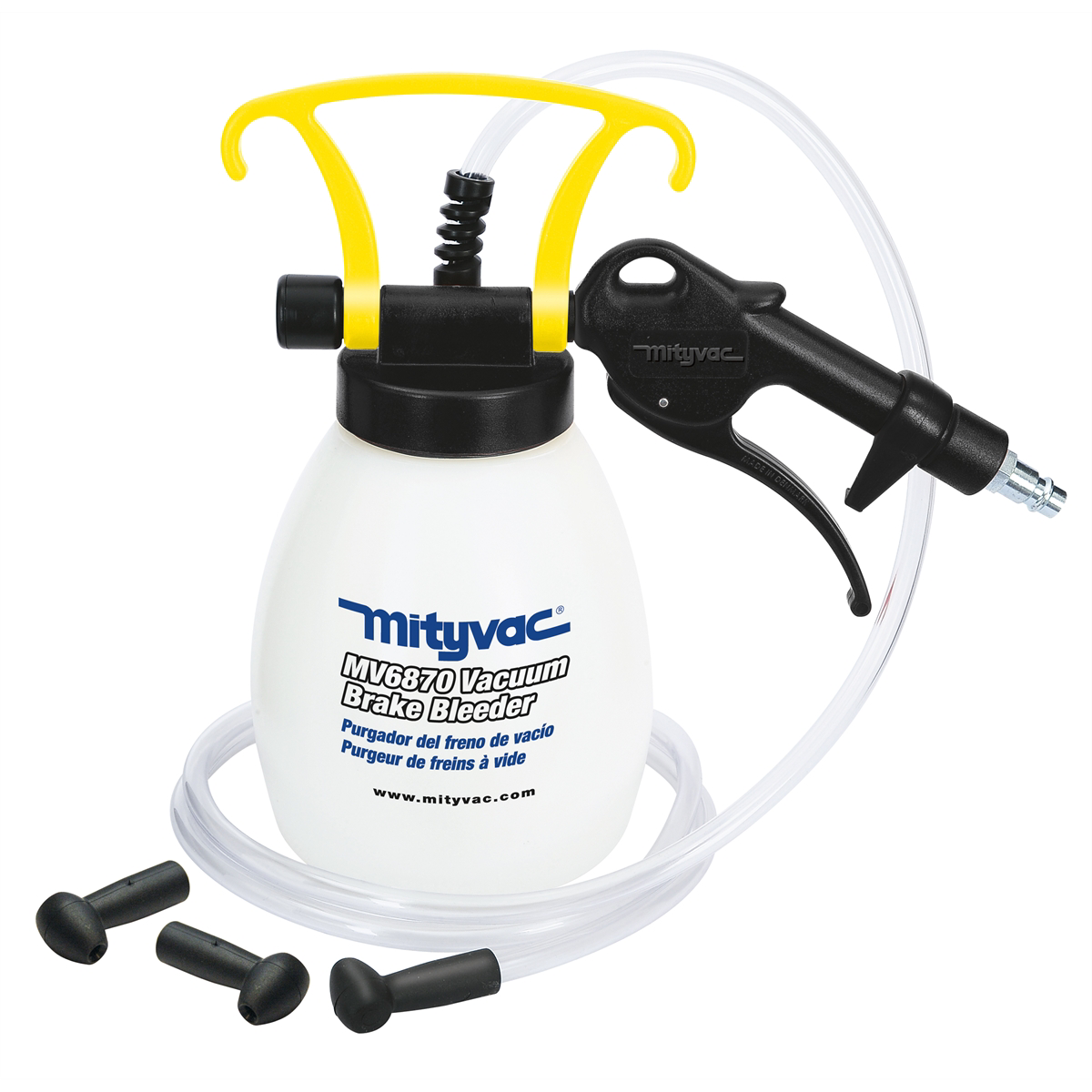

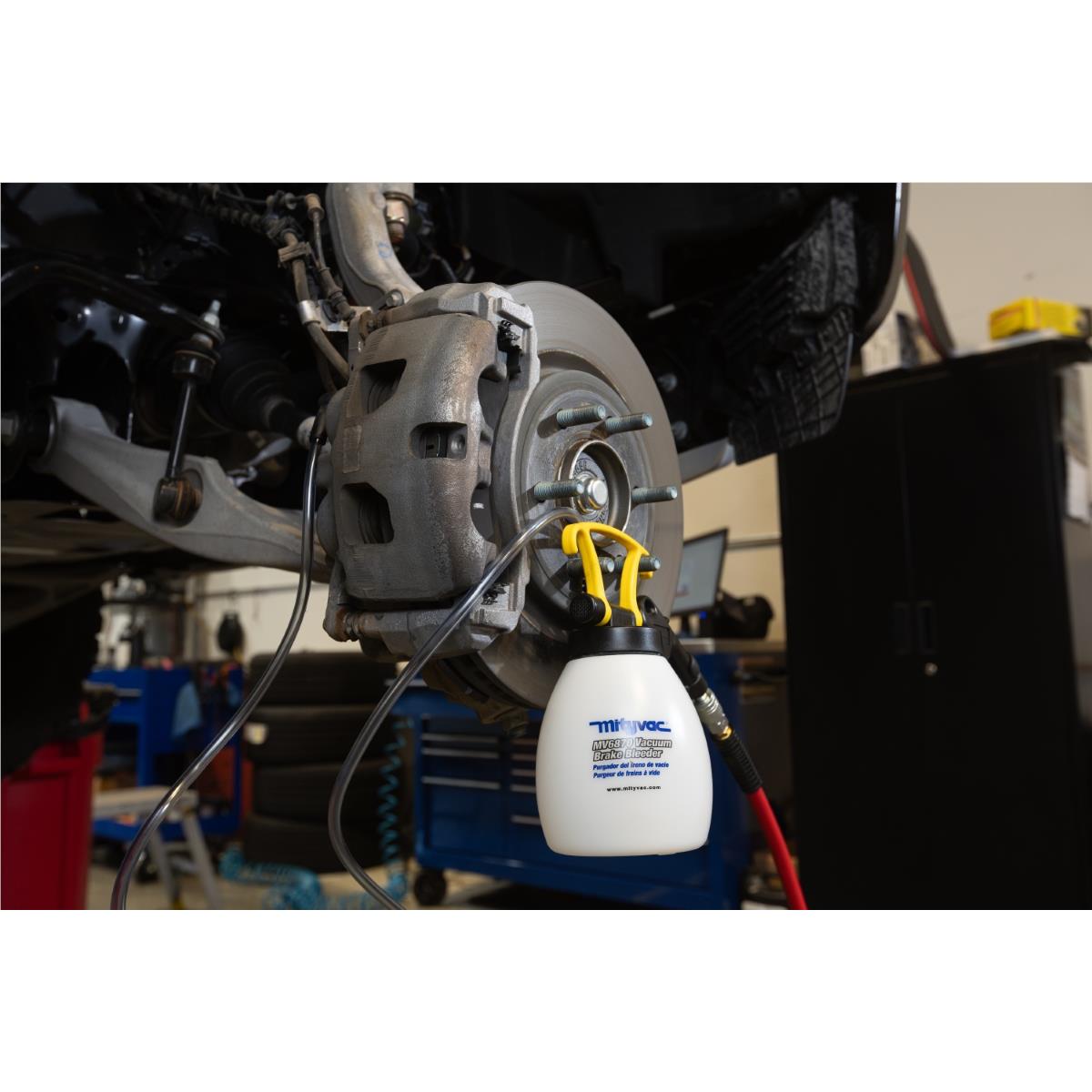

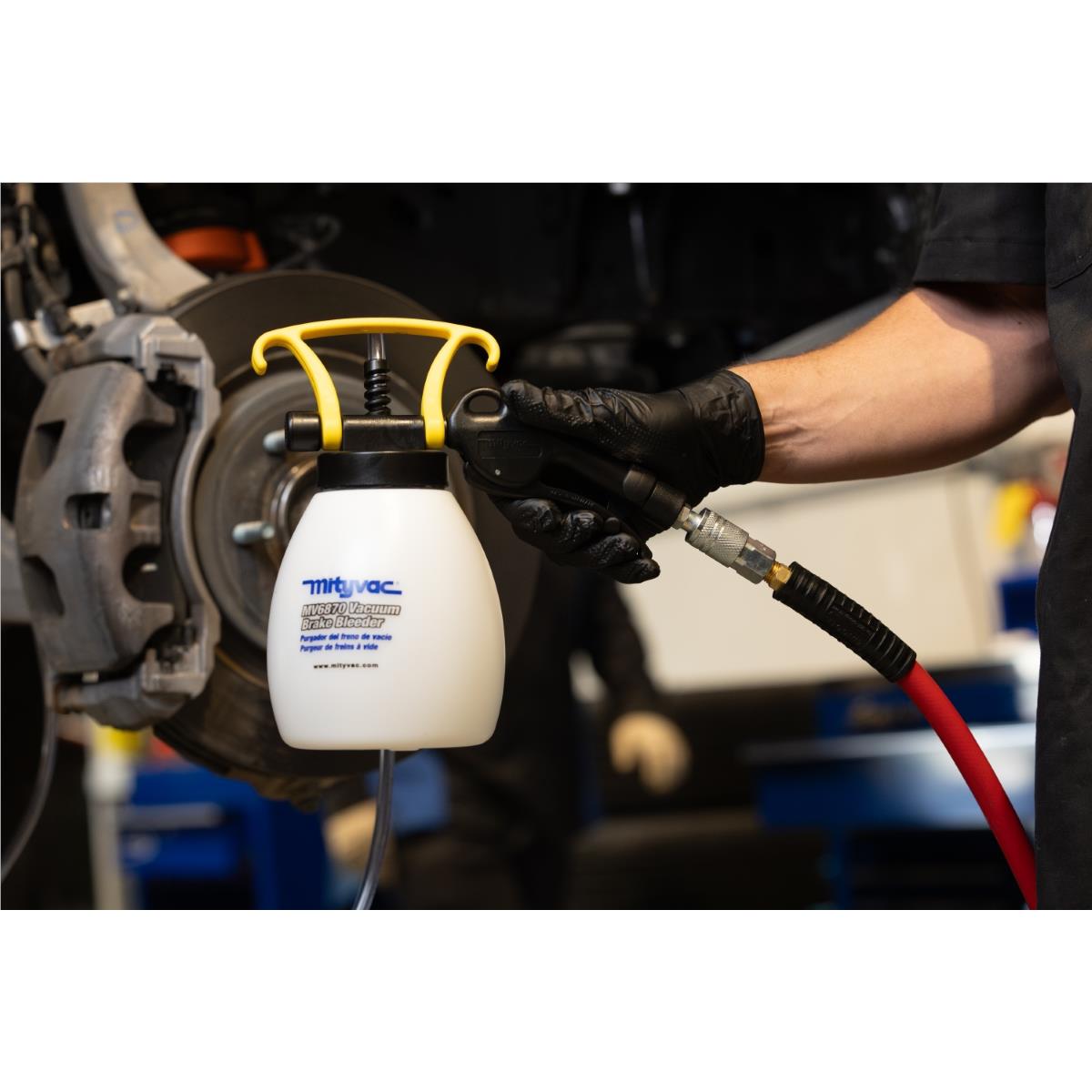

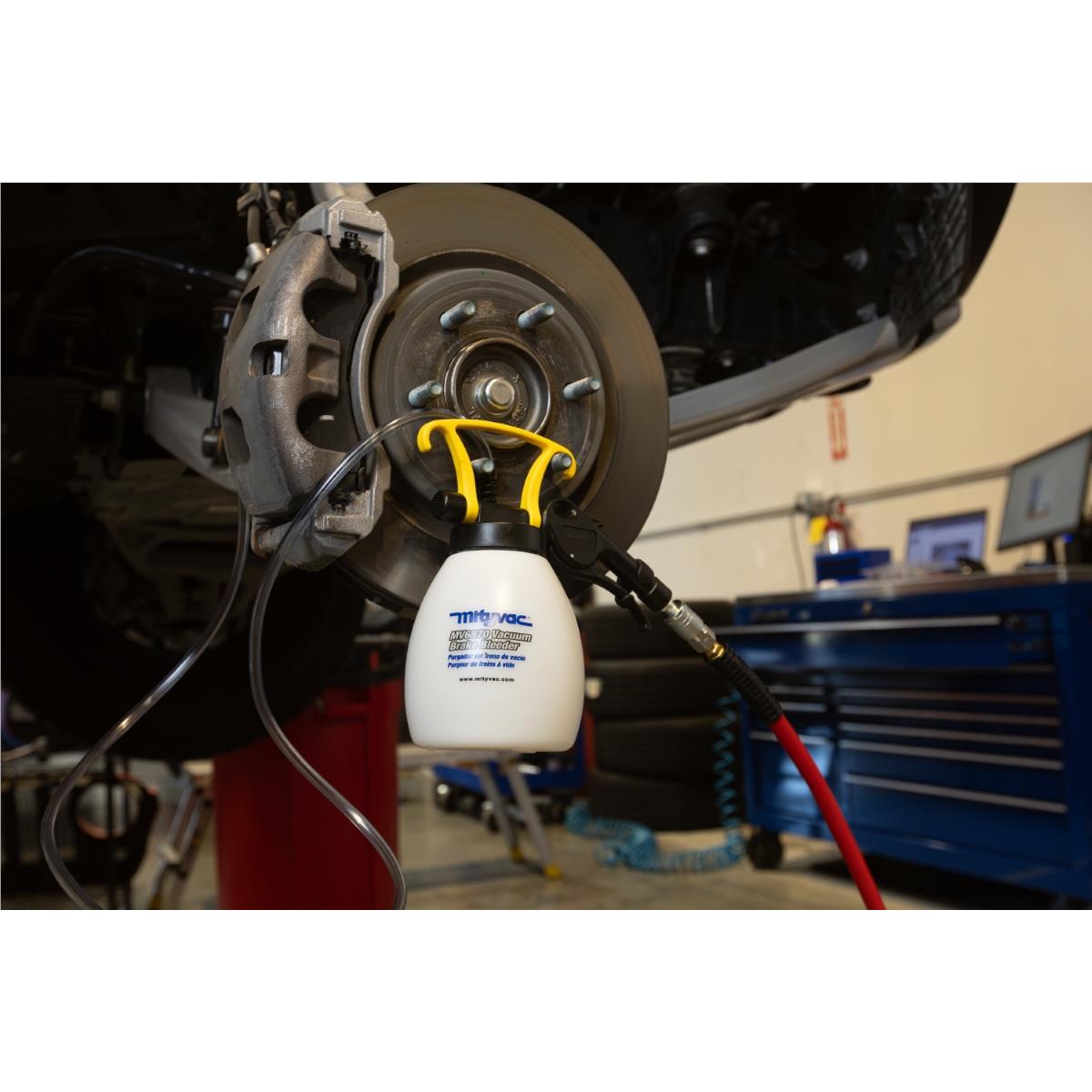

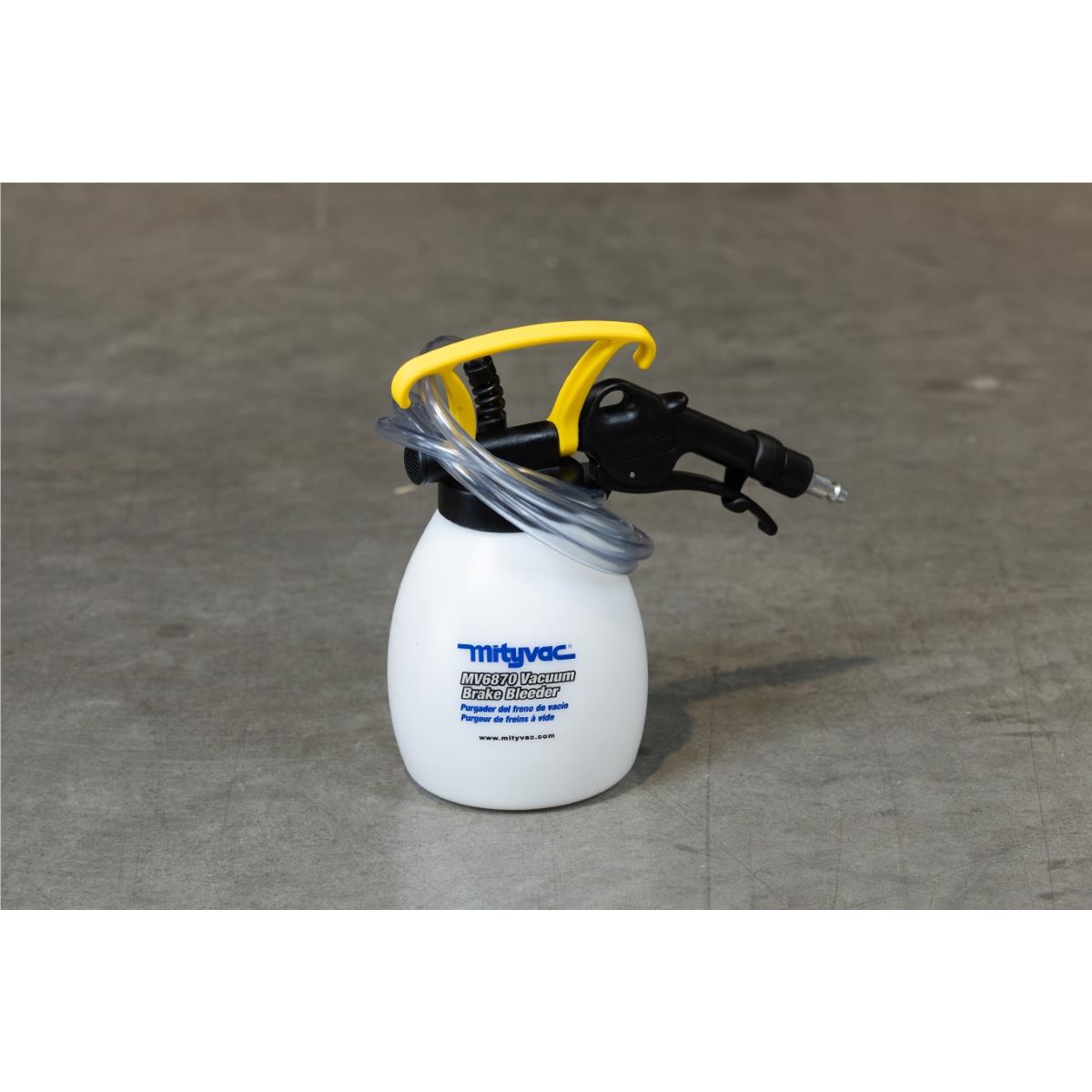

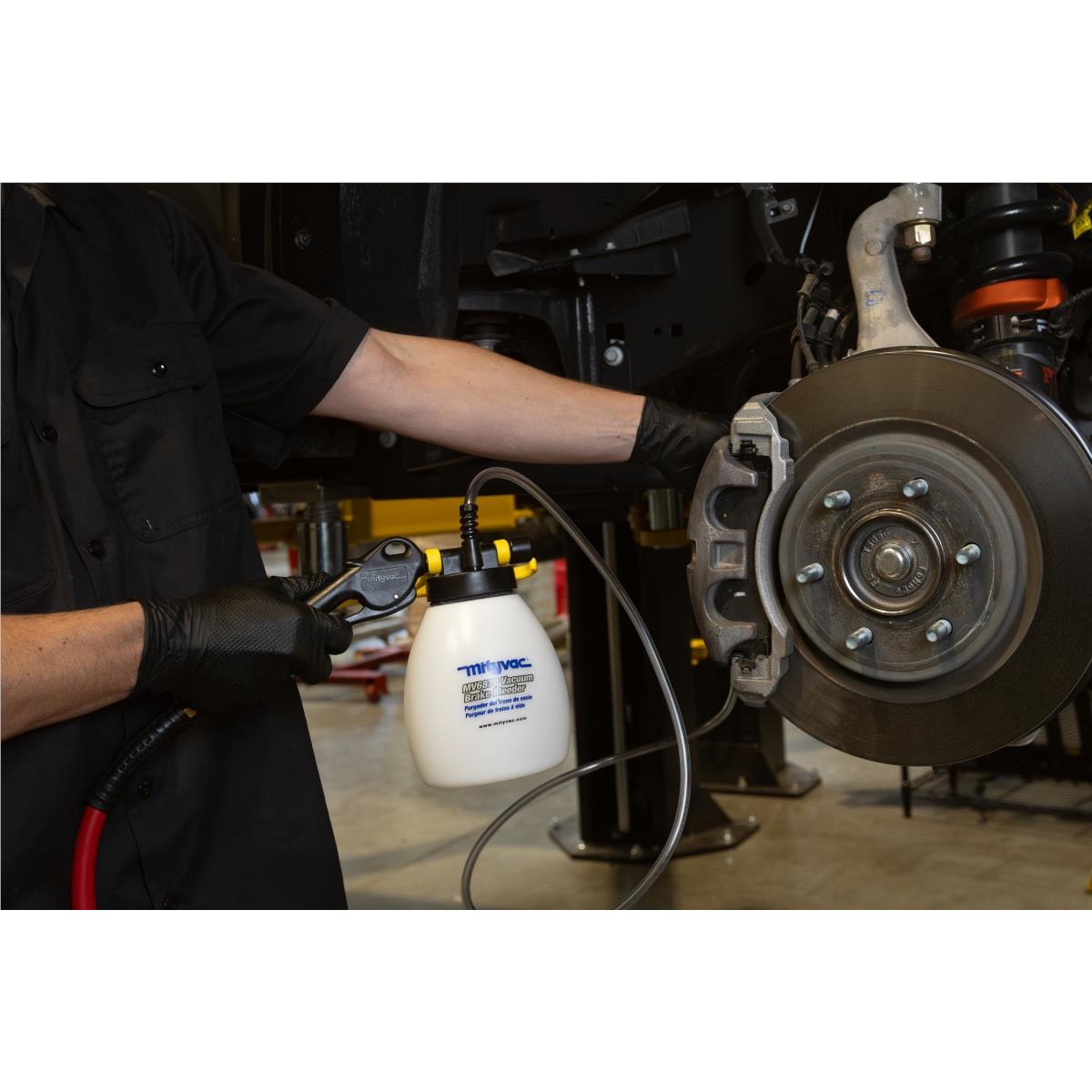

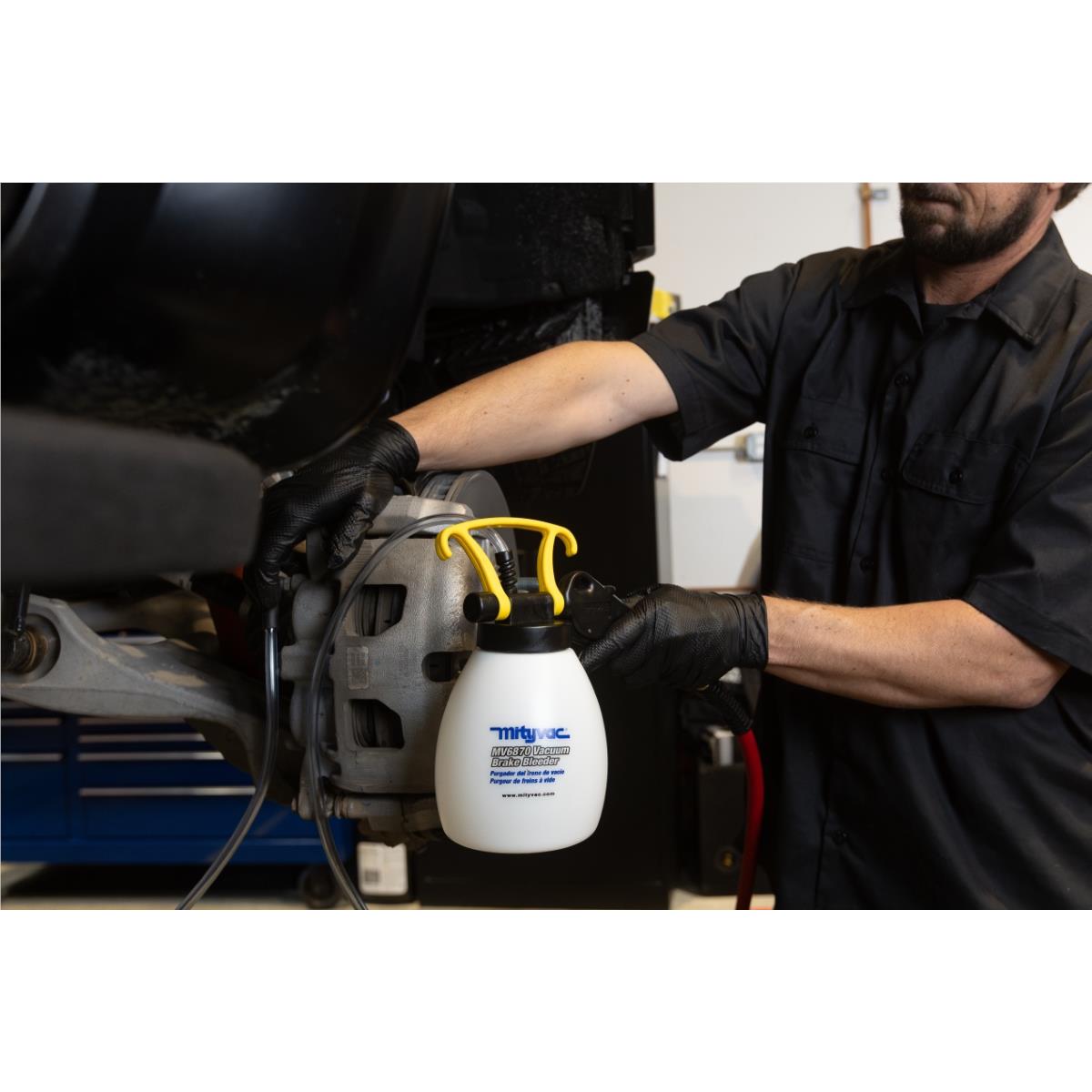

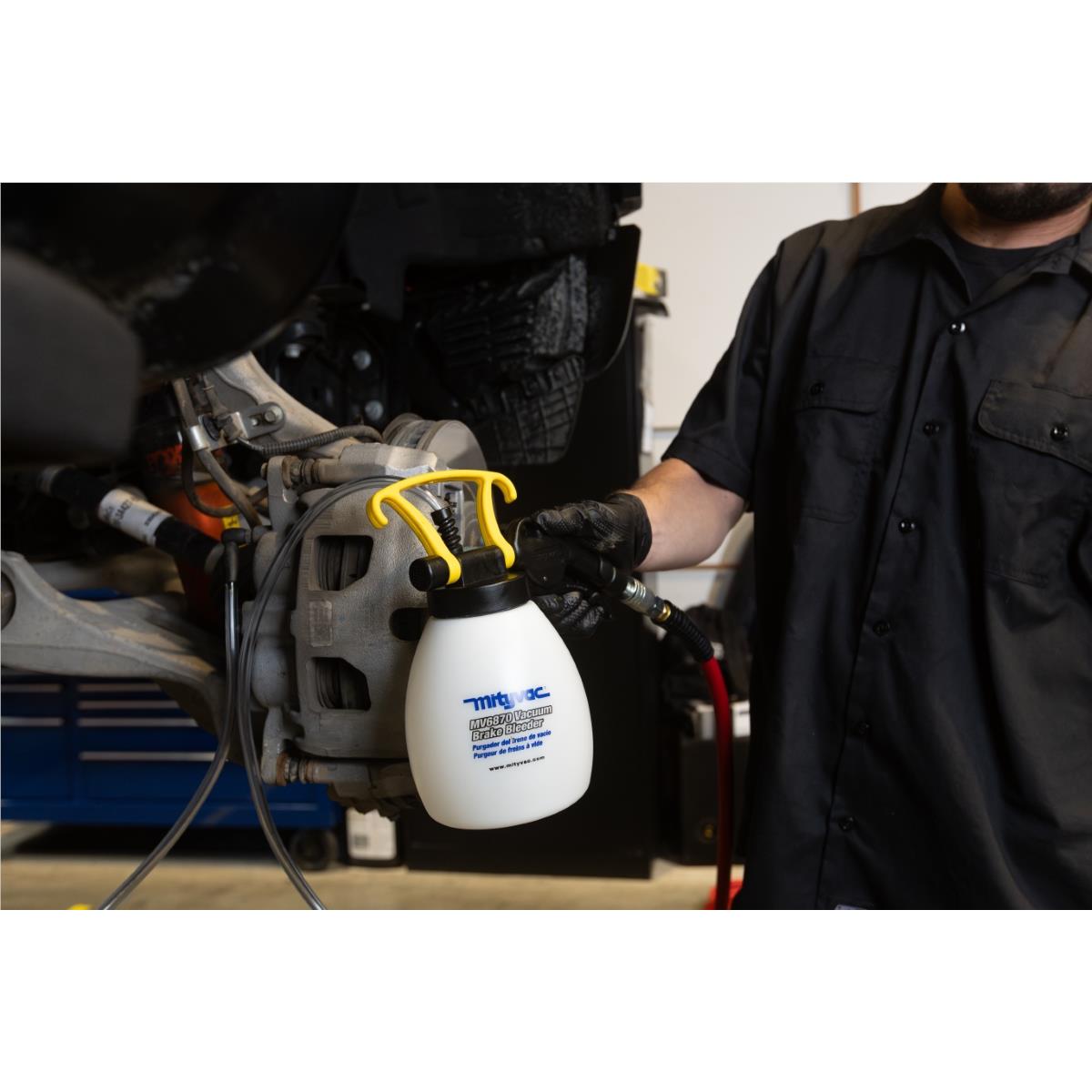

Mityvacs MV6870 offers high quality and performance in a robust compact design. It features a 1.3 qt. reservoir and powerful compressed-air-operated venturi that quickly draws out fluid and air from hydraulic brake and clutch systems. With the MV6870, one person can perform quick, clean vacuum brake and clutch bleeding.
Specifications
- Bleeder reservoir capacity: 1.3 qt. (1.2 l)
- Working pressure: 60-150 psi (4.1-10.3 bar)
- Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
- Air consumption @ 90 psi (6.2 bar): 7.3 cfm (3.4 l/s)
- Flow rate @ 60 psi (4.1 bar): 22 oz/min (650 ml/min)
- Flow rate @ 90 psi (6.2 bar): 37 oz/min (1095 ml/min)
- Flow rate @ 150 psi (10.3 bar): 32 oz/min (945 ml/min)
- Inlet thread size: 1/4 in. NPT
- Packaged weight: 1.7 lbs. (0.77 kg)
- Size (wide x deep x tall): 11 x 5.5 x 9 in. (280 x 140 x 230 mm)

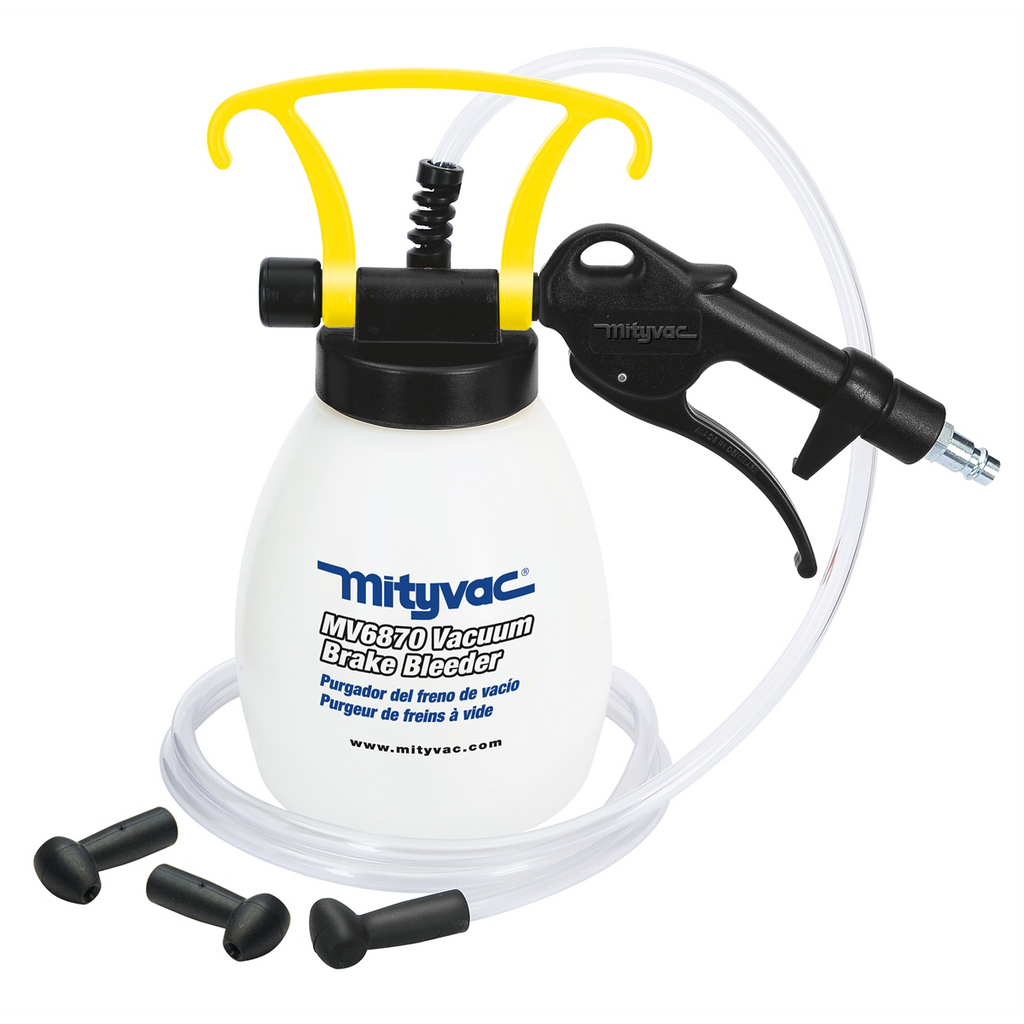

Includes
- 1.3 qt. (1.2 l) fluid reservoir
- Reservoir lid with integrated venturi vacuum and muffler
- 4 ft. (1.2 m) bleed hose with molded support
- 2 bleed screw adapter replacements
- Hanging hook
- User manual (English/French/Spanish/German)
