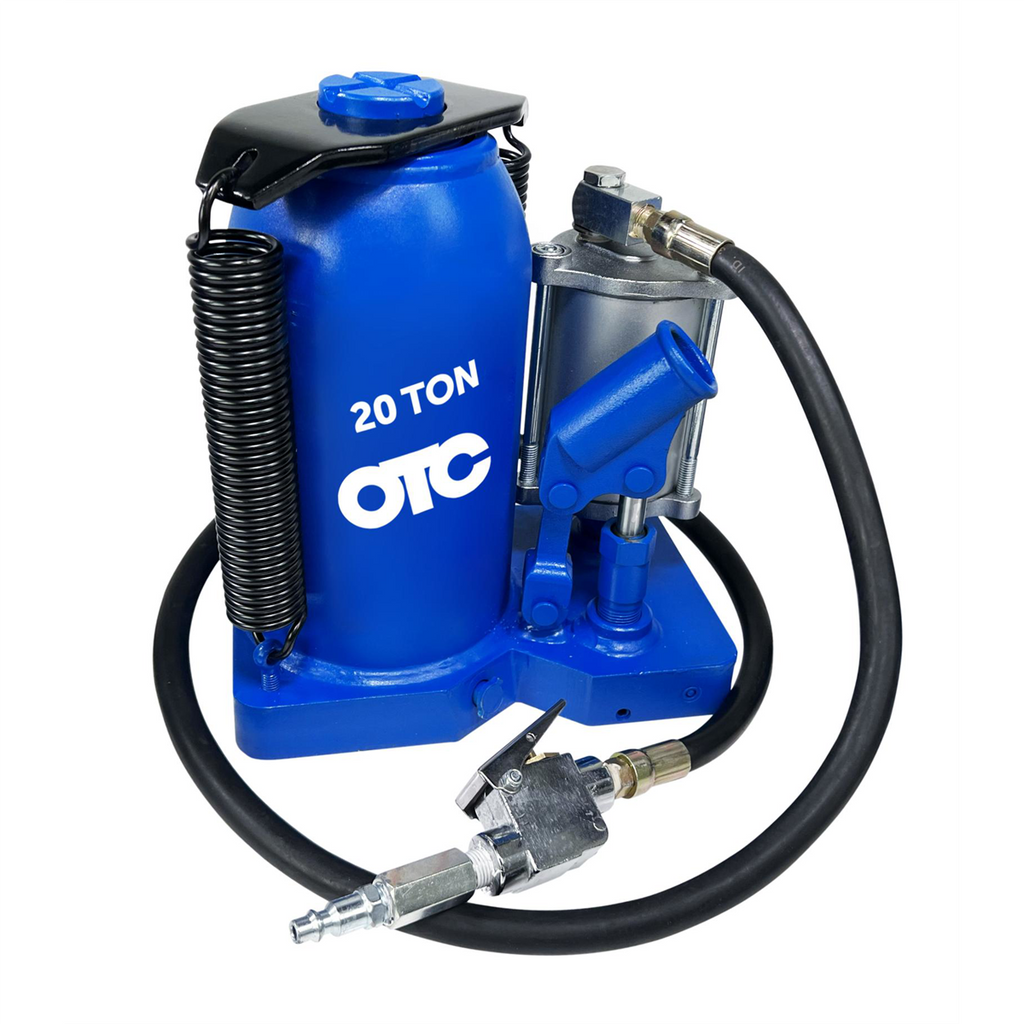

Features and Benefits:
- Forged base and cylinder ensures strength and eliminates leaks
- Chromed pump piston and ram increase rust resistance and helps extend service life
- Jack can be operated manually or with shop air. Minimum air pressure required is 100 PSI to move ram and lift objects.
- Limited lifetime warranty
- Capacity (Tons): 20
- Air pressure: 80‐120 PSI
- Stroke: 5-7/8”
- Min height, retracted: 9-7/16”
- Screw extension length: 2-5/16”
- Max height w/ screw extension: 17-11/16”
- Pumps to extend piston one inch: 28Saddle dia.: 2-1/8”
- Base size: 8-1/32” x 7-1/16”
- Carry handle: Yes
- Weight: 19.5 lbs
- Recommended stands: OTCS020 , OTCS022
Compact, heavy-duty bottle jacks are ideal for the trucking and construction industries, and more. Bottle jacks can be used in the shop, roadside, job site, and anywhere reliable lifting power is needed.A forged base and cylinder ensures strength and eliminates leaks. Chromed pump piston and ram increase rust resistance and helps extend service life. The inline design increases ease of use for both positioning and lifting.A built-in extension screw on the ram gives added height when needed, and helps to meet working surface faster.All OTC bottle jacks meet or exceed the newest ASME PASE-2019 safety standards for portable automotive service equipment. This includes a built-in safety valve to prevent overloading, and a stable base to prevent tipping if loaded off-center. Jack can be operated manually or with shop air. Minimum air pressure required is 100 PSI to move ram and lift objects.
